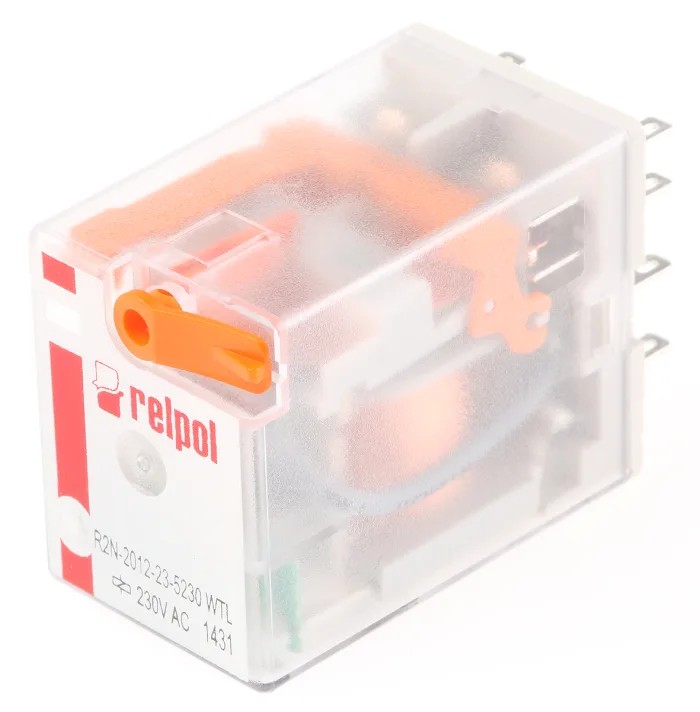

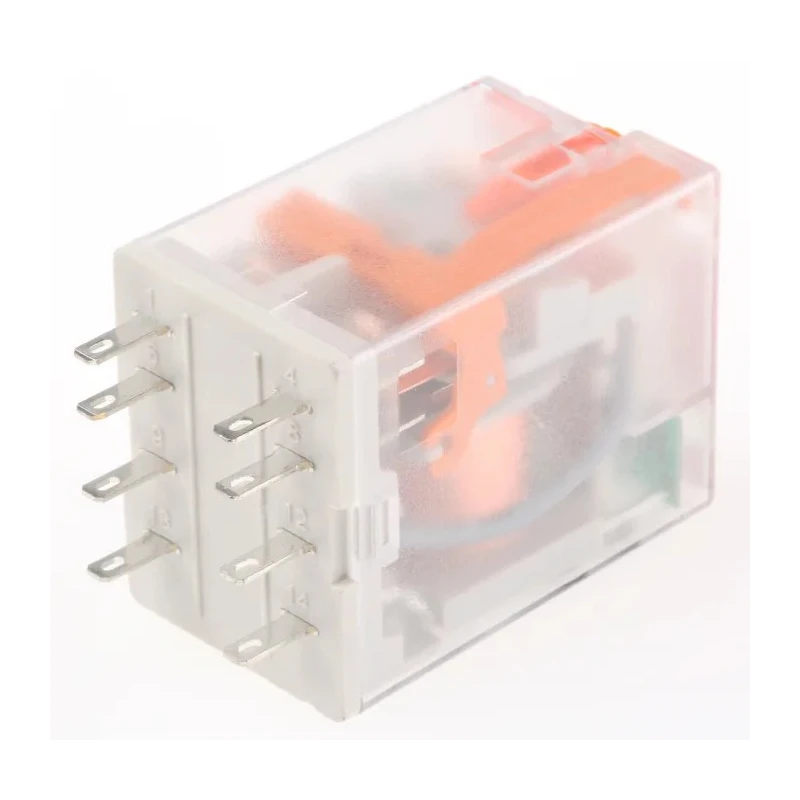

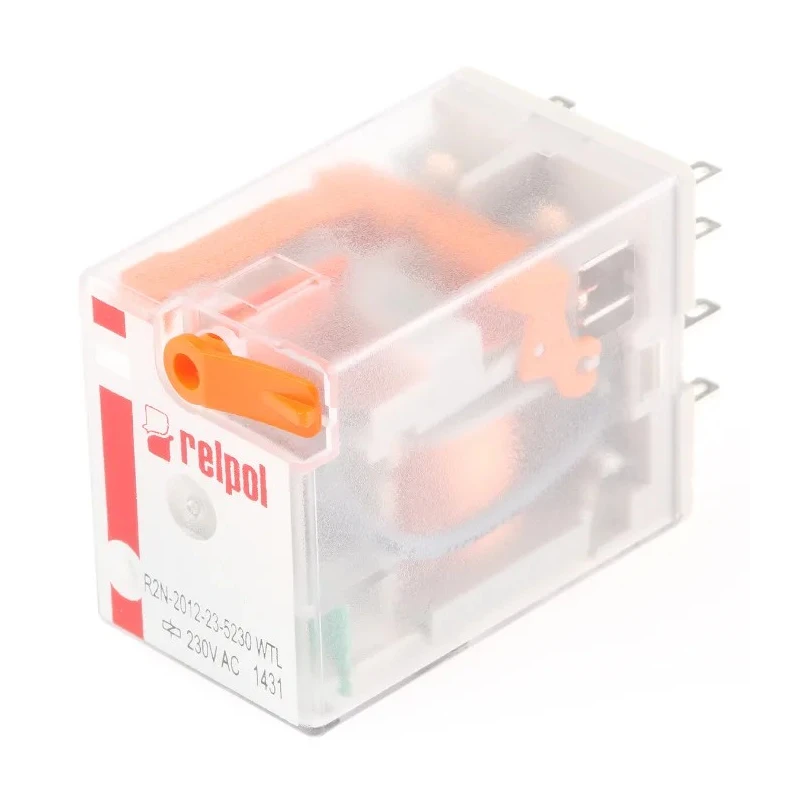

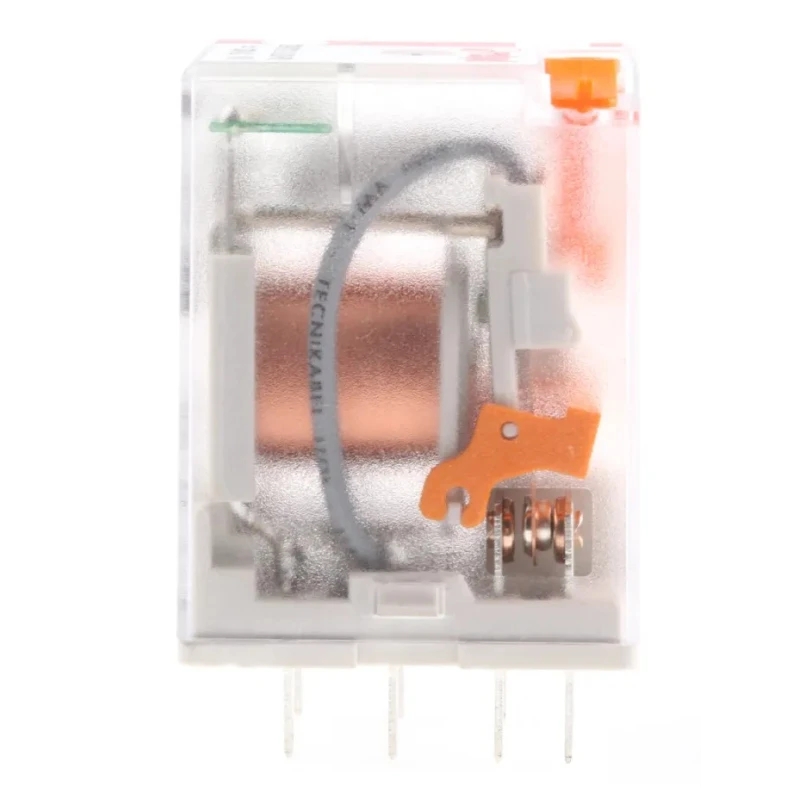

Relpol Surface Power Relay 230V Coil 12A Switching Current DPDT Plug-In Terminal R2N-2012-23-5230-WTL

Relpol R2N-2012-23-5230-WTL is a high-quality surface power relay with a 230V coil voltage and a 12A switching current designed for reliable electrical control and automation applications. This miniature relay features a DPDT (Double Pole Double Throw) contact configuration and is ideal for industrial use requiring precise switching performance.

The relay supports surface mounting and uses plug-in terminals to facilitate easy installation and maintenance. Its compact footprint with dimensions of 27.5mm in length, 21.2mm in width, and 35.6mm in height makes it suitable for space-constrained environments.

This relay operates efficiently within a temperature range of -40°C to +55°C, allowing it to function in diverse industrial and environmental conditions. The coil power consumption is low at 1.6W, with a coil resistance of 16.1 kΩ, contributing to energy efficiency in control circuits.

Gold plated contacts ensure excellent conductivity and durability, minimizing wear and providing long operational life. The relay supports switching voltages up to 24V DC and 440V AC, and switching power up to 1.5W, offering versatility across different electrical loads.

Certified to meet CSA, UL, and UR standards, this relay guarantees reliability and safety compliance for industrial and commercial electrical installations. The R2N series miniature relays from Relpol are cadmium-free, environmentally friendly, and include features such as mechanical indicators and lockable test buttons for enhanced functionality.

Designed for surface mounting with plug-in terminal type. Operates within a temperature range from -40°C to +55°C. Gold plated contacts ensure high durability and low contact resistance. Miniature industrial relay suitable for various automation and electrical control applications.

Complies with CSA, UL, and UR standards for safety and performance. Low coil power consumption at 1.6W with coil resistance of 16.1 kΩ. Compact dimensions: length 27.5mm, width 21.2mm, and height 35.6mm. Switching voltages of 24V DC and up to 440V AC, switching power up to 1.5W.

This power relay is extensively used in industrial, laboratory, automation, HVAC, manufacturing, and electrical power control systems. It offers a robust solution for switching high currents and voltages with great reliability and precision.
