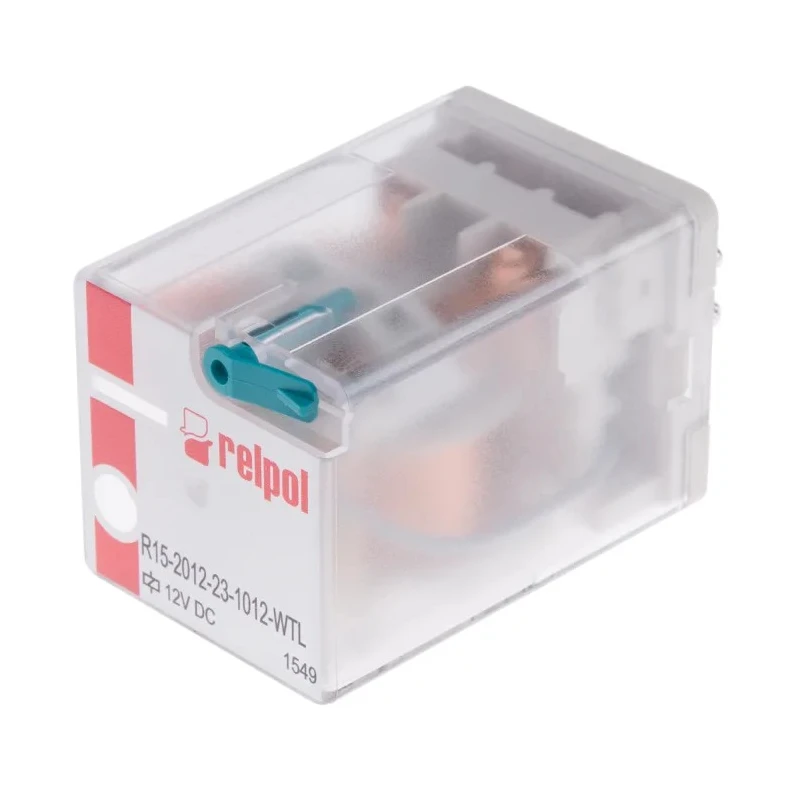

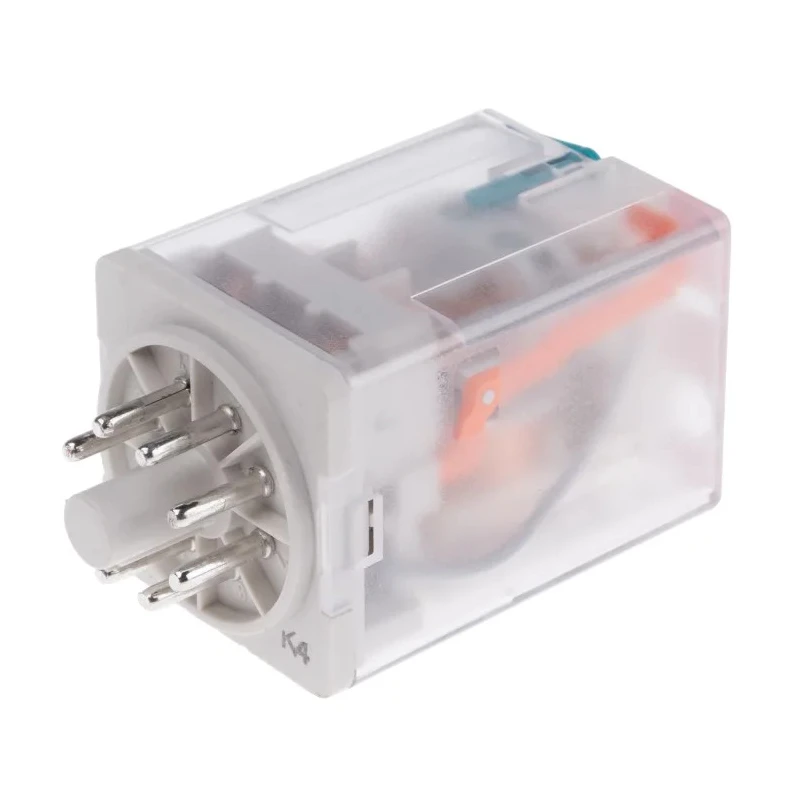

Relpol Power Relay 12V dc Coil 10A Switching Current DPDT Plug-In Terminal R15-2012-23-1012-WTL
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | Relpol |
| Height | 35mm |
| Length | 35mm |
| Model | R15-2012-23-1012-WTL |
| Width | 54.4mm |
| Contact Material | Silver Alloy |
| Series | R15 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Standards/Approvals | UR, UL, CSA |
| Coil Resistance | 110Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 440V |
| Coil Power | 1.5W |
| Switching Power | 1.5W |
Key Features
- The relay is designed with a 12V dc coil voltage suitable for precise control circuits.
- Double Pole Double Throw (DPDT) contact configuration enables versatile switching applications.
- Plug-in terminal type facilitates easy mounting and replacement in plug-in sockets.
- Capable of switching up to 10A current ensuring reliable power handling.
- Compact miniature industrial relay with dimensions of 54.4mm width, 35mm height, and 35mm length.
- Operates effectively within a temperature range of -40°C to 70°C for robust performance.
- Silver alloy contact material ensures durability and superior electrical conductivity.
- Coil resistance rated at 110Ω with coil power rating of 1.5W for energy-efficient operation.
Product Description
Relpol R15-2012-23-1012-WTL Power Relay offers a highly reliable switching solution with a 12V DC coil voltage and a contact configuration of DPDT (Double Pole Double Throw). This miniature industrial relay is designed for general applications requiring robust and precise switching within industrial, automation, and control systems.
The relay supports a switching current up to 10A, making it suitable for a variety of power control tasks. Its plug-in terminal type design ensures ease of installation and maintenance in industrial socket mounts equipped with the WT features, including a mechanical indicator and lockable front test button.
With compact dimensions of 54.4mm in width, 35mm in height, and 35mm in length, this relay fits well in constrained spaces while maintaining high performance. It operates reliably within the temperature range of -40°C to 70°C, ensuring durability in harsh operating environments.
The contact material is made of silver alloy, providing excellent conductivity and longevity. The coil resistance is 110Ω with low coil power consumption of 1.5W, promoting efficient energy usage. It meets multiple standards including UR, UL, and CSA, confirming its safety and quality.
Manufactured in Poland, this relay complies with RoHS regulations, respecting environmental standards by avoiding hazardous materials. The R15 series relays by Relpol include features such as cadmium-free contacts and are compatible with various accessories like retainer clips and connection strips for flexible installation options.
The relay is integral to industrial automation, electrical control panels, and signal conditioning systems. Applicable in manufacturing plants, HVAC controls, power distribution units, and machinery control circuits. Plug-in design ensures quick replacement and system maintenance without soldering.
Its double-pole double-throw configuration supports complex switching requirements. Compliant with international safety approvals suitable for global deployment. Explore more Power Relay products from Relpol and related industrial electrical components on EnvMart for dependable quality and innovative designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC.
It is capable of switching up to 10A current.
The relay has dimensions of 54.4mm in width, 35mm in height, and 35mm in length.
This model features a Double Pole Double Throw (DPDT) contact configuration.
The coil resistance is rated at 110Ω.
It operates effectively within a temperature range of -40°C to 70°C.
The contact material is made of silver alloy, providing excellent conductivity.
It meets multiple standards including UR, UL, and CSA, confirming its safety and quality.
The coil power rating is 1.5W, promoting energy-efficient operation.
Yes, it features a plug-in terminal type design for easy mounting and replacement.
This relay is integral to industrial automation, electrical control panels, and signal conditioning systems.
It is manufactured in Poland and complies with RoHS regulations.
