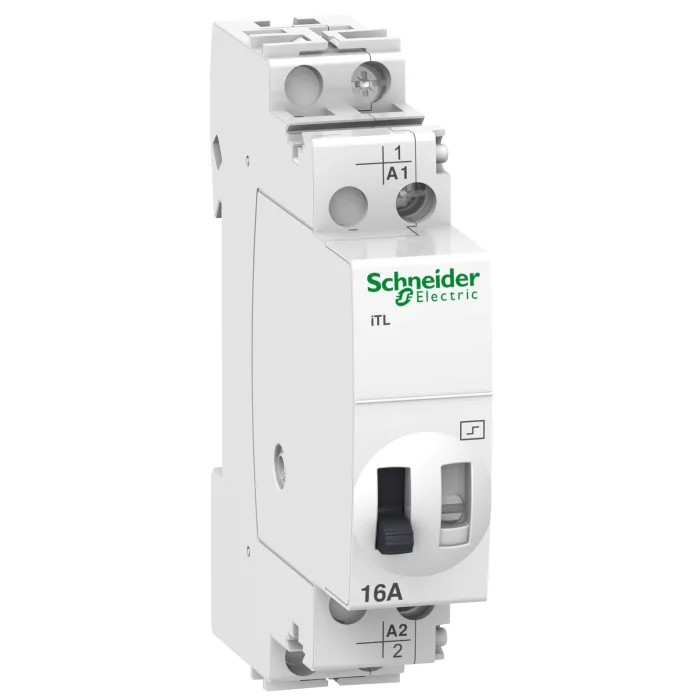

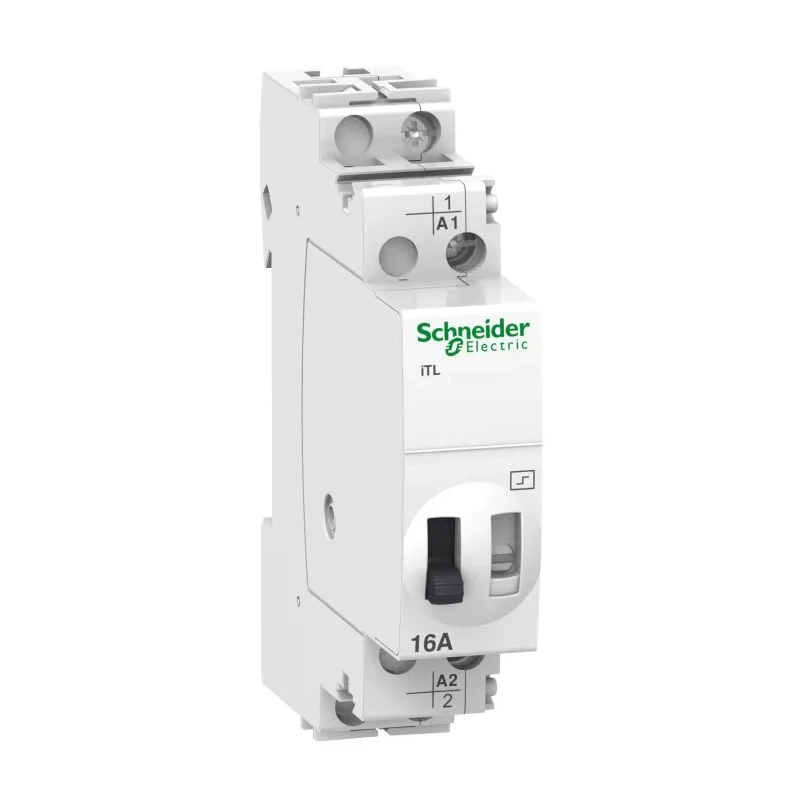

Schneider Electric DIN Rail Power Relay, 24V AC/DC, 48V AC/DC Coil, 16A Switching Current, SPST A9C30211

Schneider Electric A9C30211 DIN Rail Power Relay offers efficient and reliable electrical switching capabilities with coil voltages of 24V and 48V AC/DC and a switching current capacity of 16A. Designed for industrial automation and electrical control panels, this SPST relay ensures precise operation by switching electrical circuits such as lighting systems and other controlled loads.

The relay features a single-pole single-throw contact configuration suitable for on/off switching functions. It is engineered for DIN Rail mounting, providing easy installation and secure positioning within electrical distribution boards and industrial enclosures.

With dimensions compactly sized at 86mm length, 18mm width, and 71mm height, it optimizes panel space usage without compromising performance. The switching voltage rating of 250V accommodates common industrial and commercial electrical supply levels.

This relay is part of the Acti9 iTL series of impulse relays, which are designed to operate using pushbutton control impulses, offering two stable mechanical positions for reliable toggling of lighting circuits composed of incandescent, low-voltage halogen, fluorescent, and discharge lamps. The design ensures zero energy consumption when in the stable state, contributing to energy savings in installation environments.

Schneider Electric’s product complies with multiple international standards and environmental directives including EN 15804:2012+A1:2013, RoHS Directive 2002/95/EC, ISO 14025:2010, and RoHS Directive 2011/65/EU, reflecting its suitability for sustainable building installations and regulatory compliance.

The relay’s single pole, single throw (SPST) contact configuration enables simple and reliable switching operations. Supports coil voltages of 24V and 48V AC/DC to match diverse control voltages. Mechanical mounting via standard DIN Rail to facilitate integration in electrical panels.

Rated for switching voltage of up to 250V and switching current of 16A for robust control. Compact form factor: 86 mm length, 18 mm width, 71 mm height allows efficient space utilization. Acts as an impulse relay within pushbutton lighting control systems with zero standby energy consumption.

Complies with EN 15804 and RoHS directives promoting eco-friendly applications.

This power relay is widely applicable in industrial automation, commercial electrical distribution, building lighting control, HVAC systems, and other control applications requiring reliable switching. The DIN Rail mounting combined with impulse relays technology makes it ideal for modern modular panels and energy-efficient system designs.
