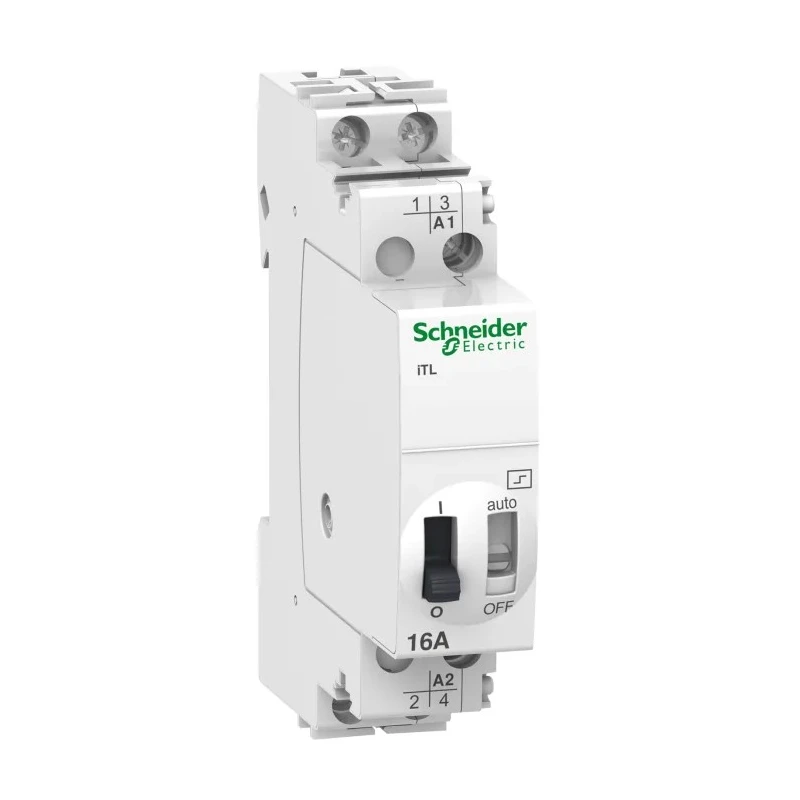

Schneider Electric DIN Rail Power Relay, 12V AC/DC, 24V AC/DC Coil, 16A Switching Current, DPST A9C30112

Schneider Electric A9C30112 DIN Rail Power Relay is a robust and efficient device designed for industrial and commercial electrical switching applications. Featuring a coil voltage compatible with both 12V and 24V AC/DC, this DPST relay can reliably handle up to 16 amperes of switching current at a switching voltage of 250V.

This relay is part of the Acti9 iTL series impulse relays, ideal for controlling lighting circuits consisting of incandescent, low-voltage halogen, fluorescent, and discharge lamps. The relay operates through impulses received from pushbuttons, maintaining two stable mechanical positions, thus allowing it to switch on or off with subsequent impulses.

Specifically designed for easy integration, it mounts conveniently on DIN rails, making it suitable for compact panel assemblies. Its zero energy consumption coil makes it an energy-efficient choice, contributing to lower power usage in control circuits.

Meeting strict environmental and safety standards including RoHS Directive (European Directive 2011/65/EU and 2002/95/EC) and ISO14001 certification, the relay aligns with sustainable manufacturing and operational principles.

Compatible with DIN rail mounting for straightforward installation. Switching current rating of 16A supports a wide range of load requirements. Impulse relay mechanism enables control from unlimited pushbuttons. Zero energy consumption coil enhances energy efficiency.

Compact size with 86mm length, 71mm height, and 18mm width. Adheres to RoHS and ISO14001 standards for environmental compliance. Suitable for industrial, laboratory, manufacturing, commercial, and electrical automation applications.

Set contains 1 unit of Schneider Electric DIN Rail Power Relay model A9C30112. For further details and complementary electrical components, explore EnvMart’s extensive Power Relay and DIN rail component categories.
