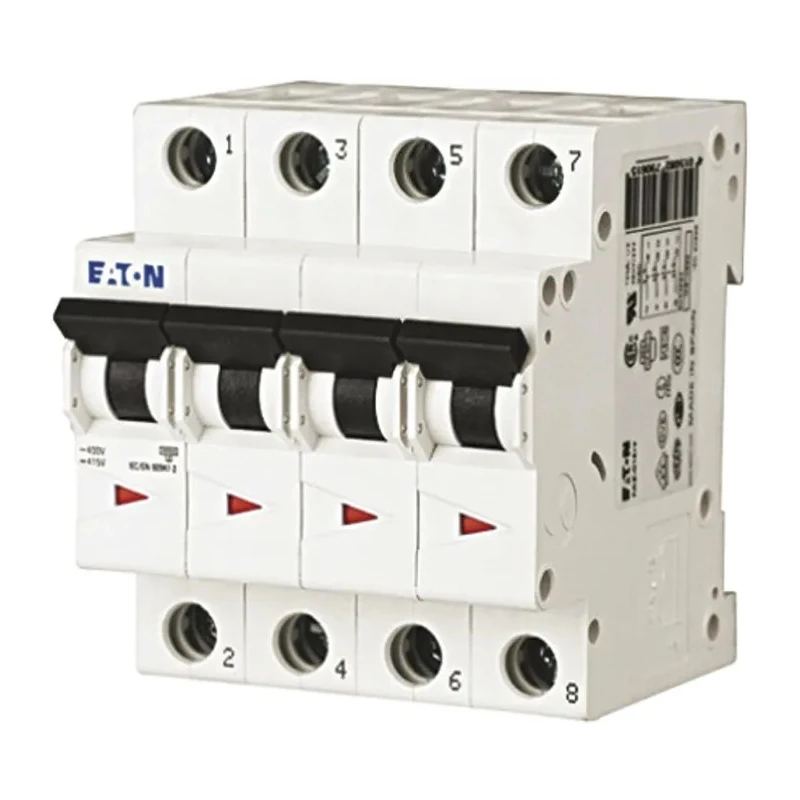

Eaton xEffect Miniature Circuit Breaker 4-Pole 16A Type D 400V ac 6 kA Breaking Capacity 168090 FAZ6-D16/4
Specifications
| Country of Origin | Romania |
|---|---|
| Range | xEffect |
| Brand | Eaton |
| Model | 168090 FAZ6-D16/4 |
| Depth | 62mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 16A |
| Series | xEffect |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 4 |
| Standards/Approvals | EN 60898, IEC |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type D |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
Key Features
- Provides effective protection against overload and short circuits in electrical circuits.
- Features a high breaking capacity of 6 kA ensuring safety under fault conditions.
- Designed for DIN rail mounting with screw terminal connections.
- Compact dimensions with 17.5 mm width and 62 mm depth for easy installation.
- Instantaneous break time with a toggle switch reset actuator for quick response and manual control.
- IP20 rating providing protection against solid objects over 12mm but no protection against liquids.
- Compliance with EN 60898 and IEC standards ensuring international safety and performance.
- Manufactured in Romania with Eaton's xEffect series quality assurance.
Product Description
Eaton 168090 FAZ6-D16/4 miniature circuit breaker is a precision-engineered device tailored for electrical protection in residential, commercial, and industrial AC power distribution systems. This 4-pole MCB supports a rated current of 16 amperes and is built to operate safely at 400V AC voltage. Its Type D tripping characteristics make it particularly suitable for protecting circuits with high inrush currents such as those with motors and transformers.
The device boasts a breaking capacity of 6 kA, which safeguards electrical installations by interrupting fault currents instantly, preventing damage and fire hazards. The compact design, with width 17.5 mm and depth 62 mm, ensures seamless mounting on standard DIN rails, utilizing secure screw terminals for stable electrical connections.
Equipped with a toggle switch reset actuator, the breaker allows for easy manual resetting post fault clearance, enhancing user convenience. The IP20 ingress protection rating assures protection from touch and large foreign objects, fitting indoor electrical panels and control boards.
Manufactured under stringent quality standards, this MCB complies with EN 60898 and IEC certifications, assuring reliable performance and conformity with international norms. Eaton’s xEffect series represents a robust and modern range of circuit protection devices, reflecting advanced technology and durability.
Effective electrical circuit protection against overload and short circuits. Suitable for industrial, commercial, and residential electrical installations. Compact size eases panel integration in constrained spaces. Reliable operation with instantaneous trip and manual reset switch.
Compliant with international IEC and EN safety standards. High breaking capacity to handle fault conditions safely. Mounts easily on DIN rails with secure screw terminals. IP20 protection suitable for indoor environments.
This Miniature Circuit Breaker is ideal for use in electrical panels, machine protection, HVAC systems, and general power distribution requiring reliable short circuit and overload protection. Explore the Eaton product range at EnvMart for comprehensive circuit protection solutions tailored to your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this model is 6 kA, which ensures it can effectively interrupt fault currents to prevent damage and fire hazards.
This miniature circuit breaker has a rated current of 16A, suitable for various electrical applications.
It operates safely at a rated AC voltage of 400V.
This model features 4 poles, making it suitable for multi-phase applications.
The dimensions are 17.5 mm in width and 62 mm in depth, allowing for compact installation.
It is designed for DIN rail mounting, utilizing secure screw terminals for connections.
This miniature circuit breaker has Type D tripping characteristics, suitable for circuits with high inrush currents.
It features a toggle switch reset actuator, which allows for easy manual resetting after a fault.
It has an IP20 rating, providing protection against solid objects larger than 12mm, but no protection against liquids.
It complies with EN 60898 and IEC standards, ensuring reliable performance and safety.
This circuit breaker is manufactured in Romania, reflecting Eaton's quality assurance standards.
It is suitable for use in electrical panels, machine protection, HVAC systems, and general power distribution requiring reliable overload and short circuit protection.
