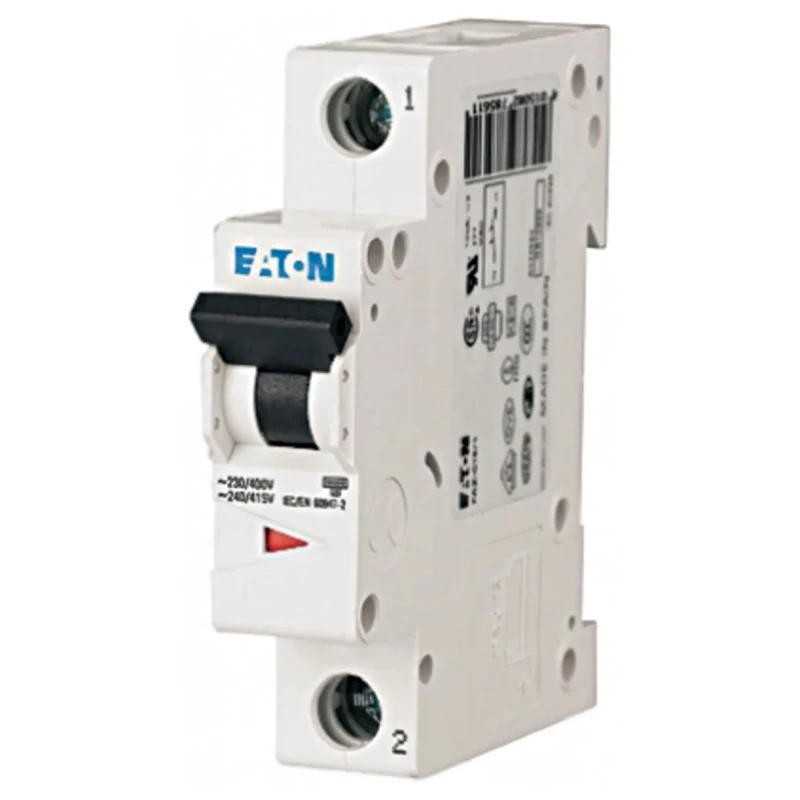

Eaton xEffect FAZ / FAZ6 Miniature Circuit Breaker, 1-Pole, 25A, Type B, 400V ac, 6 kA Breaking Capacity FAZ6

Eaton FAZ6 Miniature Circuit Breaker (MCB) model FAZ6 is a 1-pole device rated for 25 amperes and Type B tripping characteristic, operating at 400V AC with a breaking capacity of 6 kA. This thermal magnetic MCB is designed to protect electrical circuits in industrial, commercial, and residential installations by providing reliable overload and short circuit protection.

The FAZ6 MCB features a compact and robust design with a height of 80mm, width of 17.5mm, and depth of 62mm, allowing easy DIN rail mounting. Its twin-purpose terminal design enables flexible wiring options for enhanced installation ease. The device is IP20 rated, ensuring protection against accidental contact with live parts.

This circuit breaker complies with notable international standards such as IEC/EN 60947-2, IEC/EN 60898, UL 1077, CSA, CE, and VDE, ensuring safety and quality assurance for diverse electrical applications.

Thermal magnetic tripping mechanism offers precise and dependable circuit protection, responding effectively to different overcurrent conditions. The device's breaking capacity of 6 kA provides assurance of safe disconnection during fault occurrences, minimizing risks to electrical systems and personnel.

Eaton’s xEffect series FAZ / FAZ6 is an updated version of the previous PLS6 MCB with certification to modern standards, making it suitable for use in various sectors including industrial manufacturing, building automation, electrical panels, and HVAC systems.

Compact 1-pole design suitable for residential and commercial electrical protection. Rated current of 25 amperes ensures protection against overloads and short circuits. Type B tripping characteristic provides fast response to surge currents.

Designed to operate at a rated voltage of 400V AC for industrial applications. 6 kiloampere breaking capacity guarantees safe interruption of fault currents. Thermal magnetic tripping mechanism offers dependable performance under various conditions.

Easy DIN rail mounting for quick installation and maintenance. Durable twin-purpose terminals support flexible wiring options. Complies with international safety standards including IEC/EN 60947-2 and IEC/EN 60898. Compact dimensions of 80mm height, 62mm depth, and 17.5mm width.
