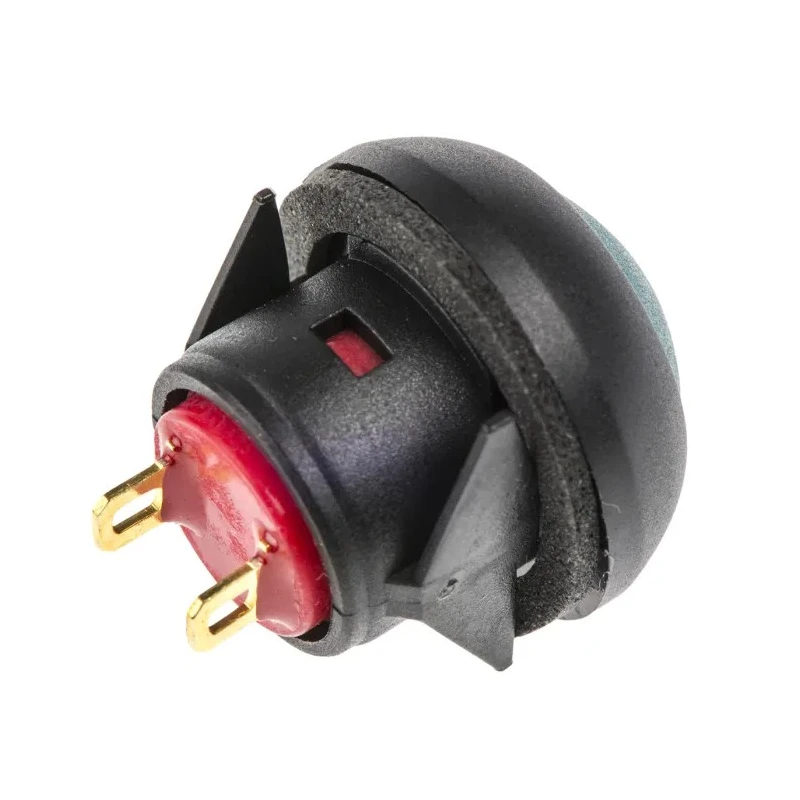

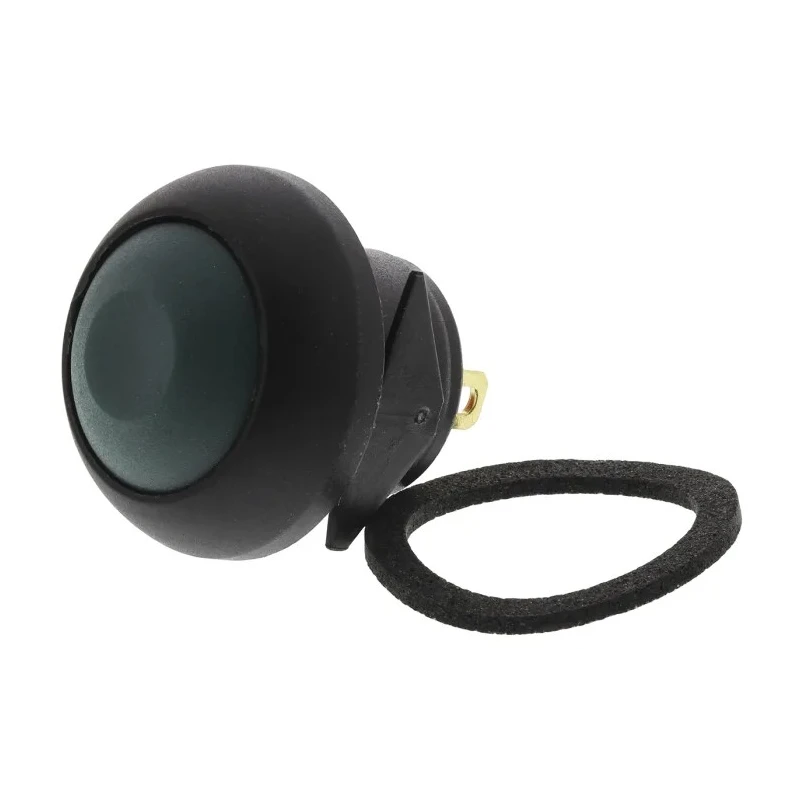

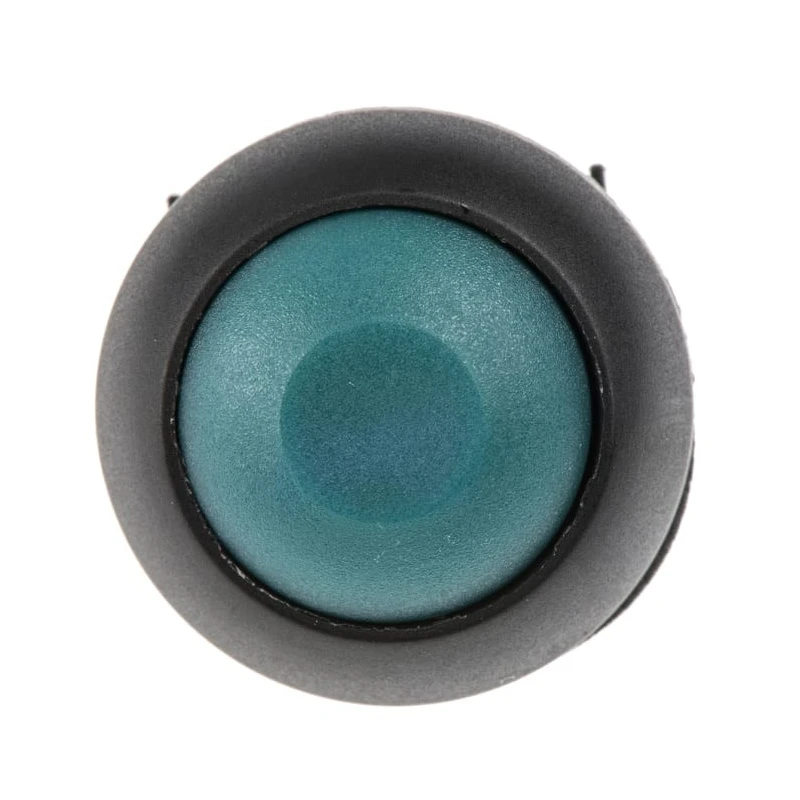

RS PRO Miniature Push Button Switch Momentary Panel Mount SPST Green LED IP67 50V DC 32V AC 734-6700
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 734-6700 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder |
| Standards/Approvals | Lead-Free, RoHS |
| LED Colour | Green |
| Switch Operation | Momentary |
| Actuator Colour | Green |
| Contact DC Voltage | 50V dc |
| Actuator Style | Cap |
| Switch Contact Current | 400mA |
| Operating Force | 2N-5N |
| Mechanical Life | 1000000 cycles |
| Contact AC Voltage | 32V ac |
| Contact Bounce | 10 ms |
| Soldering | 350°C maximum for 5 seconds |
Key Features
- The switch features a 13.6 mm panel cutout for installation.
- It is designed with a high-quality polyamide 6/6 cap and gold over silver plated contacts.
- The switch is IP67 rated, providing excellent protection against dust and water ingress.
- Operating force ranges between 2N and 5N with a contact bounce of 10 ms.
- It has a mechanical life expectancy of 1,000,000 cycles for durable operation.
- Soldering temperature is rated up to 350°C maximum for 5 seconds.
- This switch is suitable for use in test equipment, telecommunications, networking, and handheld appliances.
- The maximum operating temperature is 85°C, ensuring reliable performance in various industrial environments.
Product Description
RS PRO 734-6700 is a miniature push button switch designed for momentary operation with a SPST contact configuration and green LED illumination. Its 13.6 mm panel cutout and robust polyamide 6/6 cap make it ideal for panel mounting in industrial and laboratory applications.
This switch operates at 50 V DC and 32 V AC with a contact current of 400 mA, and it features gold over silver plated contacts for reliable electrical performance. IP67 rating protects against dust and water ingress, enabling use in demanding environments. The mechanical life of 1,000,000 cycles ensures long-term durability.
The operating force is between 2N and 5N with a brief contact bounce of 10 ms. The switch can withstand soldering temperatures up to 350°C for 5 seconds, facilitating secure PCB connections. The maximum operating temperature of 85°C supports operation in various thermal conditions.
Typical industrial and commercial applications include test equipment, telecommunications, networking hardware, and handheld devices, where reliable momentary control is needed. The device’s compact form and panel mount suitability make installation efficient and space-saving.
The switch features a 13.6 mm panel cutout for installation. High-quality polyamide 6/6 cap and gold over silver plated contacts ensure durability. IP67 rating for excellent dust and water ingress protection. Operating force between 2N and 5N ensures tactile feedback.
Mechanical life expectancy of 1,000,000 cycles for long-term reliability. Soldering temperature maximum of 350°C for secure connections. Applications include test equipment, telecommunications, networking, and handheld appliances.
RS PRO brand products are trusted worldwide for their quality and industrial-grade performance. Explore more RS PRO Push Button Switches and related components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
This switch requires a panel cutout size of 13.6 mm for installation.
It features a Single Pole Single Throw (SPST) contact configuration.
The mechanical life expectancy of this switch is 1,000,000 cycles.
The operating force for this model ranges between 2N and 5N.
It supports a contact DC voltage of 50V and a contact AC voltage of 32V.
This model uses solder terminals for connection.
The switch has an IP67 rating, providing excellent protection against dust and water ingress.
The contact bounce time for this model is 10 ms.
It features a high-quality polyamide 6/6 cap and gold over silver plated contacts.
This switch is suitable for use in test equipment, telecommunications, networking, and handheld appliances.
The maximum soldering temperature for this switch is rated at 350°C for 5 seconds.
