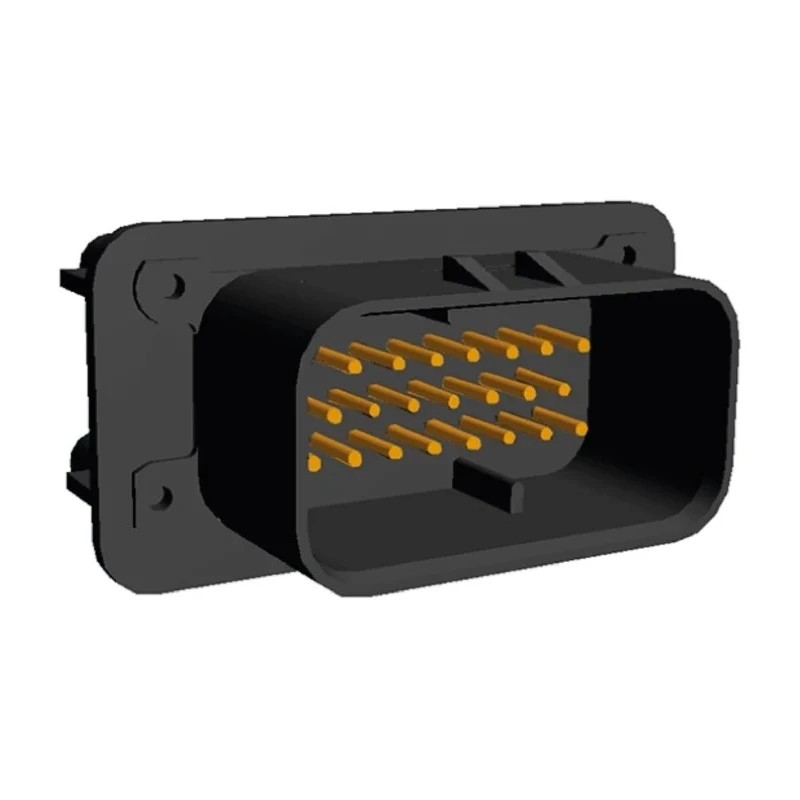

TE Connectivity Ampseal Automotive Connector Male Black Panel Mount 23 Way Solder Termination 1-776200-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Current | 17A |
| Height | 32.1mm |
| Depth | 34.3mm |
| IP Rating | IP6K9K |
| Width | 60.8mm |
| Gender | Male |
| Mount Type | Panel Mount |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | Ampseal |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | PCB Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 3 |
| Contact Plating | Gold |
| Number of Contacts | 23 |
Key Features
- This connector features a robust Fibreglass Reinforced Polybutylene Terephthalate housing for durability.
- It supports a current rating of 17A suitable for automotive electrical applications.
- Panel mount style with 3 rows and male gender contacts ensures secure and reliable connections.
- Gold plated brass contacts deliver excellent conductivity and corrosion resistance.
- Rated for IP6K9K ingress protection for protection against dust and high pressure water jets.
- Can operate reliably between temperatures of -40°C to 125°C for harsh environments.
- Compact dimensions measuring 60.8mm width, 32.1mm height, and 34.3mm depth.
- Designed as part of the Ampseal series, compatible with automotive PCB connectors.
Product Description
TE Connectivity model 1-776200-1 Ampseal automotive connector is a high-quality male panel mount connector with 23 solder termination contacts designed for demanding automotive electrical systems. The connector's Fibreglass Reinforced Polybutylene Terephthalate housing provides mechanical strength while ensuring durability under harsh operating conditions. Gold-plated brass contacts enhance electrical conductivity and resist corrosion, maintaining long-term performance.
Rated for a continuous current of 17A and an ingress protection class of IP6K9K, this connector is suitable for automotive and industrial applications requiring robust resistance to dust and water jet exposure. It operates effectively in extreme temperatures ranging from -40°C to 125°C, making it reliable for a wide range of environments.
The connector features 23 contacts arranged in 3 rows in a compact form factor measuring 60.8mm wide, 32.1mm high, and 34.3mm deep. Its panel mount design facilitates easy integration into automotive electrical assemblies while the male solder termination ensures secure electrical connections.
TE Connectivity's Ampseal series connectors are widely used in automotive manufacturing, industrial machinery, and electrical control applications, providing dependable interconnections in rugged environments. This product aligns with standard automotive electrical connector requirements.
This connector has a solder termination type for solid electrical connections. It includes 23 contacts arranged in 3 rows for versatile wiring schemes. The connector gender is male and designed for panel mount integration.
It is manufactured from durable fibreglass reinforced polybutylene terephthalate and brass with gold plating. Its ratings include IP6K9K ingress protection and an operating temperature range from -40°C to 125°C. The compact dimensions are optimized for automotive PCB connector applications.
Explore the full range of TE Connectivity Automotive Connectors at EnvMart for your electrical and electronics component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a current rating of 17A, making it suitable for automotive electrical applications.
It is rated for IP6K9K ingress protection, which provides resistance against dust and high pressure water jets.
This connector measures 60.8mm in width, 32.1mm in height, and 34.3mm in depth.
It can operate reliably between temperatures of -40°C to 125°C, suitable for harsh environments.
The housing is made from Fibreglass Reinforced Polybutylene Terephthalate, providing mechanical strength and durability.
This model features 23 contacts arranged in 3 rows, allowing for versatile wiring schemes.
It has a solder termination type, ensuring solid electrical connections.
Yes, it is designed for panel mount integration, facilitating easy installation into automotive electrical assemblies.
It is designed for automotive and industrial applications requiring robust electrical interconnections.
The contacts are made of brass and are gold plated to enhance electrical conductivity and resist corrosion.
This connector features a male gender, designed for secure and reliable connections.
This connector is manufactured in India.
