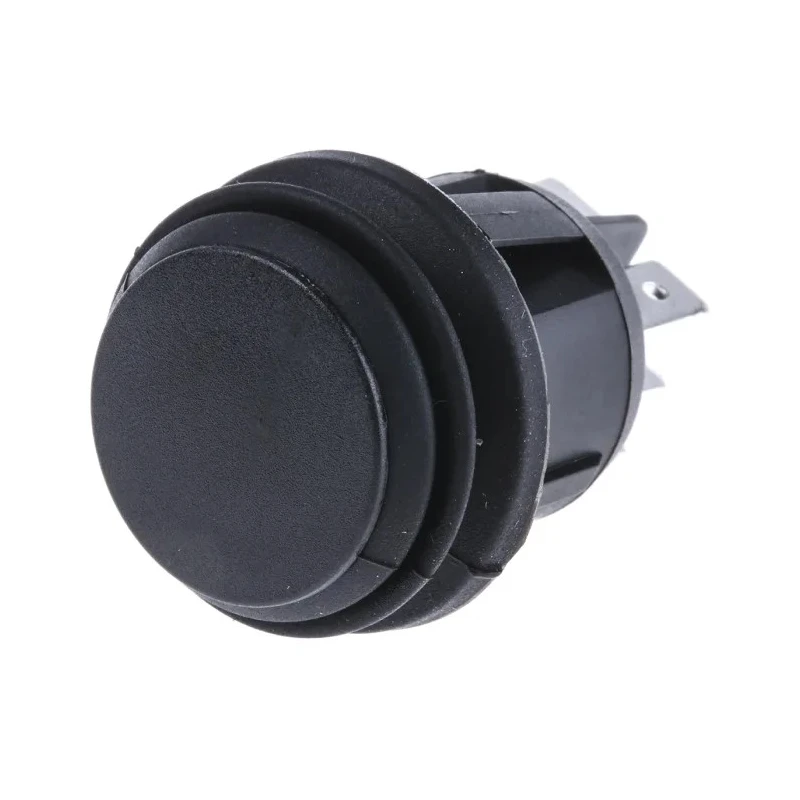

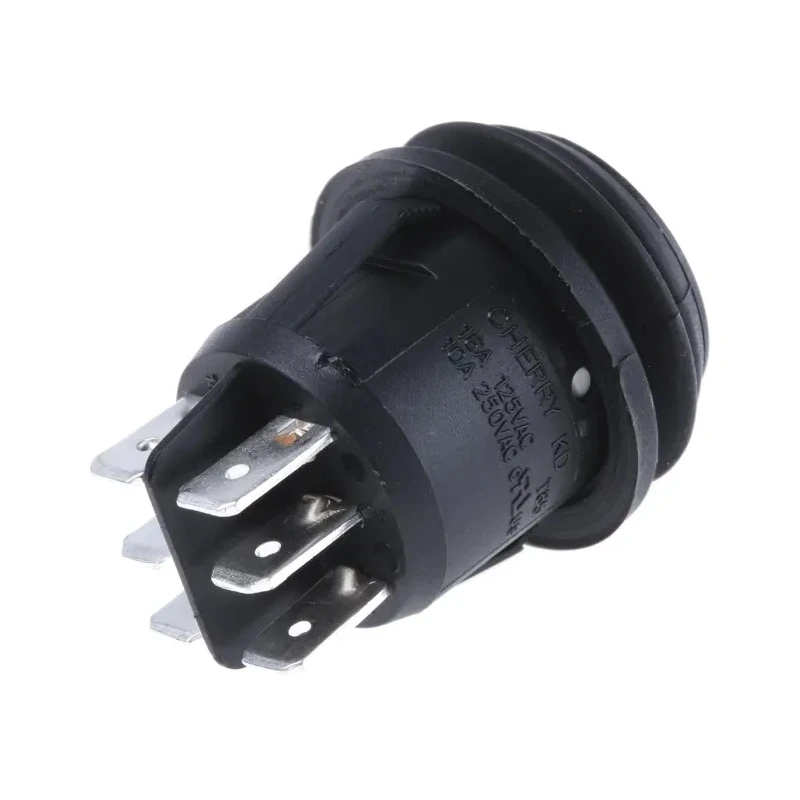

ZF DPDT On-Off-On Rocker Switch Panel Nylon Housing 20.2 mm Panel Cutout KDH3CNA1BBB

ZF KDH3CNA1BBB DPDT On-Off-On Rocker Switch Panel is a robust and reliable electrical component featuring a durable nylon housing designed to fit panel cutouts measuring 20.2 mm in diameter. This rocker switch is part of the KD series known for their waterproof and robust design, ideal for demanding industrial and commercial applications.

This switch operates on a Double Pole Double Throw (DPDT) contact configuration with an On-Off-On switch operation, allowing for versatile control in electrical circuits. The panel mount design and quick connect terminal type facilitate easy installation and maintenance during assembly or repair processes.

Engineered for endurance, the switch features a mechanical life of 100,000 operations and a DC electrical life of 6,000 cycles, ensuring long-term reliability. The IP56 rating provides strong protection against dust and water ingress, making it suitable for harsh environments, including outdoor and industrial settings.

The switch supports a switch contact current of 16 amperes, with rated voltages of 250V AC and 28V DC, making it versatile for a wide range of electrical applications. The actuator is a black, round, non-illuminated style designed for ergonomic ease of use.

Operating temperature ranges from -25 degrees Celsius to 85 degrees Celsius, enabling stable performance across diverse environmental conditions. The product is UL and VDE approved, affirming compliance with international safety and quality standards.

Manufactured in China, the KD series Rocker Switches are widely used in electrical panels, automation systems, and machinery equipment where reliable switching functions are critical.

Double Pole Double Throw (DPDT) contact configuration provides multi-circuit control. Robust nylon housing suitable for panel mount with 20.2 mm cutout diameter. Mechanical life rated for 100,000 operations supports high durability needs.

IP56 waterproof rating ensures safety against dust and water ingress. Quick connect terminal type allows efficient installation and service. Rated for 16A contact current with 250V AC and 28V DC voltage compatibility. UL and VDE certifications for adherence to safety standards.

Operating temperature from -25°C to 85°C adapts to varied environments. Black round actuator offers comfortable manual operation. Explore the comprehensive EnvMart catalogue for reliable rocker switch solutions by ZF that support diverse industrial and electrical automation needs.
