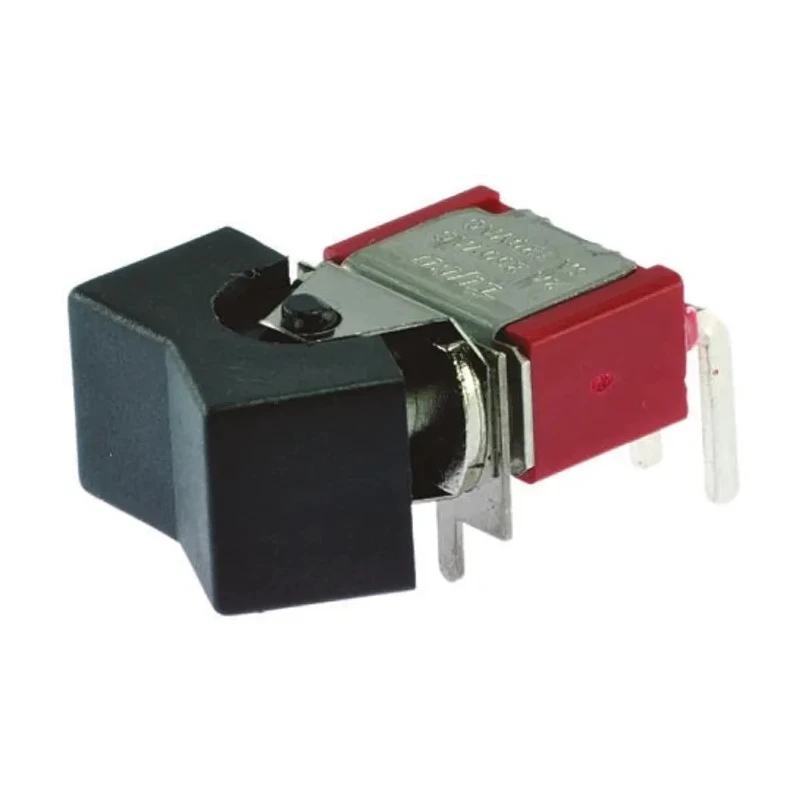

TE Connectivity SPDT On-On On-(On) Rocker Switch PCB, Thermoplastic Housing, Black Rectangular Actuator, IP67 1571986-8
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| IP Rating | IP67 |
| Mount Type | PCB |
| Housing Material | Thermoplastic |
| Series | Gemini A |
| Maximum Operating Temperature | +85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 17.96 x 10.62 mm |
| Terminal type | Snap-In |
| Switch Operation | On-On |
| Actuator Colour | Black |
| Contact DC Voltage | 28V dc |
| Actuator Style | Rectangular |
| Switch Contact Current | 5A |
| Mechanical Life | 400000Operations |
Key Features
- This rocker switch features a Single Pole Double Throw (SPDT) contact configuration for versatile circuit control.
- It operates on an On-On On-(On) switching action with a rectangular black actuator for easy toggling.
- The thermoplastic housing provides durable insulation and mechanical strength for industrial applications.
- Designed for PCB mounting with snap-in terminals, ensuring secure and efficient installation.
- Rated for 5A contact current at 28V DC, suitable for various low voltage electronic devices.
- It withstands a broad operating temperature range from -30°C to +85°C for harsh environments.
- The switch has a mechanical life of 400,000 operations, ensuring long-term reliability.
- Complies with Gemini A series standards with break-before-make contacts and UL recognition of G and Q contacts.
Product Description
TE Connectivity 1571986-8 SPDT On-On On-(On) Rocker Switch PCB features a robust thermoplastic housing and black rectangular actuator designed specifically for PCB mounting via snap-in terminals. This rocker switch is rated for a contact current of 5A at 28V DC, suitable for controlling a variety of low voltage electrical circuits.
Its IP67 sealing protects against ingress of dust and water, making it ideal for industrial, automation, and electrical applications that require reliable environmental resistance. The switch operates under a wide temperature range from -30°C to +85°C, ensuring dependable performance in challenging environments.
The switch configuration On-(On) and contact system SPDT (Single Pole Double Throw) provide versatile control options. It has a high mechanical life of approximately 400,000 operations, supported by Gemini A series engineering with UL recognized contacts ensuring safety and durability.
The design permits easy snap-in mounting on PCBs, improving production efficiency and integration in electrical equipment. The rocker actuator is rectangular, styled in black for clear visual identification and ergonomic operation.
This product is widely used in electrical automation, instrumentation, consumer electronics, and industrial control panels where reliable switching is critical. Its sealed housing extends service life and reduces maintenance needs.
Single Pole Double Throw (SPDT) contact configuration offers flexible circuit connectivity. On-On On-(On) switch operation for multiple circuit states control. Thermoplastic durable housing ensures robust insulation and mechanical strength.
Snap-in PCB mounting simplifies installation and enhances mechanical stability. Rated 5A at 28V DC contact current suitable for low voltage applications. Wide operating temperature range from -30°C to +85°C suitable for harsh conditions.
Mechanical life of 400,000 operations provides extended reliability. IP67 rating ensures dust and water ingress protection for industrial use. Gemini A series with UL recognized contacts for certified performance and safety.
Black rectangular actuator for ergonomic control and easy identification.
Choose this TE Connectivity rocker switch for dependable performance in electrical, industrial automation, and PCB-based electronic assemblies. Explore similar Rocker Switches and components in the EnvMart catalog for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rocker switch features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile circuit control.
It can operate at a maximum temperature of +85°C, making it suitable for use in harsh environments.
This switch is rated for a contact current of 5A at 28V DC, suitable for various low voltage applications.
It is designed for PCB mounting and features snap-in terminals for secure installation.
The switch has an IP67 rating, providing protection against dust and water ingress.
The mechanical life of this rocker switch is approximately 400,000 operations, ensuring long-term reliability.
The minimum operating temperature is -30°C, allowing it to function in cold environments.
The required panel cutout size for installation is 17.96 x 10.62 mm.
The actuator is rectangular in style and is colored black for easy identification and ergonomic operation.
This rocker switch is part of the Gemini A series, which includes UL recognized contacts for safety and performance.
The housing is made of thermoplastic, providing insulation and mechanical strength for industrial applications.
It operates with an On-On On-(On) switching action, allowing for multiple circuit states control.
