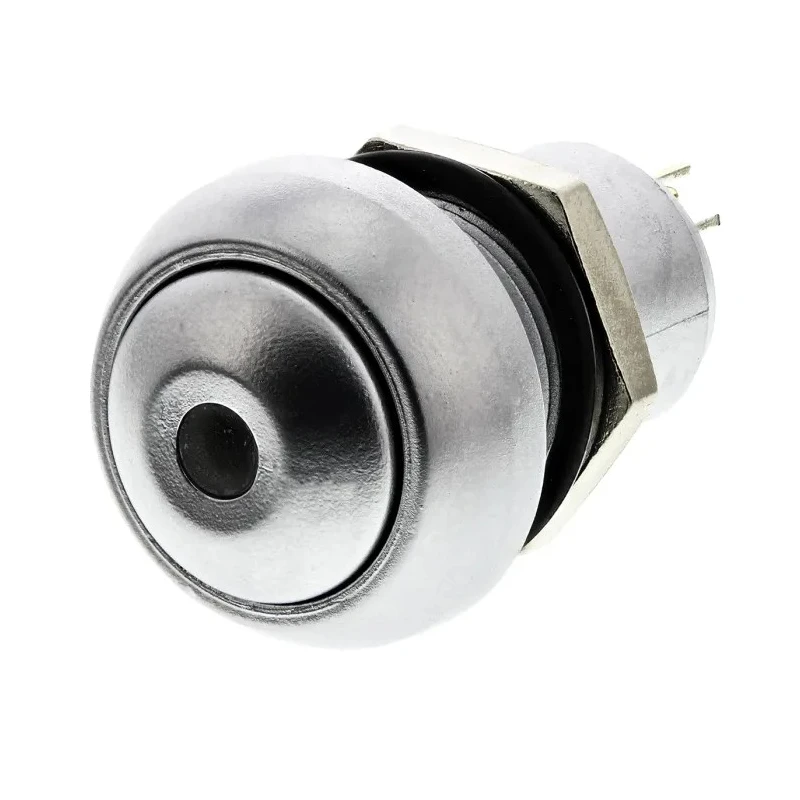

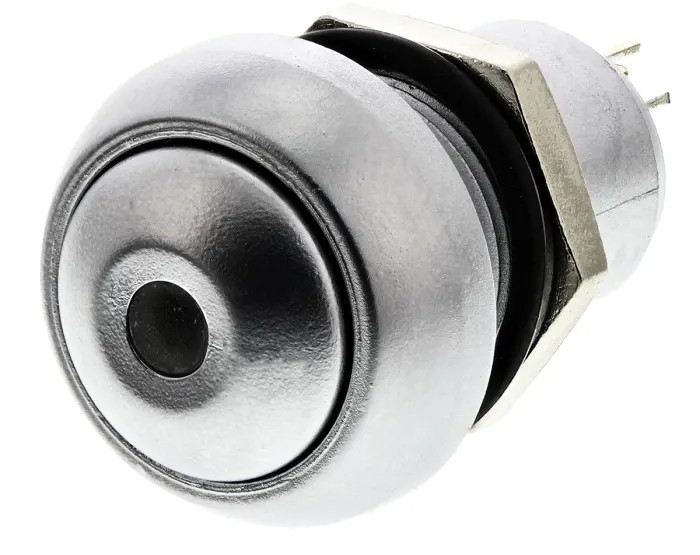

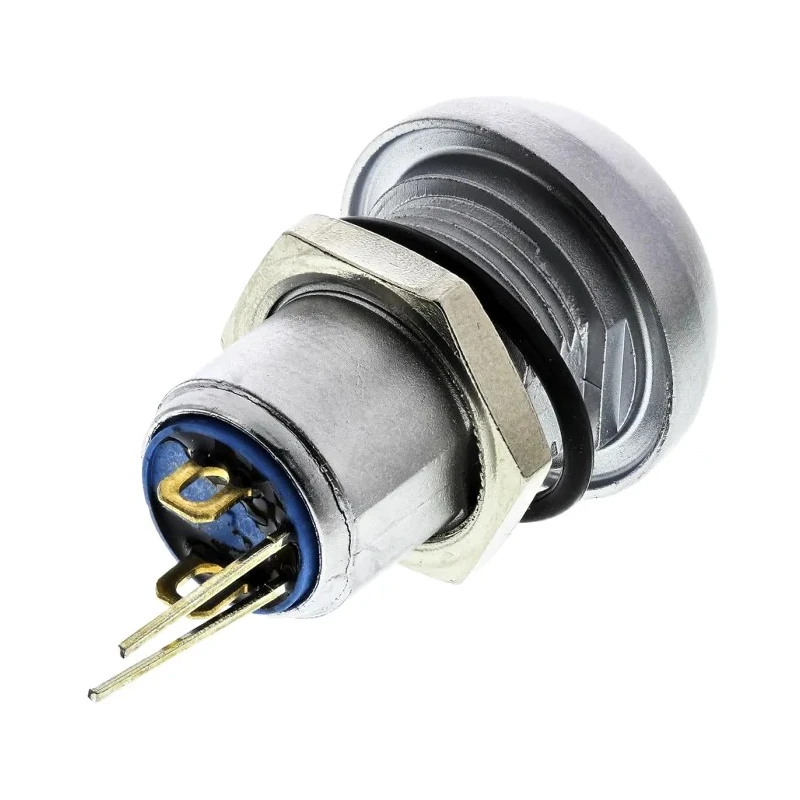

APEM IP Series Illuminated Push Button Switch, Latching, Panel Mount, 12.9 mm Cutout, SPST, Red LED, IP67, 24 IPR1SAD0LOS105

The APEM IPR1SAD0LOS105 IP Series Illuminated Push Button Switch is an industrial-grade latching switch designed for panel mounting applications requiring a precise 12.9 mm cutout. This single pole single throw (SPST) switch combines durability with functionality, featuring a silver actuator button and a bright red LED illumination to visually indicate switch status.

Its IP67 ingress protection rating makes it highly resistant to dust and water, making it suitable for demanding environments including industrial automation, electrical panels, and harsh outdoor conditions. The switch operates reliably across a wide temperature range from -40°C up to 85°C, ensuring consistent performance under extreme conditions.

Designed for applications requiring DC or AC voltage operation, this Push Button Switch supports 24 V dc and 125 V ac with a contact current rating of 5 amps. The solder terminal type offers secure and stable electrical connections, compatible with common wiring techniques. The compact form factor with dimensions of 16 mm height and 17.5 mm width allows ease of integration into control panels and machinery.

This switch delivers excellent tactile feedback for operative confidence and is resistant to salt spray, enhancing longevity in marine or corrosive environments. Certified and compliant with RoHS standards, it adheres to international safety and environmental guidelines, assuring users of quality and reliability.

The switch features a silver actuator button style for easy operation. It is illuminated with a red LED, providing clear status indication. The IP67 rating ensures protection against dust and water ingress. Suitable for use with 24 V dc and 125 V ac voltages.

Designed for harsh environments with exceptional touch feedback and salt spray resistance. Switch supports a contact current of 5A and solder-type terminals. Operating temperature range from -40°C to 85°C for reliable performance.

Compact dimensions with a height of 16 mm and width of 17.5 mm.

Ideal for use in industrial automation, electrical control panels, manufacturing lines, and equipment requiring clear switch status indication combined with durable performance. Browse EnvMart for more industrial switch solutions and electrical components to optimize your system integration.
