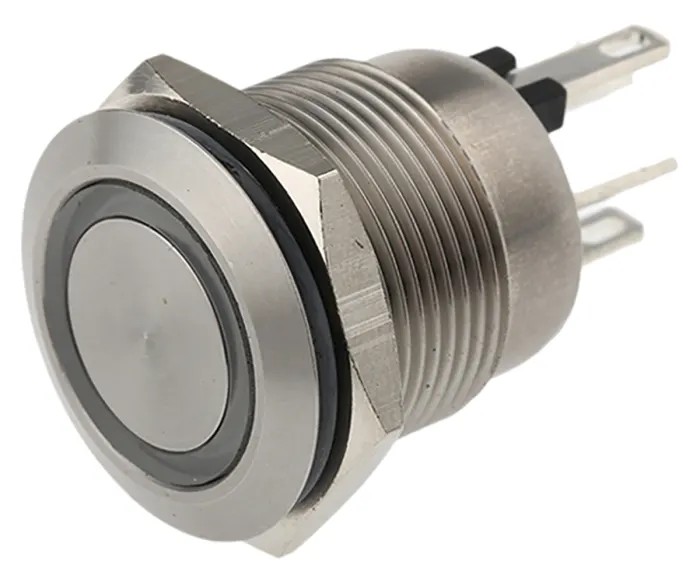

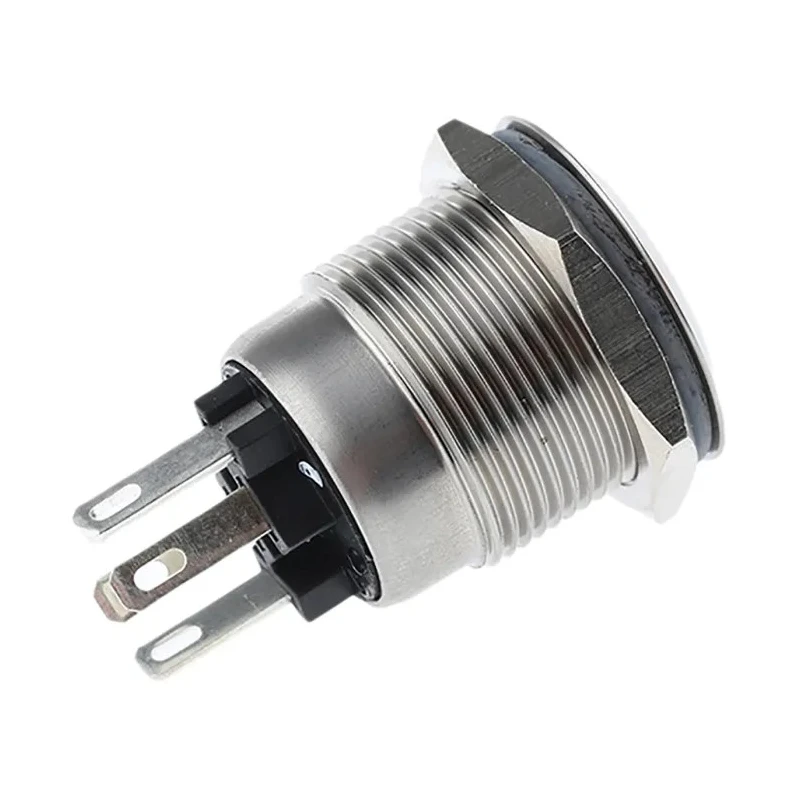

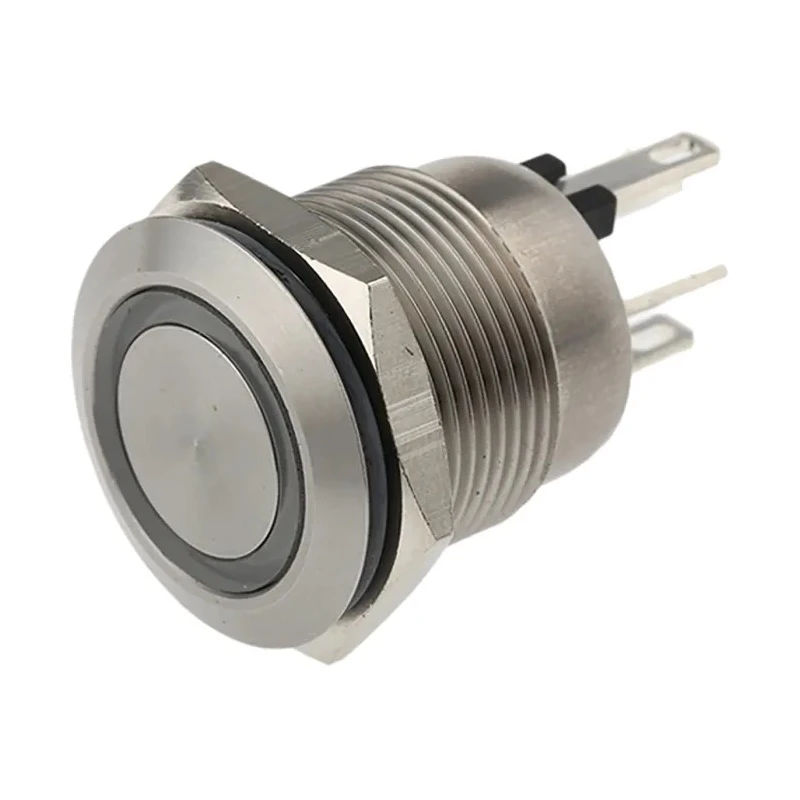

Bulgin Stainless Steel Vandal Resistant Illuminated Push Button Switch, Momentary, Panel Mount, 19.2 mm Cutout, SPST MPI002

Bulgin MPI002 Series illuminated push button switch is engineered for robust industrial and automation applications. Featuring a vandal resistant stainless steel body and actuator, this momentary panel mount switch is ideal for demanding environments requiring high reliability and durability.

The switch fits a 19.2 mm panel cutout and offers a single pole, single throw (SPST) push-to-make operation. It is illuminated with bright daylight blue and red LEDs, providing clear visual feedback in machine control panels and equipment interfaces.

Its IP66 rating ensures it is fully dust tight and protected against powerful water jets, making it suitable for harsh industrial settings, outdoor equipment, and water-exposed panels. The operating temperature range of -30°C to 70°C supports use under extreme climate conditions.

This switch supports a switch contact current of 50mA at 24 V DC, with separate LED terminals allowing independent LED control circuits. The mechanical life rating of minimum 750,000 cycles underscores reliability for long-term usage.

Compliance with RoHS standards guarantees environmentally responsible manufacturing.

Available illumination voltage variants are distinguished by suffix: no suffix requires external resistor, suffix /6 for 6V DC, /12 for 12V DC, and /24 for 24V DC. Refer to datasheet for resistor selection details.

The stainless steel vandal resistant body protects in harsh industrial environments. Momentary switch operation for transient control inputs. Blue and red LED illumination for versatile indicator options. Designed for panel mounting with a 19.2 mm cutout.

IP66 rated for dust and water jet ingress protection. Wide operating temperature range from -30°C to 70°C. Supports a 50mA contact current at 24 V DC voltage. Durable for at least 750,000 mechanical operations. RoHS compliant ensuring environmental safety.

Available in series MPI002 with multiple voltage options.

This push button switch series is suited for industrial control panels, manufacturing automation, HVAC control interfaces, water treatment equipment, and other commercial electrical equipment requiring rugged momentary switches with clear illumination.
