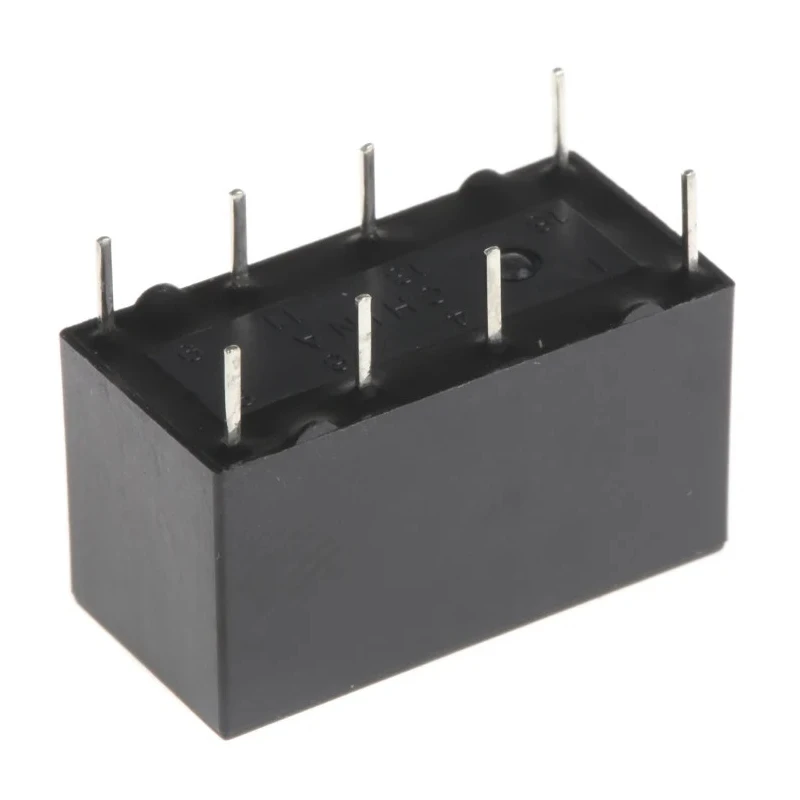

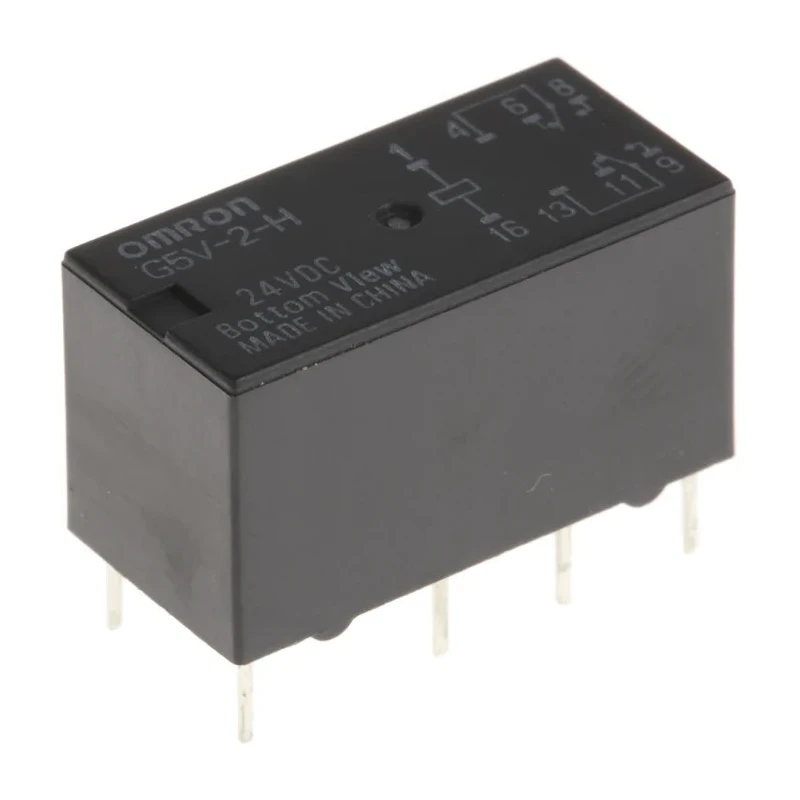

Omron PCB Signal Relay 24V DC Coil 1A DPDT G5V-2-H1 DC24

Omron G5V-2-H1 DC24 PCB Signal Relay is a miniature relay designed for use in high-sensitivity signal circuits requiring reliable switching with a 24V DC coil voltage. This DPDT relay offers dual double throw contacts capable of switching up to 1 ampere at 125V AC or DC, making it suitable for various low power control applications in electronics and electrical automation.

Constructed with gold-plated contacts and fully sealed housing, it ensures excellent electrical contacts and protection against environmental contaminants, enhancing durability and performance reliability. The relay measures a compact 20.5mm in length, 11.5mm in height, and 10mm in width, optimized for PCB mounting with solder-type terminals for secure connections.

Operating smoothly in temperatures ranging from -25°C to 70°C, this signal relay includes a coil resistance of 2800 ohms and requires a coil power of just 200mW, supporting energy-efficient operations in industrial, laboratory, manufacturing, and automation systems. It complies with the RoHS directive and holds UL and CSA approvals, assuring quality and environmental safety standards adherence.

The G5V-2-H Series relays are widely used in industrial automation, control panels, instrumentation, and signal conditioning setups where precision and reliability are paramount. Designed and built for long service life, these relays help optimize system performance while maintaining compact and lightweight profiles.

Features a 24V DC coil voltage suitable for signal circuit applications. Equipped with DPDT (Double Pole Double Throw) contact configuration for flexible switching. Supports switching currents up to 1 ampere with 125V AC and DC voltages.

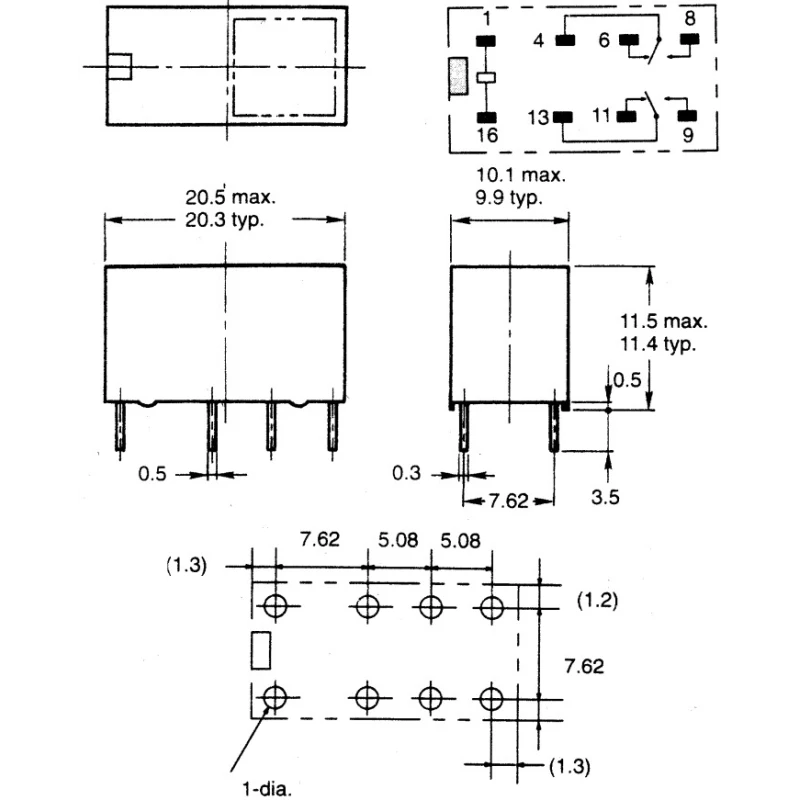

Dimensions include 20.5mm length, 11.5mm height, and 10mm width ensuring compact PCB integration. Utilizes gold-plated contacts for reliable electrical performance and durability. Operating temperature range from -25°C to 70°C for varied environments.

Coil resistance of 2800 ohms and coil power rated at 200mW for energy efficient operation. Terminals designed for solder mounting type. Fully sealed relay conforming to RoHS environmental standards. Manufactured in China and compliant with UL and CSA approvals.
