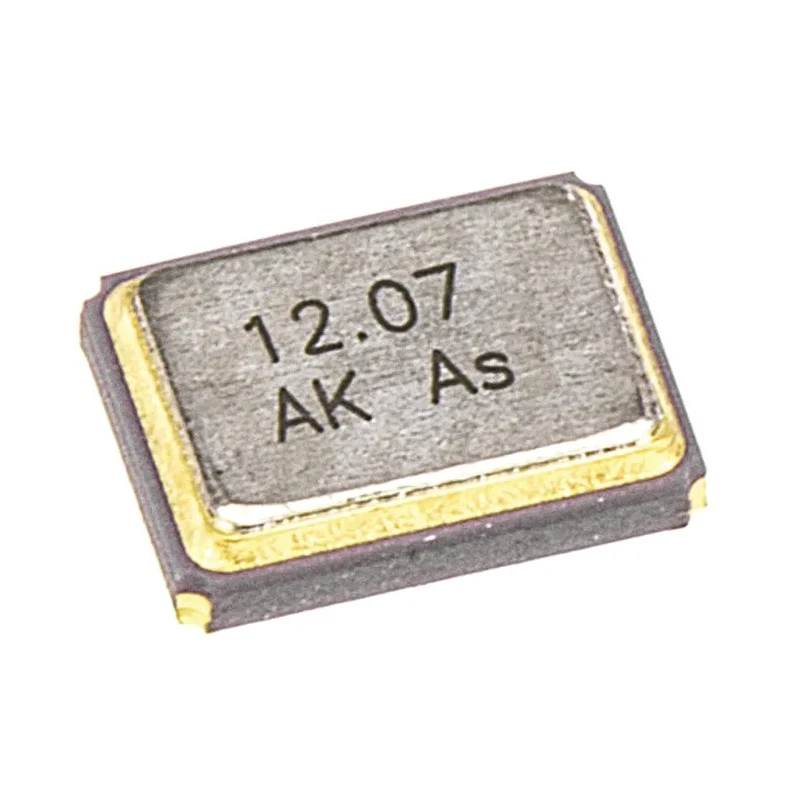

AKER 16 MHz Crystal ±10 ppm Surface Mount 4-Pin 0.75 mm Height 3.2 mm Length 2.5 mm Width C3E-16.000-12-1010-X

Free Delivery in India | Lowest Global Shipping Charges

AKER 16 MHz Crystal ±10 ppm Surface Mount 4-Pin 0.75 mm Height 3.2 mm Length 2.5 mm Width C3E-16.000-12-1010-X

Name: AKER 16 MHz Crystal ±10 ppm Surface Mount 4-Pin 0.75 mm Height 3.2 mm Length 2.5 mm Width C3E-16.000-12-1010-X
Brand: Aker
SKU: 312988
Price: 0.55 USD
Availability: InStock



Category Mounting Equipment Brand Aker Condition New

Specifications

Country of Origin	Taiwan
Brand	AKER
Height	0.75mm
Length	3.2mm
Model	C3E-16.000-12-1010-X
Packaging	Tape & Reel
Width	2.5mm
Mount Type	Surface
Series	C3E
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	16MHz
Load Capacitance	12pF
Series Resistance	100Ω

Key Features

This crystal unit has a 4-pin surface mount package for PCB integration.

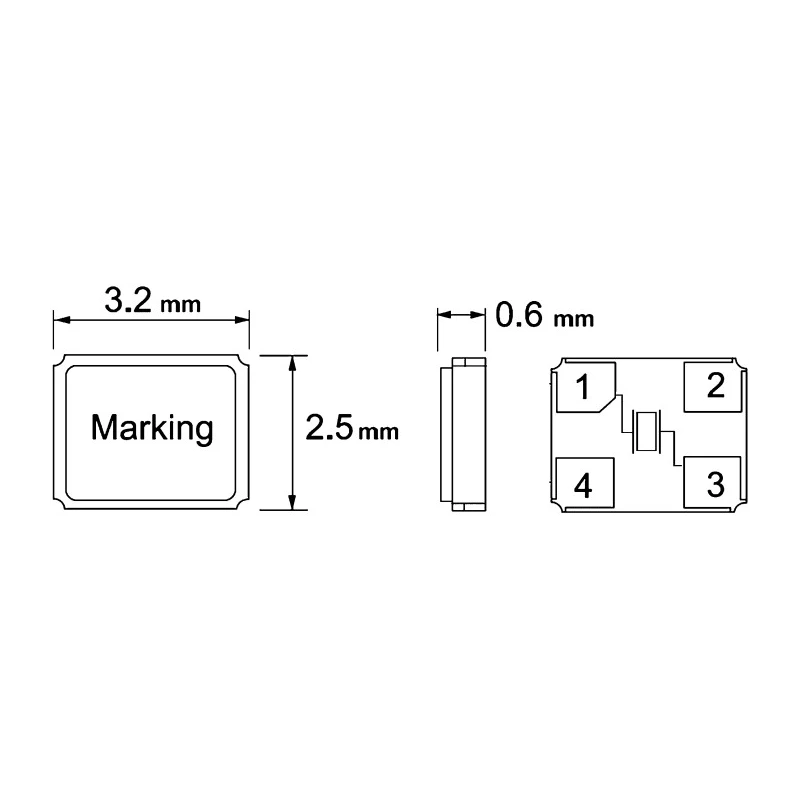

Diameter dimensions measure 3.2 mm length by 2.5 mm width and 0.75 mm height.
The frequency tolerance and stability are ±10 ppm ensuring precision in signal timing.
Load capacitance is specified at 12 pF for compatibility with microprocessor circuits.
The operating temperature range spans from -40°C to 85°C for reliable performance.
Constructed with a ceramic case and metal lid providing environmental resistance.
The series resistance is 100 ohms, optimized for microprocessor applications.
Packaged in tape and reel format, suitable for automated manufacturing assembly.

Product Description

AKER C3E-16.000-12-1010-X 16 MHz Crystal is a precision surface mount microprocessor crystal unit designed for use in electronic circuits requiring stable oscillation.

This crystal offers a standard frequency of 16 MHz with a frequency tolerance and stability of ±10 ppm, ensuring accurate timing and reliable signal generation in various industrial and commercial electronic equipment.

The crystal is housed in a low profile ceramic case with dimensions 3.2 mm length, 2.5 mm width, and 0.75 mm height, featuring a robust seam-sealed metal lid to protect against shock, vibration, and environmental influences.

With a 4-pin surface mount package, this component is ideal for automated PCB assembly processes and is supplied in tape and reel packaging to optimize manufacturing efficiency. The load capacitance is 12 pF, and it maintains a series resistance of 100 ohms, making it compatible with a wide range of microprocessor oscillator circuits.

Operating temperature ranges from -40°C to 85°C support deployment in various environments including industrial, laboratory, communication, and consumer electronics fields. AKER ensures RoHS compliance, reinforcing this crystal unit's suitability for modern electronics manufacturing with environmental safety standards.

This crystal unit features a surface mount 4-pin package for easy integration. Precise ±10 ppm frequency tolerance and stability provide accurate timing. Low profile ceramic package with dimensions 3.2 mm x 2.5 mm x 0.75 mm.

Load capacitance of 12 pF and series resistance of 100 ohms optimize performance. Wide operating temperature range from -40°C to 85°C allows versatile applications. Packaged tape and reel format supports automated assembly lines.

Robust ceramic case with metal lid enhances durability against shock and vibration. Compliant with RoHS for environmental and health safety. Manufactured in Taiwan, Province Of China under C3E series quality standards. Explore the Electronics Components category at EnvMart for more precision crystal units and electronic components designed for industrial and commercial applications.
