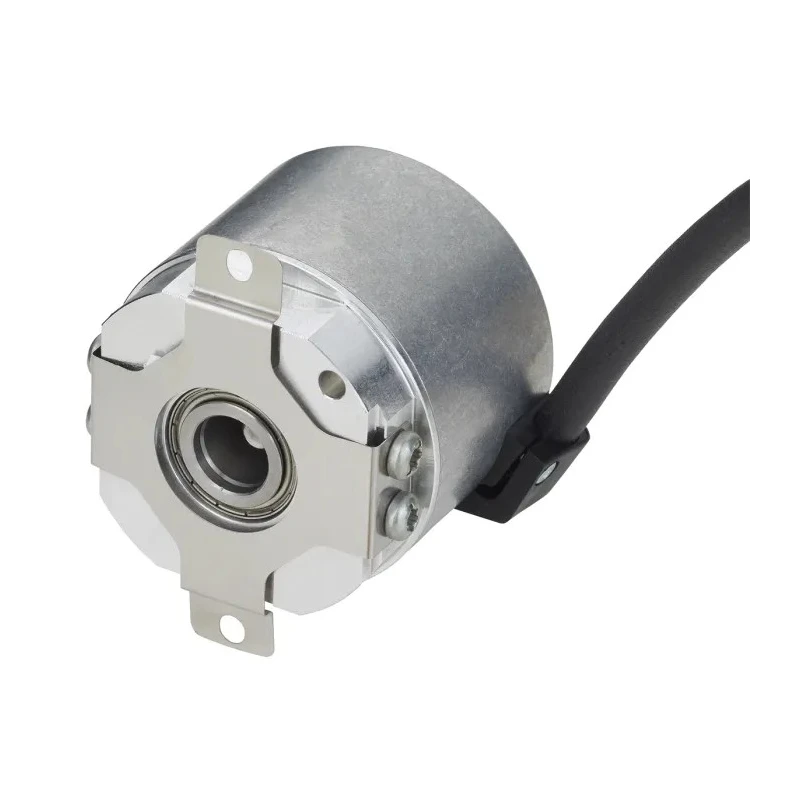

Hengstler Absolute Encoder 30V DC, 7V DC, 2048 PPR Pulse, 8 mm Through Hollow Shaft, Spring Mount AD36/1213EF.0RSCB

Free Delivery in India | Lowest Global Shipping Charges

Hengstler Absolute Encoder 30V DC, 7V DC, 2048 PPR Pulse, 8 mm Through Hollow Shaft, Spring Mount AD36/1213EF.0RSCB

Name: Hengstler Absolute Encoder 30V DC, 7V DC, 2048 PPR Pulse, 8 mm Through Hollow Shaft, Spring Mount AD36/1213EF.0RSCB
Brand: Hengstler
SKU: 312801
Price: 947.23 USD
Availability: InStock



Category Absolute Encoder Brand Hengstler Condition New

Specifications

Country of Origin	Germany
Resolution	17 bit
Brand	Hengstler
Operating Temperature	-40 to 120°C
Model	AD36/1213EF.0RSCB
Mount Type	Spring
Current Rating	100mA
Series	AD 36
Shaft Diameter	8mm
Encoder Type	Absolute Encoder
Supply Voltage	30, 7V dc
Pulses per Revolution	2048ppr
Shaft Style	Through Hollow Shaft
Encoder Signal	Sinus-Cosinus 1 Vpp
Maximum Operating Speed	10000rpm

Key Features

The encoder provides Sinus-Cosinus 1 Vpp signal output for high accuracy.
It supports a maximum operating speed of 10,000 rpm, suitable for dynamic applications.
Constructed with German engineering and compliant with EN 60529 and DIN EN 60068 standards.
Operates reliably across a temperature range of -40 to 120°C, ideal for industrial environments.

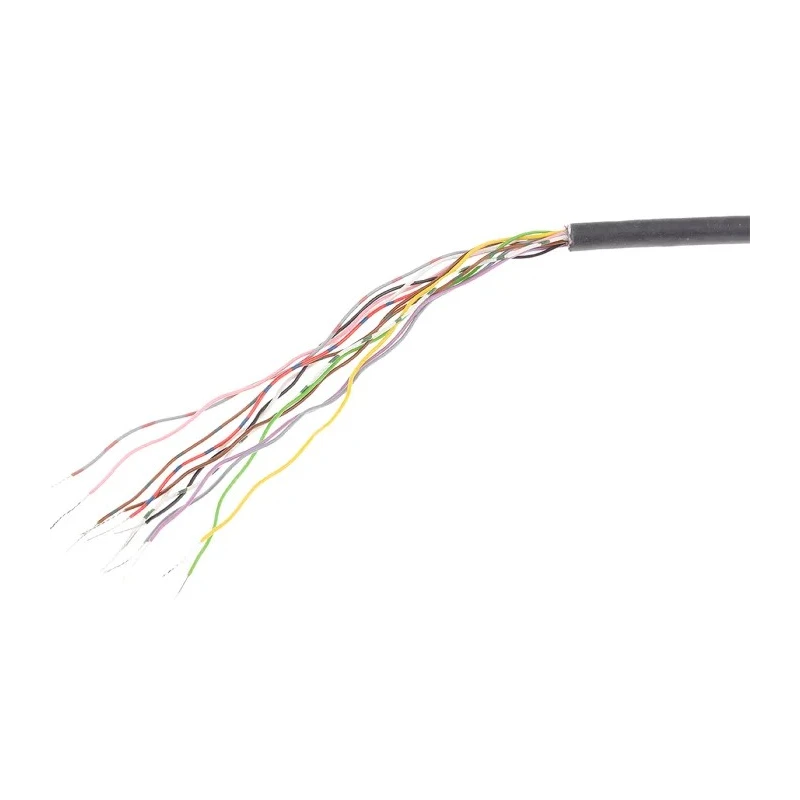

Design includes a 12-pole radial PCB connector with a 0.5m cable for easy integration.
Features a true geared multiturn optical mechanism with 17 bit resolution for precise multi-turn counting.
Current rating is 100 mA, ensuring efficient power consumption.
The spring mount and through hollow shaft design allows versatile and secure installation.

Product Description

Hengstler AD36/1213EF.0RSCB is a high-precision Absolute Encoder designed for industrial and automation applications requiring accurate rotary position measurement. Its electrical characteristics include dual supply voltages of 30V and 7V DC and output signals based on Sinus-Cosinus 1 Vpp standard, ensuring compatibility with modern control systems.

The encoder features a compact 8 mm diameter through hollow shaft combined with a spring mounting system, allowing flexible installation in constrained spaces while maintaining robust mechanical stability.

Engineered and manufactured in Germany, the AD36 series adheres to strict international standards including EN 60529 for ingress protection and DIN EN 60068-2 standards covering vibration and shock, ensuring durability in harsh industrial environments.

Capable of a maximum rotational speed of 10,000 rpm, this optical absolute encoder incorporates a true geared multiturn mechanism delivering 17-bit resolution and 2048 pulses per revolution, ideal for sophisticated motor feedback and control applications.

The encoder operates reliably over a wide temperature range from -40 to 120°C, equipped with a 12-pole radial PCB connector and a 0.5 meter cable to facilitate straightforward system integration.

The encoder delivers high-resolution rotary position feedback suitable for industrial and laboratory automation. Durable construction and standard compliance support long operational life in demanding environments. Advanced multiturn gearbox and optical sensing technologies provide precise absolute position detection.

Compact hollow shaft and spring mount design offer versatile installation options. Optimized power consumption with 100 mA current rating. Robust signal output supporting sinus-cosinus interface for enhanced noise immunity.

Wide temperature tolerance enables deployment in diverse environmental conditions. This Hengstler Absolute Encoder is well suited for applications in manufacturing automation, robotics, CNC machinery, and precise motor feedback systems.
