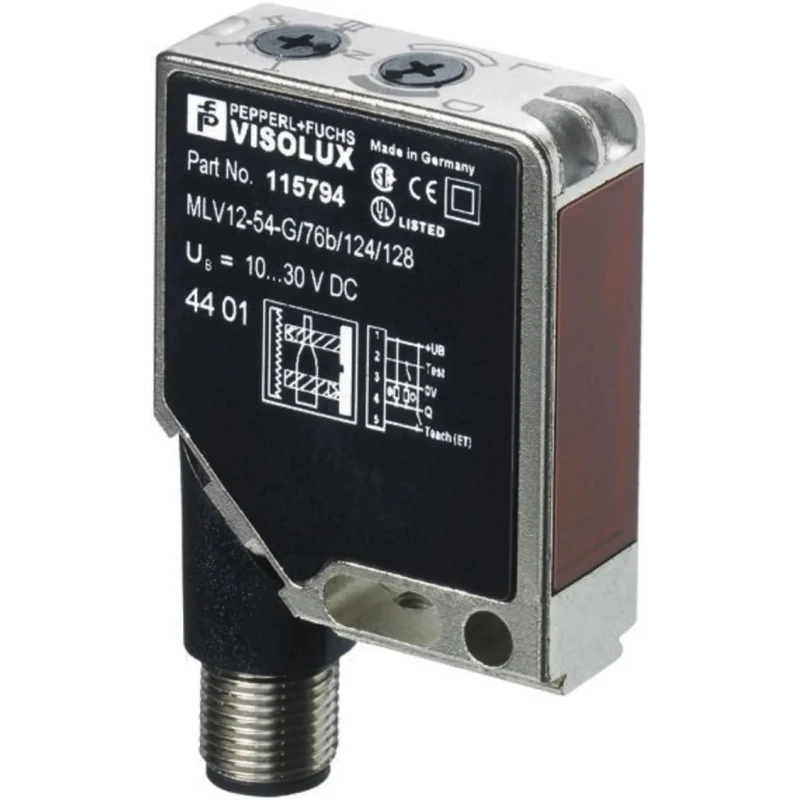

Pepperl + Fuchs Retroreflective Photoelectric Sensor Block Style LED Output 6.5 m Detection Range Push MLV12-54/76B/124/128
Specifications
| Country of Origin | India |
|---|---|
| Brand | Pepperl + Fuchs |
| Response time | 500μs |
| Light Source | LED |
| Temperature range | -40 → +60°C |
| Detection range | 6.5 m |
| Model | MLV12-54/76B/124/128 |
| IP Rating | IP67 |
| Housing Material | Nickel Plated Zinc Die Cast |
| Output type | Push Pull |
| Series | MLV12 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 200mA |
| DetectIon Type | Retroreflective |
| Interface Type | 5-Pin Connector |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | UL, EAC, CCC |
| Materials Detected | Metal |
| Sensor Style | Block |
Key Features
- Designed with IP67 protection for harsh industrial conditions.
- Equipped with ultra bright LED light source for stable sensing.
- Push pull output supports up to 200 mA current for noise resistance.
- Operating voltage range from 10 to 30 V DC ensuring compatibility.
- Robust nickel-plated zinc die cast housing for durability.
- Features automatic “TEACH IN” sensitivity adjustment via keypad or optical interface.
- Response time of 500 microseconds enables fast detection.
- Wide operating temperature range from -40°C to +60°C for versatile environments.
Product Description
Pepperl + Fuchs MLV12-54/76B/124/128 Retroreflective Photoelectric Sensor block sensor design provides reliable metal detection with a detection range of 6.5 meters. It operates with a push pull output configuration and is powered by a 30 V DC supply, making it suitable for various industrial automation applications.
The photoelectric sensor is protected with an IP67 rated enclosure, crafted from nickel plated zinc die cast housing to withstand harsh industrial environments. It uses an LED as the light source for accurate sensing and includes an automatic sensitivity adjustment feature called “TEACH IN” accessible through a membrane keypad or optical interface, enabling precise switch point calibration.
This device features a maximum current capacity of 200 mA and a rapid response time of 500 microseconds, ensuring fast and noise-resistant operation. The sensor is designed to operate within a wide temperature range from -40°C to +60°C, supporting use in both extreme cold and warm conditions.
Additional functionalities include multifunction input, control test input, and multifunction timer along with failure warnings, providing enhanced diagnostics and operational control. The sensor connects via a standard M12 5-pin connector facilitating easy integration in automated systems.
Certified to UL, EAC, and CCC standards, this sensor complies with common industrial safety and quality norms. It does not include a hazardous area certification and the reflector required for retroreflective operation is sold separately.
Designed for industrial automation, manufacturing processes, and material handling systems. Suitable for use in HVAC, electrical control panels, and laboratory automation. Robust construction and interface compatibility support long-term, reliable operation.
Set includes one Pepperl + Fuchs MLV12-54/76B/124/128 Retroreflective Photoelectric Sensor. Reflector not included; refer to separate reflector model for compatibility. Explore further sensor solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of the Pepperl + Fuchs MLV12-54/76B/124/128 Retroreflective Photoelectric Sensor is 6.5 meters.
This sensor operates within a voltage range of 10 to 30 V DC.
The maximum current output for this model is 200 mA.
It features a push-pull output configuration.
The response time of this photoelectric sensor is 500 microseconds.
This model is designed to detect metal materials.
The operating temperature range is from -40°C to +60°C.
The housing is made from nickel-plated zinc die cast, providing robust protection.
It connects via a standard M12 5-pin connector, facilitating easy integration.
The sensor is certified to UL, EAC, and CCC standards.
No, the reflector required for retroreflective operation is sold separately.
This model is suitable for industrial automation, manufacturing processes, and material handling systems.
