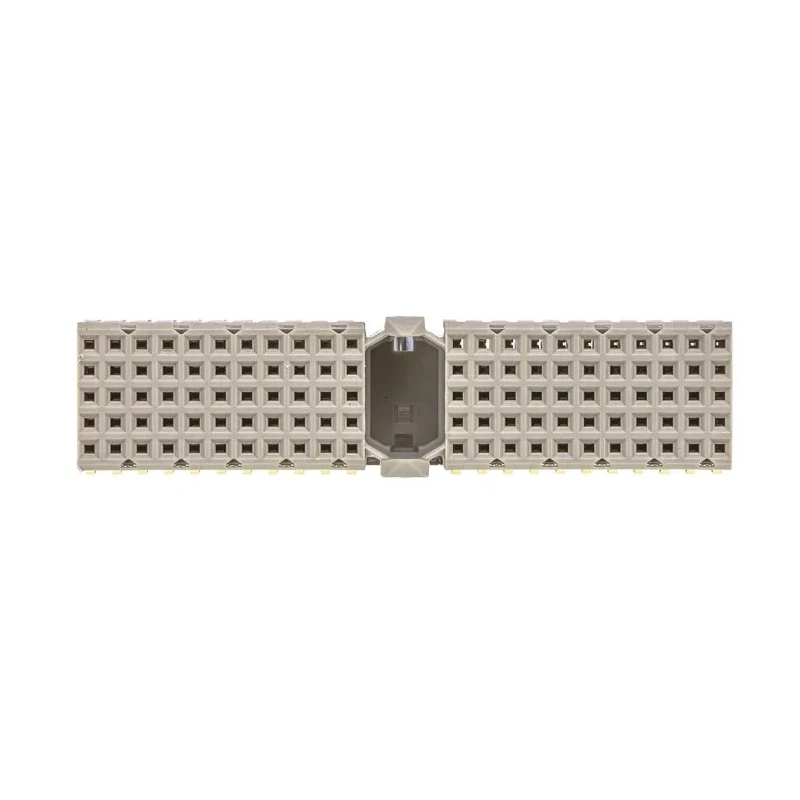

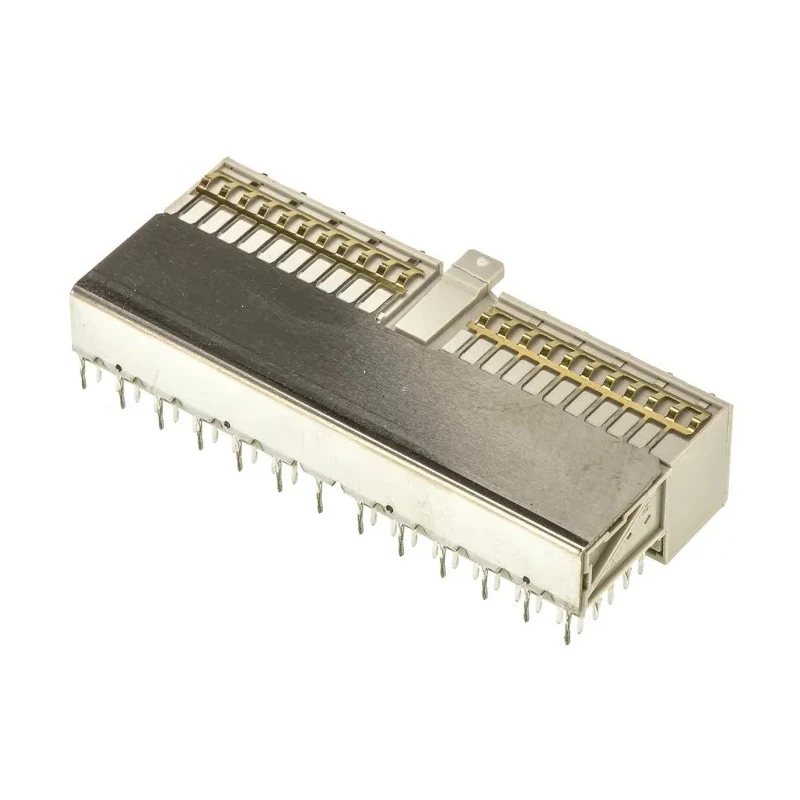

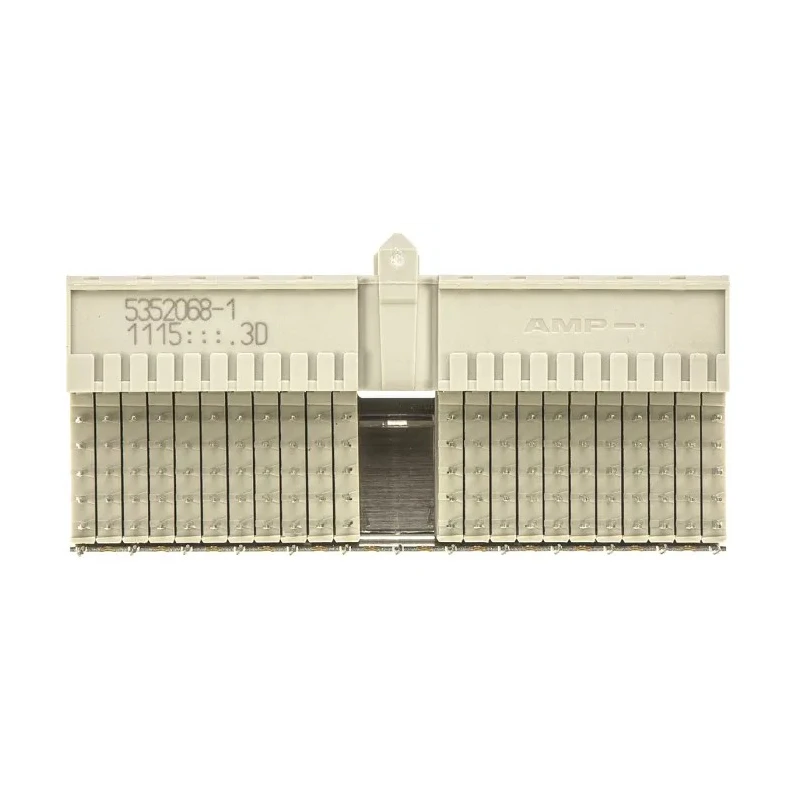

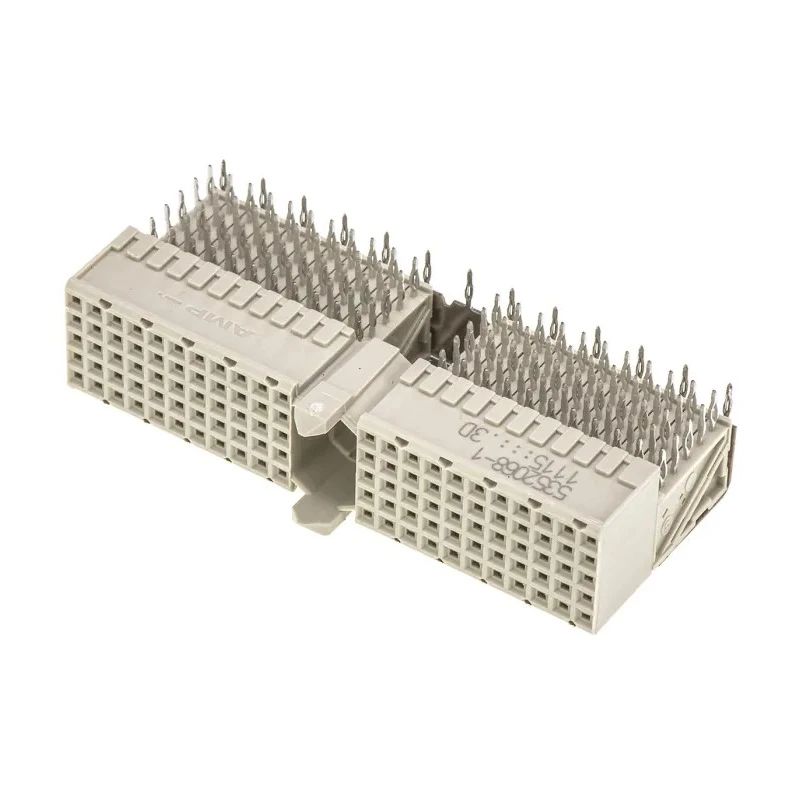

TE Connectivity Z-PACK HM 2 mm Pitch Hard Metric Type A Backplane Connector Right Angle Female 25 Column 5 Row 110 5352068-1

TE Connectivity 5352068-1 is a high-performance Z-PACK HM 2 mm Pitch Hard Metric Type A Backplane Connector engineered for industrial and electronic applications requiring reliable interconnection between daughter boards and motherboards or backplanes.

This right angle female connector features 25 columns and 5 rows, summing to 110 contacts, meticulously designed to handle up to 1.5A of current at a voltage rating of 500V AC. The housing is constructed from durable polyethylene terephthalate, providing robust insulation and mechanical strength for demanding environments.

Contacts are made of phosphor bronze with gold over nickel plating, ensuring excellent conductivity and mitigated corrosion risk, critical for long-term stability. Its 2 mm pitch and through hole mount type allow for secure and precise placement on PCBs. The connector supports solder termination, facilitating reliable assembly in electronic systems.

Operating temperature ranges from -55°C to 125°C, making it suitable for diverse industrial and laboratory environments including manufacturing equipment, telecommunications, and computing hardware requiring hot-swap connectivity.

The Z-PACK HM series incorporates press-fit technology and Euro-style packaging, enabling high density and hot-swap capabilities beneficial for real-time applications in compact PCI systems. This connector supports both 32-bit and 64-bit configurations on 3U and 6U cards, addressing versatile design requirements.

Designed for high density interconnections in compact PCI systems. Features gold over nickel plating on phosphor bronze contacts for enhanced conductivity and corrosion resistance. Rated for 1.5A current and 500V AC voltage operation.

Equipped with polyethylene terephthalate housing for durability and insulating properties. Designed with a 2 mm pitch and through hole mount for secure PCB installation. Operational temperature range from -55°C to 125°C.

Connector termination via solder method ensuring strong electrical contacts. Female connector gender with right angle orientation for versatile mounting. Part of the Z-PACK HM series, supporting hot-swap capability for real-time applications.

This product is ideal for use in electronics manufacturing, telecommunications infrastructure, laboratory instrumentation, and other industrial applications requiring robust backplane connections.
