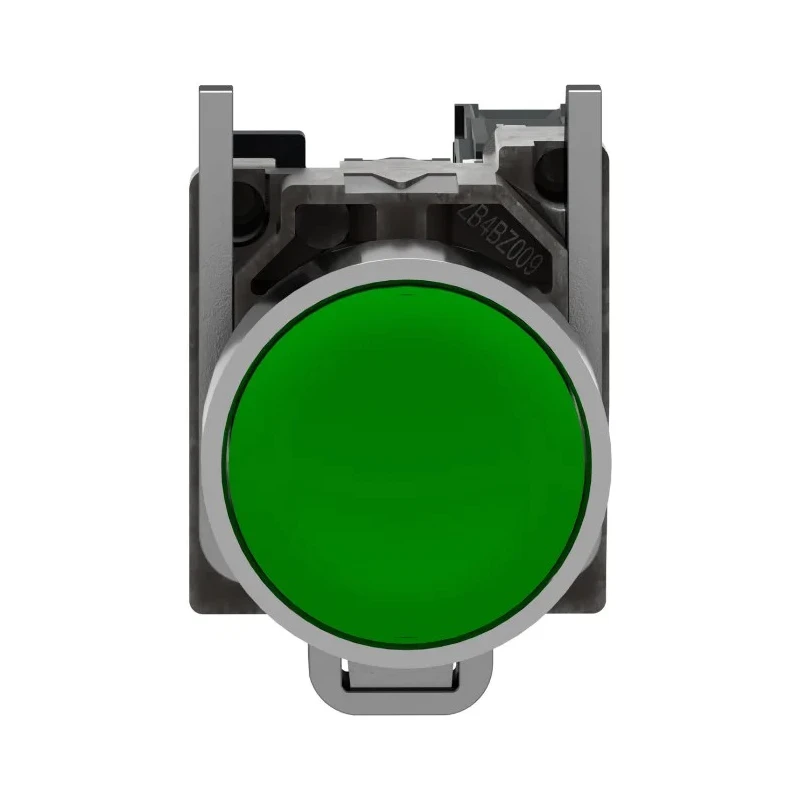

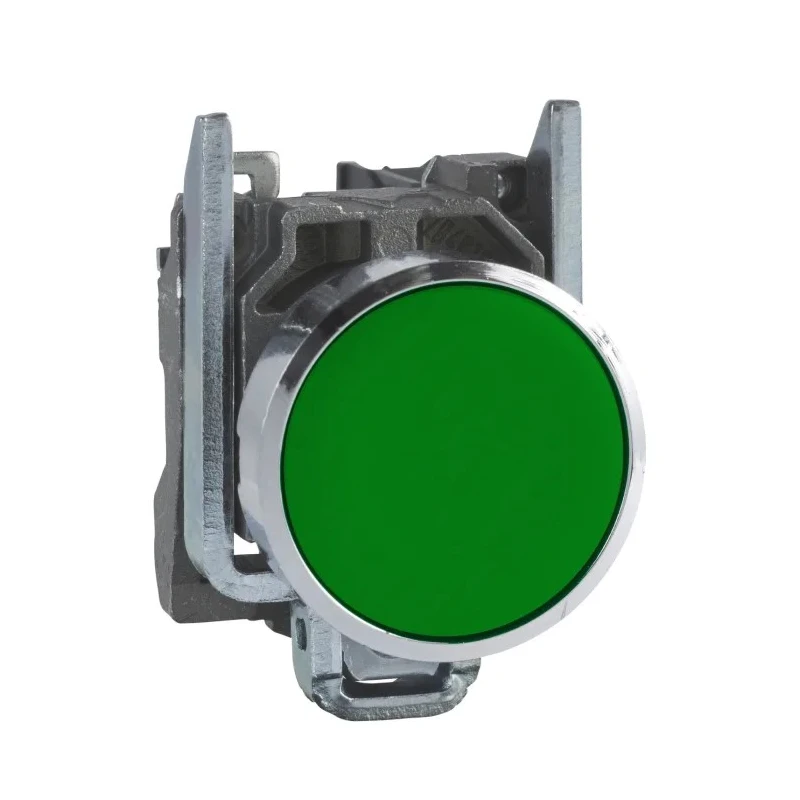

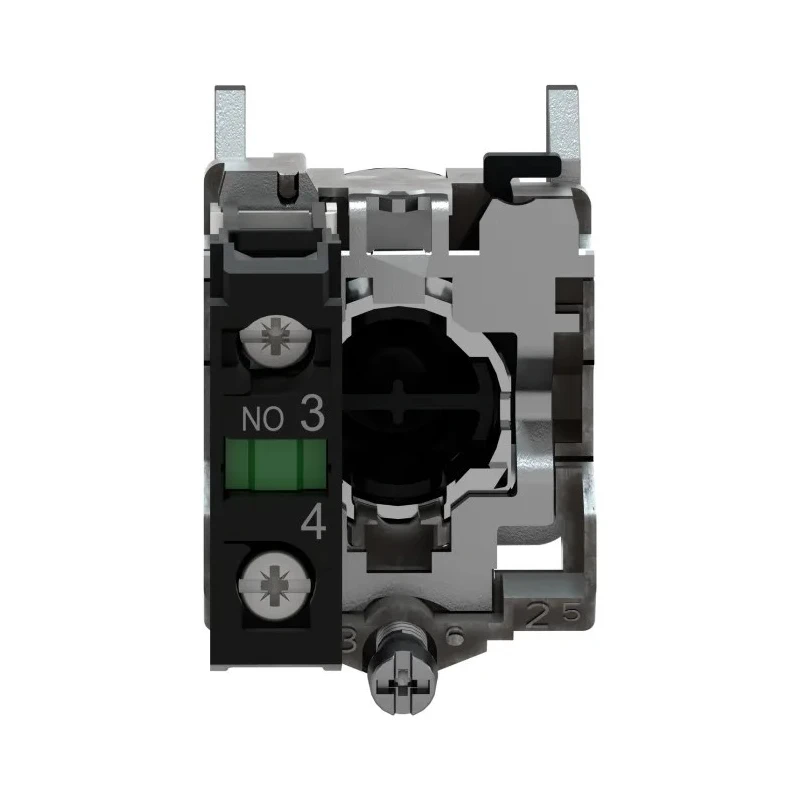

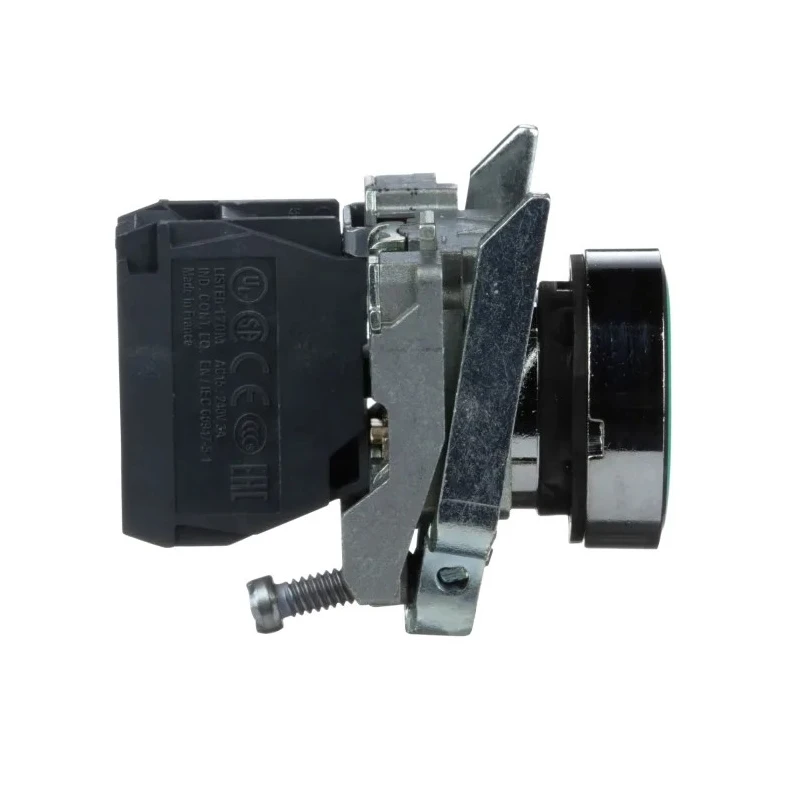

Schneider Electric Harmony XB4 Series Push Button Switch Panel Mount 22 mm Cutout SPST Green LED IP66 IP67 IP69K XB4BA31

Schneider Electric XB4BA31 Harmony XB4 Series Push Button Switch is engineered for reliable panel mounting with a 22 mm cutout diameter. Featuring a spring return actuator with a vibrant green LED, this switch provides straightforward SPST contact configuration for efficient on/off control. The robust chromium-plated metal construction ensures durability and resistance in demanding environments.

This push button switch accommodates high-voltage applications with contact ratings of 600V for both AC and DC circuits. Its IP66, IP67, and IP69K ratings guarantee outstanding protection against dust ingress and high-pressure water jets, making it suitable for industrial environments exposed to harsh conditions. The switch terminals use screw clamps supporting cable sizes up to 2 x 1.5 mm², facilitating versatile wiring setups.

Designed for extended mechanical endurance, the XB4BA31 supports up to 10 million mechanical cycles and 1 million electrical operation cycles, delivering exceptional reliability and longevity. Operating temperature spans a broad range from -40°C to +70°C, enabling functionality in diverse climates and industrial settings.

Typical applications include integration into industrial control panels for machinery start and stop functions, automation processes requiring dependable push button switches, and user interface controls in manufacturing equipment. The green LED provides clear visual indication in operational status.

IP ratings of IP66, IP67, and IP69K reflect the product’s robustness against contaminants, water jets, and washdowns, essential for food processing, manufacturing, and heavy industrial sectors. The spring return mechanism adds tactile and functional efficiency, enhancing user control experience.

The switch’s chromium-plated metal exterior ensures high resistance to wear and corrosion. Multiple IP ratings provide extensive protection for environmental challenges. Simple and reliable SPST contact arrangement for efficient switching.

Spring return actuator supports quick reset after operation. Mechanical durability rated at 10 million cycles supports intensive usage. Wide operational temperature range from -40°C to +70°C for versatile applications. Screw terminal type facilitates various wiring configurations up to 2 x 1.5 mm² cables.

Ideal for industrial automation, control panels, and machinery interfaces. Green LED illumination provides clear operational feedback. Manufactured to meet stringent quality requirements in France. Explore more Schneider Electric Push Button Switches and related products on EnvMart for high-quality industrial and automation solutions.
