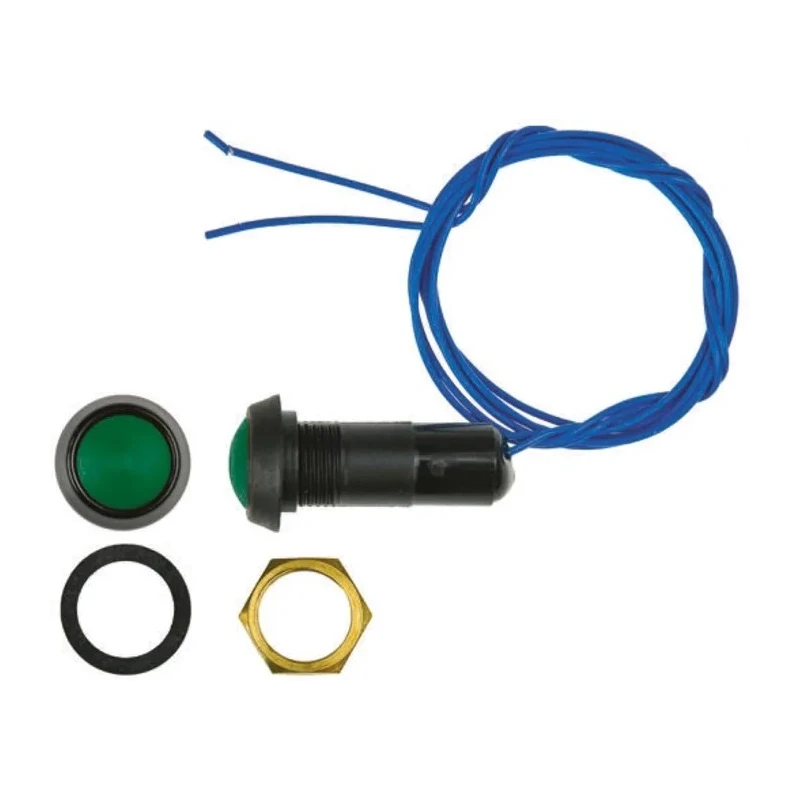

ITW Switches 59 Series Miniature Push Button Switch Momentary Panel 13.6 mm Cutout SPST Clear LED IP67 125V 59-533

ITW Switches 59-533 is a miniature sealed pushbutton switch designed for momentary operation in panel mount applications. This rugged switch supports a 13.6 mm panel cutout and features a single pole single throw (SPST) contact configuration. The green actuator button includes a clear LED for status indication, and the switch is sealed to IP67 standards, providing high resistance to dust ingress and protection against temporary immersion in water.

These 59 Series switches are engineered for demanding industrial and commercial environments, including communications, military, instrumentation, mass transport controls, and other harsh keypad applications. Their non-sparking zinc alloy or hard-wearing molded polybutylene terephthalate (PBT) body ensures durability under tough conditions. Gold contacts improve reliability and reduce contact resistance.

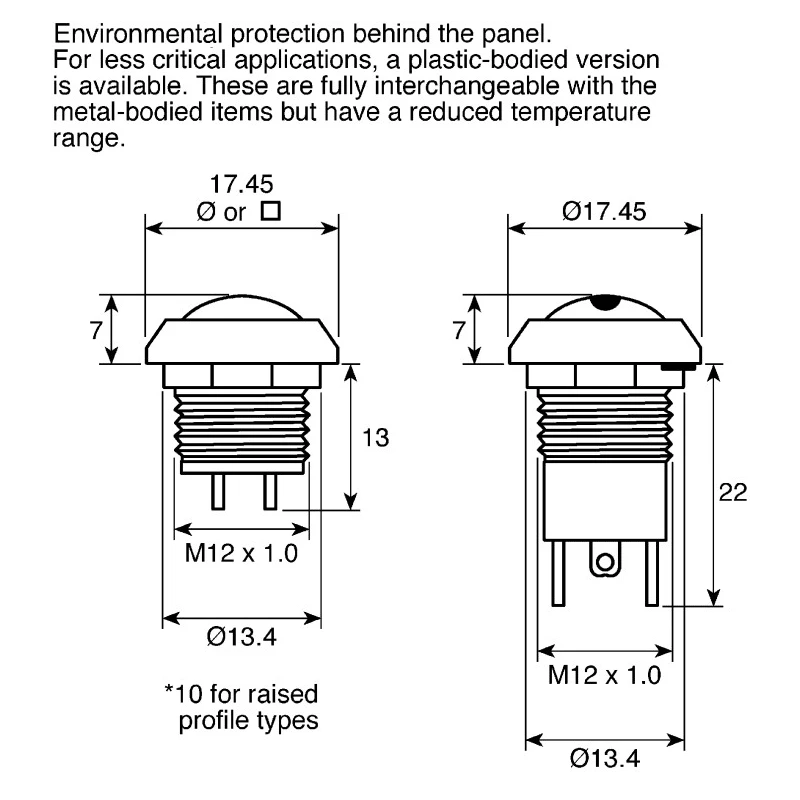

Operating over a wide temperature range from -40°C to 105°C, these switches maintain performance in extreme environments. Electrical ratings include 125V AC/DC operation with a contact current capacity of 400mA. The compact size (17.5 mm width x 20 mm length x 20 mm height) enables integration into space-constrained panels.

This switch features a green actuator colour and button style actuation. It operates at 125V AC/DC with a contact current of 400mA. IP67 sealed design ensures environmental protection against dust and immersion. Min/Max operating temperature range of -40°C to 105°C suits harsh environments.

Available with gold contacts and UL, CSA approvals. Body materials include non-sparking zinc alloy or durable PBT for rugged use. Compact dimensions optimize panel fitment and mounting convenience.

The ITW Switches 59 Series miniature pushbutton supports industrial, commercial, and military applications requiring reliable, sealed, momentary switches. It is ideal for use in communication equipment, instrumentation panels, mass transport control panels, and environmentally demanding keypad interfaces.
