Pepperl + Fuchs Dual Channel DIN Rail Mount Zener Barrier 10V AC Supply ATEX Certified Z 960

Free Delivery in India | Lowest Global Shipping Charges

Pepperl + Fuchs Dual Channel DIN Rail Mount Zener Barrier 10V AC Supply ATEX Certified Z 960

Name: Pepperl + Fuchs Dual Channel DIN Rail Mount Zener Barrier 10V AC Supply ATEX Certified Z 960
Brand: Pepperl + Fuchs
SKU: 310827
Price: 202.85 USD
Availability: InStock



Category Zener & Galvanic Barriers Brand Pepperl + Fuchs Condition New

Specifications

Country of Origin	Indonesia
Brand	Pepperl + Fuchs
Model	Z 960
IP Rating	IP20
Mount Type	DIN Rail
Series	Z960
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-20°C
Terminal type	Screw
Number Of Channels	2
Supply Voltage	10V ac
Hazardous Area Certification	ATEX
Standards/Approvals	FM, IEC, UL, CE
Barrier Type	Zener Barrier
Safety Current Resistance	64Ω
Maximum Safety Current	203mA
Maximum Safety Voltage	250V
Eaton 2 Channel Zener Barrier, ATEXBrand	Eaton
Pepperl + Fuchs 2 Channel Zener Barrier, ATEXBrand	Pepperl + Fuchs

Key Features

The device supports 2 channels for signal transmission and isolation.
It features a screw terminal type with DIN rail mount for easy installation.
The supply voltage is 10V AC with a maximum safety current of 203mA.
The unit has an IP20 ingress protection rating, suitable for indoor industrial environments.
Operating temperature ranges from -20°C to 60°C, ensuring reliability in varied conditions.
Safety current resistance is rated at 64Ω to protect against fault conditions.
The maximum safety voltage is 250V complying with recognized safety standards.
Certified to FM, IEC, UL, and CE standards to meet industrial safety requirements.

Product Description

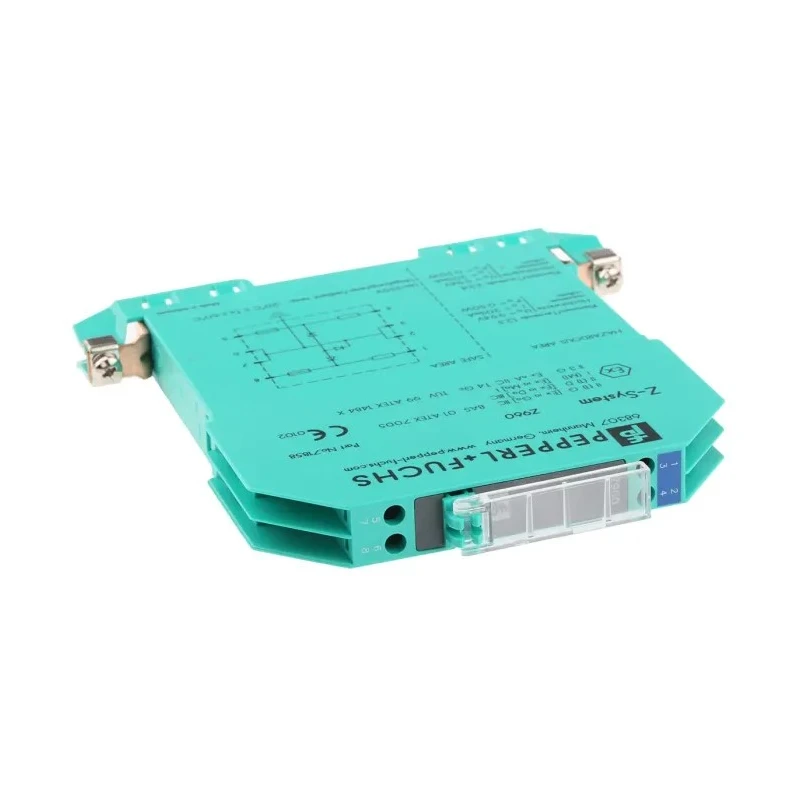

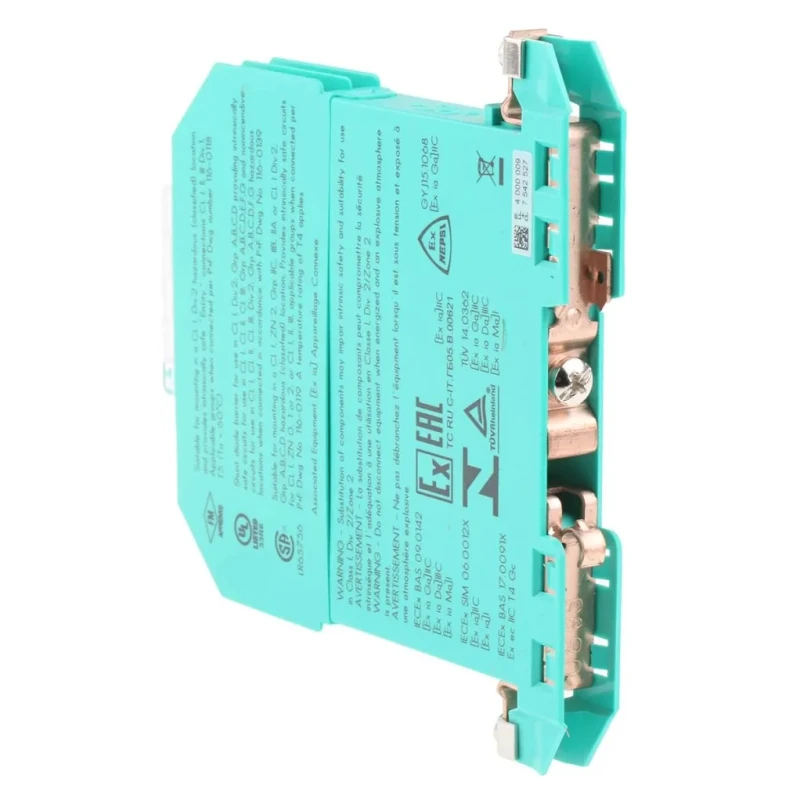

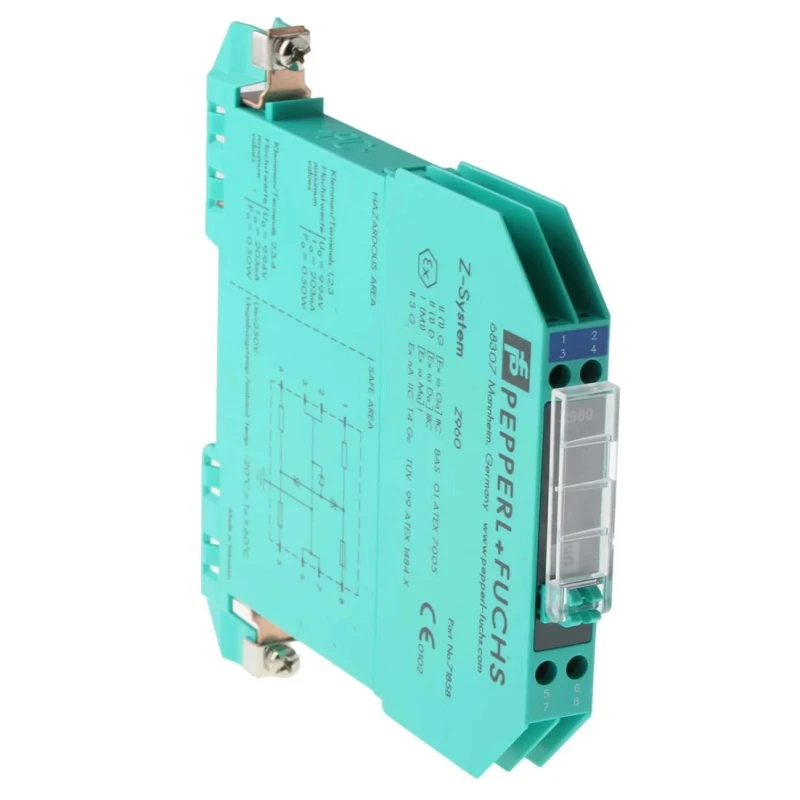

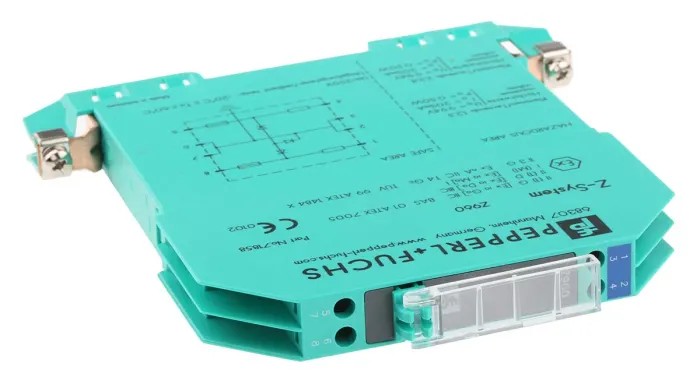

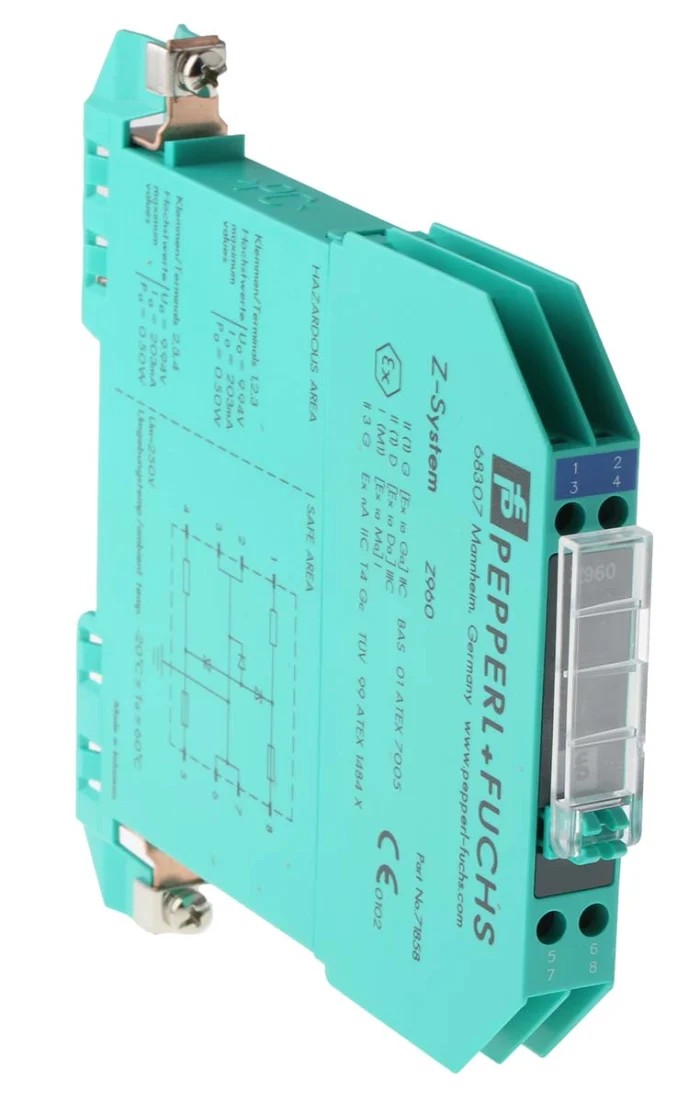

Pepperl + Fuchs Z 960 dual channel DIN rail mount Zener barrier operates with a 10V AC supply voltage designed primarily for use in intrinsically safe circuits within hazardous industrial environments, certified with ATEX standards. It acts as a safety interface limiting electrical energy transfer to hazardous areas, enhancing protection during fault conditions.

The device features screw terminals and is engineered with a safety current resistance of 64Ω, a maximum safety current of 203mA, and maximum safety voltage of 250V ensuring secure operation within demanding industrial parameters. The operating temperature range of -20°C to 60°C accommodates diverse environmental conditions.

Constructed from Makrolon®, this barrier supports two channels and facilitates effective signal transmission between safe and hazardous zones. Its IP20 ingress protection rating classifies it for protected indoor industrial use. The unit complies with FM, IEC, UL, and CE safety approvals, reinforcing its acceptance for critical applications.

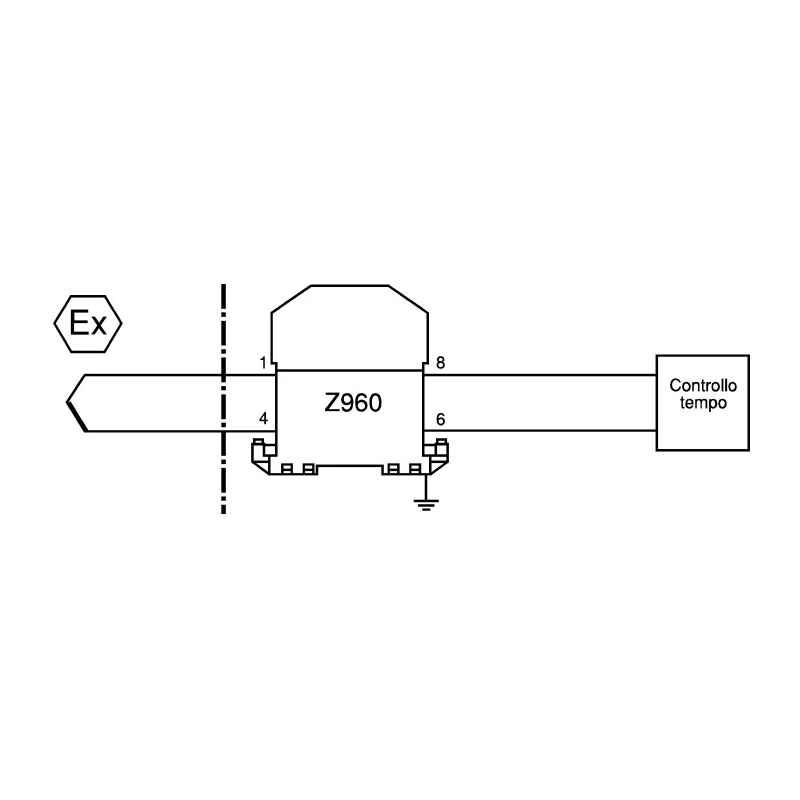

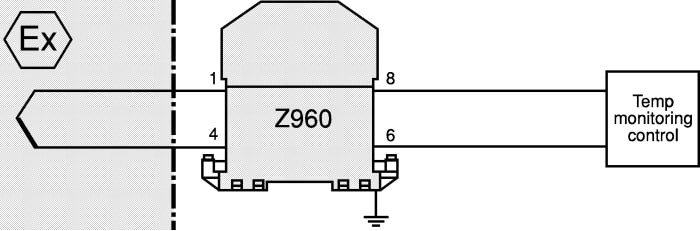

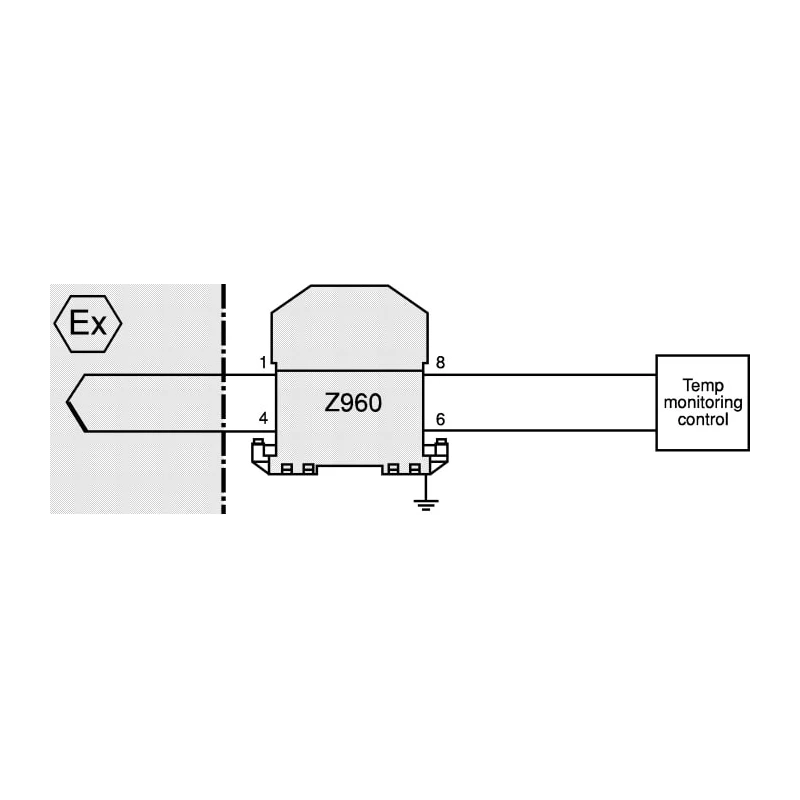

Ideal for signal conditioning and isolation, the Z 960 reliably protects instrumentation interfaces such as thermocouples in manufacturing, laboratory, automation, and process control settings. Its design impedes direct grounding under normal operation and ensures grounding only under fault conditions to maintain intrinsic safety.

Dual channel barrier for two signal paths. Screw terminal type with DIN rail installation. Rated for hazardous areas with ATEX certification. Operates at 10V AC supply voltage and max safety current of 203mA. Durable Makrolon housing with IP20 ingress protection.

Suitable temperature range: -20°C to 60°C. Compliance with FM, IEC, UL, CE certifications. Ensures intrinsic safety in industrial process control. Typical use includes thermocouple isolation and signal conditioning. Discover our comprehensive range of signal conditioners and isolators for industrial safety compliance on EnvMart.
