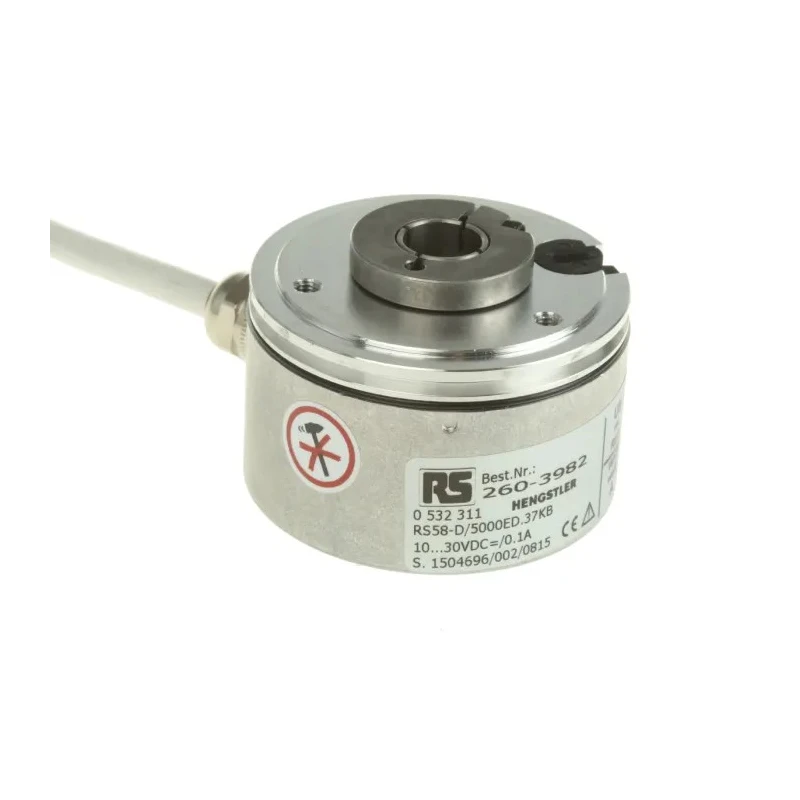

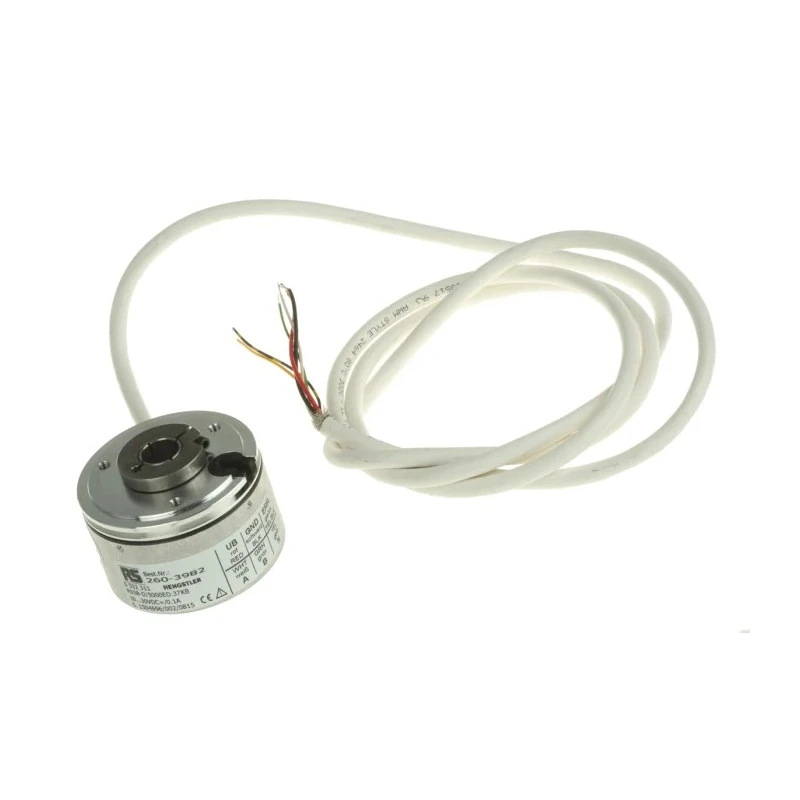

Hengstler RI58-D Series Incremental Encoder 30V dc, 5000 ppr, Push Pull Signal, Hollow Type, 12 mm Shaft RI58-D 5000ED.37KB

Hengstler RI58-D 5000ED.37KB Incremental Encoder is engineered for precision motion control in industrial and automation systems. Operating at 30V dc, this incremental encoder provides 5000 pulses per revolution (ppr), enabling high-resolution feedback suitable for positioning and speed monitoring tasks.

The encoder features a hollow shaft design with a 12 mm diameter, facilitating easy integration into existing machinery shafts. OptoAsic technology enhances the device's reliability by combining optical sensing with ASIC signal processing.

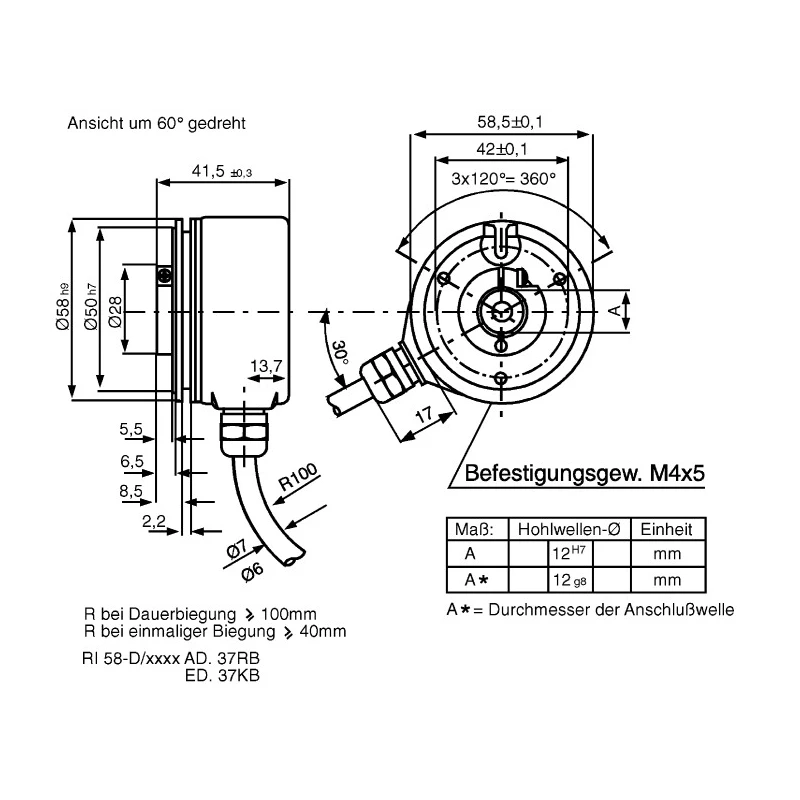

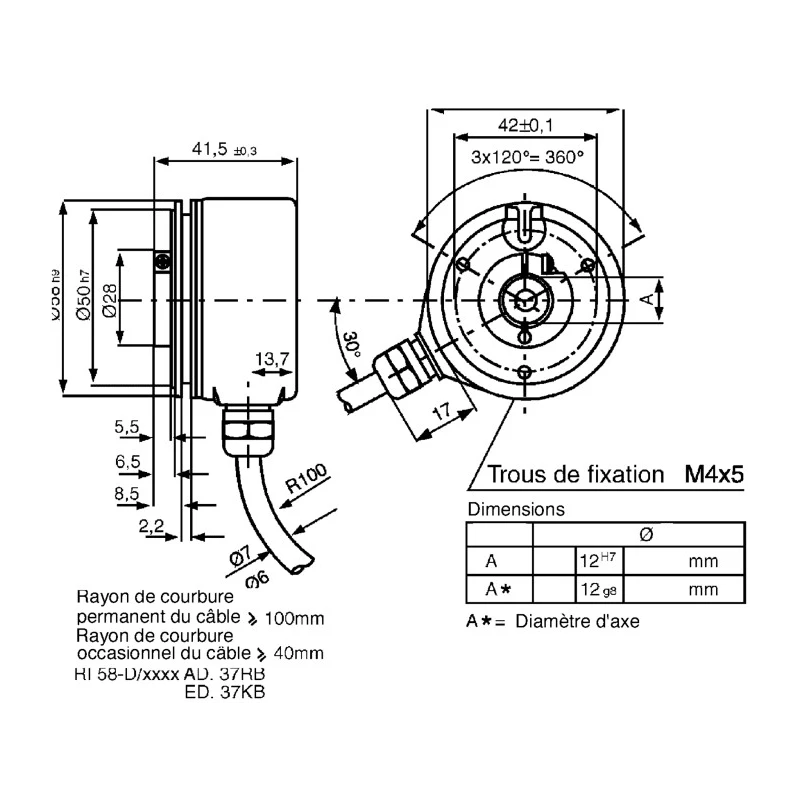

Durability is ensured with IP65 and IP64 ingress protection ratings, safeguarding the encoder from dust and moisture in harsh environments. Its flange mount allows secure attachment to equipment frames, while compact dimensions (41.5 mm width and height, 58 mm depth) minimize space requirements.

Designed for demanding industrial applications, the RI58-D supports a maximum rotational speed of 6000 rpm and a switching frequency of 200 kHz, enabling it to deliver swift and accurate position data. The output signal is of Push Pull type, ensuring compatibility with a variety of control units and drives.

The encoder maintains functionality in temperatures ranging from -10°C to 70°C and meets UL and CE standards, ensuring compliance with international safety and quality regulations. Produced in Germany, it stands as a reliable component for manufacturing, automation, robotics, and motion control industries.

The encoder uses OptoAsic technology for increased reliability and consistent performance. Push Pull interface ensures robust signal transmission to controllers and PLCs. Compact flange mount design facilitates installation in tight industrial spaces.

High pulse rate of 5000 ppr allows precise measurement of rotation. IP65 and IP64 ratings protect against ingress of solids and liquids. Operational temperature range supports diverse environmental conditions. Pulse wave output is a square wave with a 1:1 duty cycle for signal clarity.

Suitable for use in industrial, manufacturing, automation, and laboratory equipment.

This Hengstler incremental encoder is a critical component in motion control sensor applications, ensuring dependable and accurate speed and position feedback within industrial automation systems. Explore the full range of Hengstler sensors and encoders available at EnvMart for enhanced system performance and reliability.
