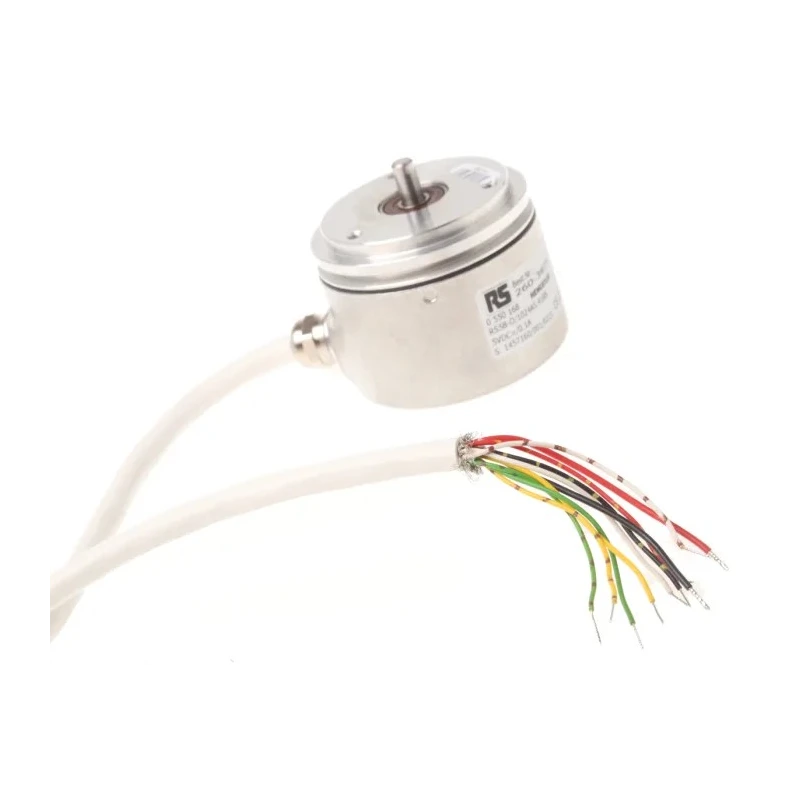

Kubler RI58-O Series Incremental Encoder 5V DC, 1024 PPR, Push Pull Output, Solid Shaft 6 mm, IP65, IP64 RS58-O/1024AS.41RB
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Kubler |
| Model | RS58-O/1024AS.41RB |
| IP Rating | IP65, IP64 |
| Mount Type | Flange |
| Series | RI58-O |
| Overall Width | 56mm |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Shaft Diameter | 6mm |
| Overall height | 56mm |
| Switching Frequency | 300kHz |
| Shaft Type | Solid |
| Pulses per Revolution | 1024ppr |
| Standards/Approvals | UL, CE |
| Maximum Supply Voltage | 5V dc |
| Overall Depth | 80mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 10000rpm |
| Output Signal Type | Push Pull |
| Encoders | OptoAsic technology for greater reliability |
| Pulse shape | Square wave, 1:1 duty cycle |
| Kubler Incremental Incremental Encoder, 1024 ppr, TTL SignalBrand | Kubler |
Key Features
- Designed for flange mounting with IP65 and IP64 ratings ensuring protection in industrial environments.
- Supports a maximum rotational speed of 10000 rpm for high-speed applications.
- Operates reliably between -10°C and 70°C temperature range.
- Features OptoAsic technology for enhanced encoder reliability and square wave pulse shape with 1:1 duty cycle.
- Outputs square wave signals using push-pull output type at 5V DC supply voltage.
- Constructed with a solid shaft of 6 mm diameter and a compact profile (56mm width and height, 80mm overall depth).
- Conforms to UL and CE standards for safety and quality assurance.
- Ideal for motion control sensor applications in automation, manufacturing, and industrial equipment.
Product Description
Hengstler RS58-O/1024AS.41RB is a high-performance incremental encoder designed with 1024 pulses per revolution (PPR) and a robust 6 mm solid shaft, optimized for precise and reliable motion control operations.
This incremental encoder operates at a maximum of 10000 rpm and provides a push-pull output signal type at 5V DC, suitable for various industrial control and automation systems. The encoder features an IP65 and IP64 ingress protection rating, ensuring durability against dust and water ingress, making it suitable for harsh industrial environments.
Equipped with OptoAsic technology, the encoder offers high reliability, delivering a clean square wave output signal with a 1:1 duty cycle for consistent performance. The compact dimensions (56 mm width and height, 80 mm overall depth) and flange mount type allow easy integration into existing mechanical systems.
Designed for accurate position feedback in automation and industrial equipment. Supports a temperature range from -10°C to 70°C. Conforms to UL and CE safety and quality standards. Solid 6 mm shaft for durable mechanical coupling.
Switching frequency up to 300 kHz suitable for various speed and position detection requirements.
Originating from Germany, this Hengstler incremental encoder series offers a precise, reliable solution for motion sensing in sectors such as manufacturing, robotics, and automation industries.
Explore more motion control sensors and Incremental Encoders in the Sensors category at EnvMart for comprehensive selection and expert solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum rotational speed of 10,000 rpm, making it suitable for high-speed applications.
It provides a push-pull output signal type at a supply voltage of 5V DC.
The encoder has an IP65 and IP64 ingress protection rating, ensuring durability against dust and water ingress in industrial environments.
It operates reliably within a temperature range of -10°C to 70°C.
The overall dimensions are 56 mm in width and height, with an overall depth of 80 mm.
This incremental encoder provides 1024 pulses per revolution (PPR).
It features OptoAsic technology, which enhances encoder reliability and provides a clean square wave output signal.
It is constructed with a solid shaft that has a diameter of 6 mm.
It conforms to UL and CE standards for safety and quality assurance.
The encoder supports a switching frequency of up to 300 kHz, suitable for various speed and position detection requirements.
This model is designed for flange mounting, facilitating easy integration into existing mechanical systems.
It is ideal for motion control sensor applications in automation, manufacturing, and industrial equipment.
