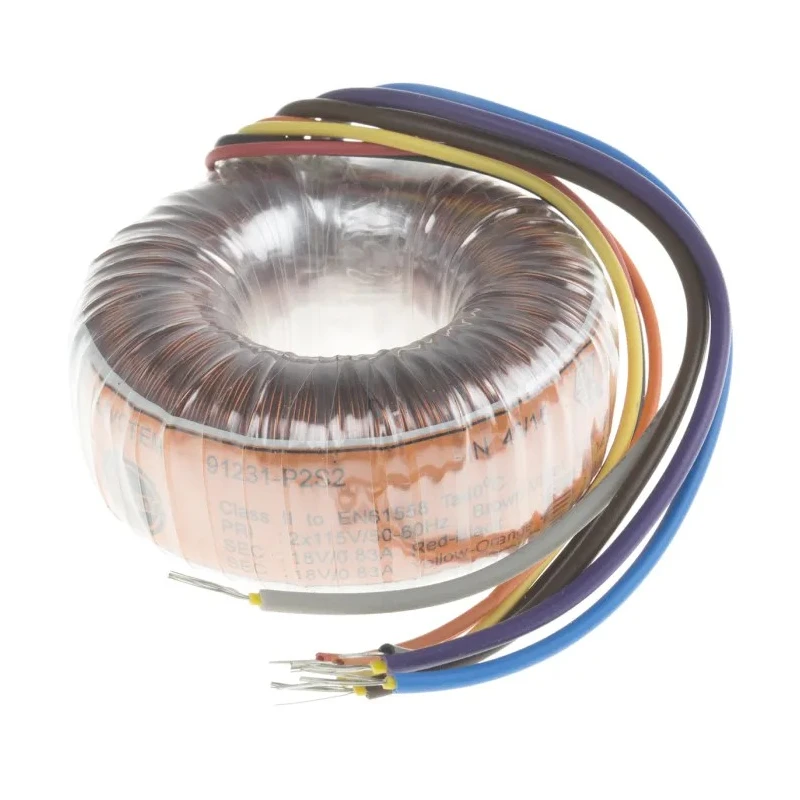

Nuvotem Talema Toroidal Transformer 230 V ac 2 x 18 V ac 2 Output 30 VA RoHS 91944-P2S2

The Nuvotem Talema 91944-P2S2 Toroidal Transformer is engineered for diverse electronic and industrial applications requiring reliable AC voltage transformation. It features a 230 V ac primary input and dual 18 V ac secondary outputs delivering a total power of 30 VA. Its open toroid centre and lead termination type facilitate straightforward mounting and wiring in various configurations.

This transformer operates efficiently within a frequency range of 50 Hz to 60 Hz, making it compatible with common power systems. Its construction ensures an extremely low level of radiated magnetic fields and minimized electrical noise, which is critical in sensitive electronic environments.

The maximum operating temperature is rated at 40°C, ensuring that the unit performs consistently under typical load conditions without degrading.

Designed for safety and compliance, it meets RoHS directives and adheres to international standards such as EN61558, EN60950, and EN60065, with UL506 certification providing added assurance.

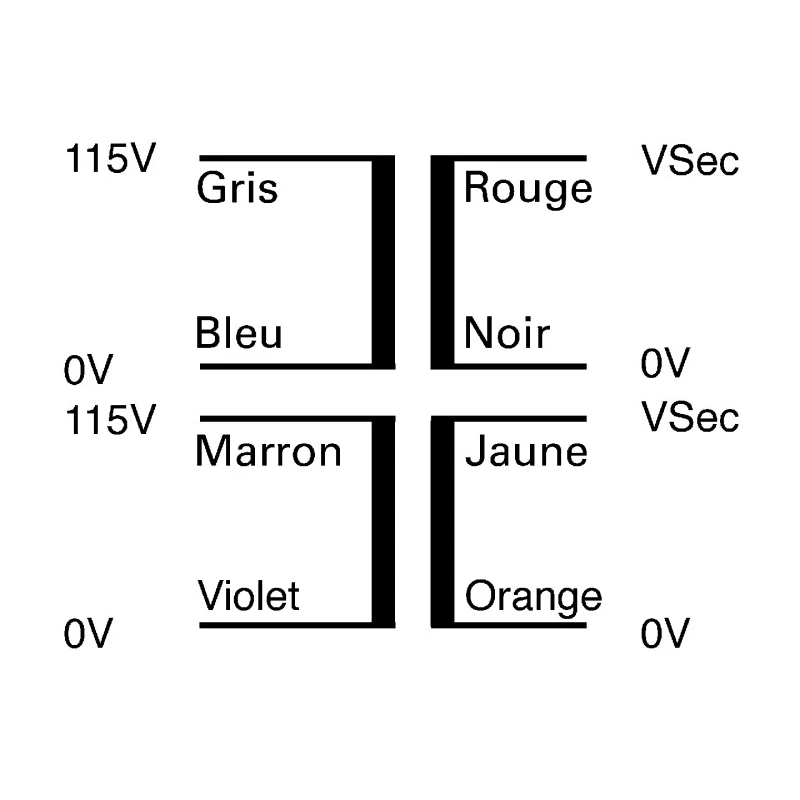

The unit includes a full mounting kit and is double insulated on the primary side for enhanced safety. The single primary winding can be configured for either 115 V or 230 V operation, while the twin secondary windings allow flexibility in output voltages and currents, either in series, parallel, or independently used.

Its lightweight design at 450 grams and compact dimensions (70mm diameter, 32mm height) make it ideal for compact installations requiring efficient power transformation. Compact toroidal design with open centre and lead termination for ease of installation.

Suitable for 50 to 60 Hz operating frequency ensuring compatibility with standard power supplies. High efficiency with low magnetic field radiation and minimal induced noise. Maximum operating temperature of 40°C ensures reliability under typical working conditions.

Complies with RoHS standards, making it environmentally friendly and safe for use. Includes a full mounting kit for secure and convenient installation. Double insulated primary leads enhance electrical safety and durability.

Constructed with single primary winding; secondary windings can be configured in series or parallel. Lightweight design at 450 grams allows for easy handling and integration. Conforms to international standards EN61558, EN60950, EN60065, and approvals UL506, EN61558.

This Toroidal Transformer is suitable for use in electronic components, power supplies, industrial machinery, control systems, and laboratory equipment where compact and efficient voltage transformation is required. Its reliable performance meets demanding operational conditions in manufacturing, HVAC systems, and other commercial electrical installations.
