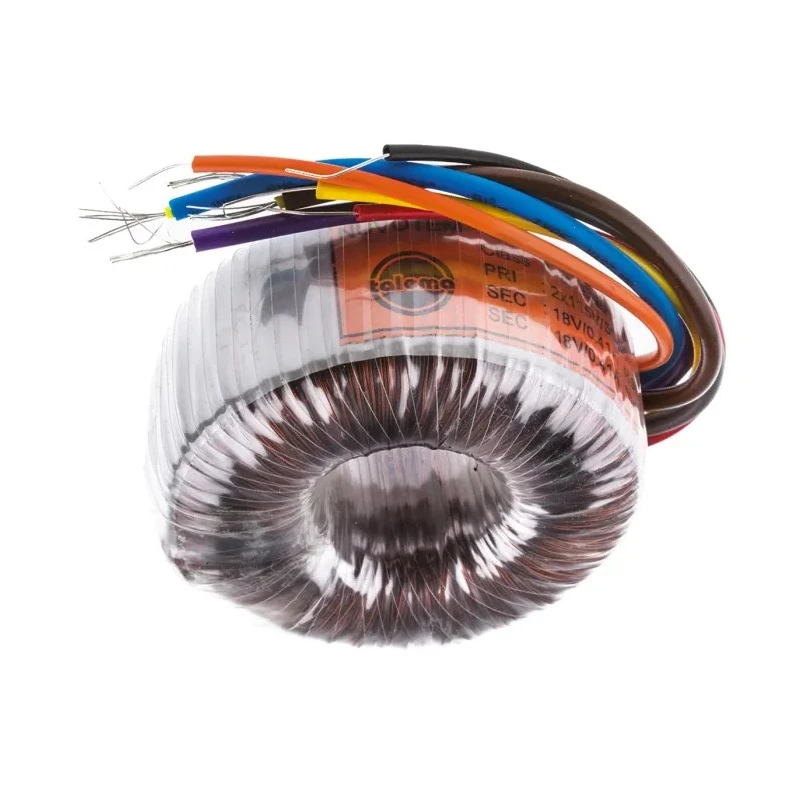

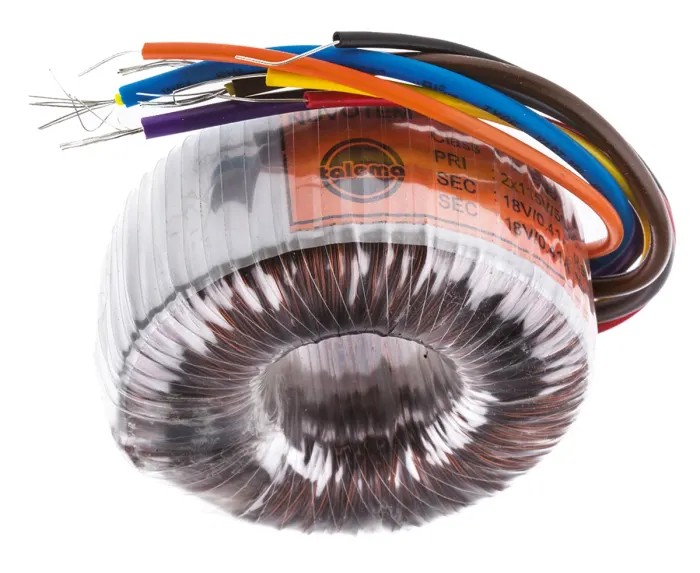

Nuvotem Talema Toroidal Transformer 115 V AC, 230 V AC Primary, 2 x 18 V AC Secondary, 15 VA, Dual Secondary Dual 91226-P2S2

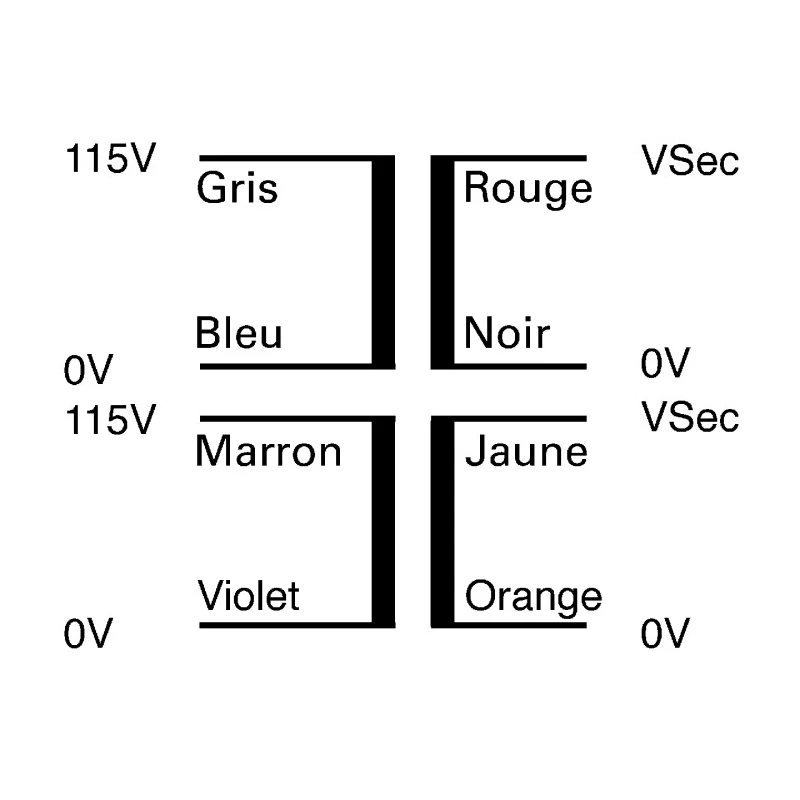

Nuvotem Talema 91226-P2S2 Toroidal Transformer is a high-quality electrical component engineered for power supply applications requiring dual voltage and current outputs. The transformer features dual primary windings that can be connected in series to achieve 230 V AC or parallel for 115 V AC operation, delivering flexibility for various electrical designs.

This Toroidal Transformer provides two 18 V AC secondary outputs that can be used independently or in series/parallel configurations, offering a secondary current capacity of 420 mA, suitable for low power applications at 15 VA rating.

Its compact form factor, comprising a diameter of 60 mm and a height of 31 mm, allows installation in space-constrained environments. The transformer operates efficiently between 50 Hz and 60 Hz frequencies and sustains a maximum operating temperature of 180°C, ensuring robustness in demanding industrial and commercial settings.

The device is designed with a screw mounting type and primary terminal termination for a secure and straightforward setup. It complies with critical safety and performance standards such as VDE0550, UL5, BS415, UL506, EN61558, and EN60065. The open style build reduces iron loss and significantly lowers magnetic field radiation and audible noise.

Additional features include double insulated primary leads for enhanced electrical safety, and it is delivered with a comprehensive mounting kit for convenience. This transformer is ideal for use in industrial power supplies, instrumentation, HVAC controls, and other electrical applications requiring reliable transformer performance.

Features primary voltages of 115 V AC and 230 V AC with dual primary winding configuration. Provides dual secondary outputs of 2 x 18 V AC suitable for different connection modes. Capable of delivering a secondary current up to 420 mA.

Compact design with a 60 mm diameter and 31 mm height for easy installation. Operates efficiently within 50 Hz to 60 Hz frequency range. Maximum operating temperature rated at 180°C for reliable performance. Constructed with screw mounting and primary terminal termination for secure fitting.

Meets rigorous standards and approvals including VDE0550, UL5, BS415, UL506, and EN61558. Open style construction with low iron loss and minimal radiated magnetic field. Supplied with a full mounting kit and double insulated primary leads for safety.
