Nuvotem Talema Toroidal Transformer 230 V ac Primary 2 x 30 V ac Secondary 300 VA 2 Output 91965-P2S2

The Nuvotem Talema 91965-P2S2 is a high-quality toroidal transformer engineered for electronic and power supply applications requiring reliable voltage conversion and low electromagnetic interference. It features a primary voltage of 230 V ac and dual secondary voltages of 2 x 30 V ac, providing flexible power delivery with two independent outputs rated at 300 VA.

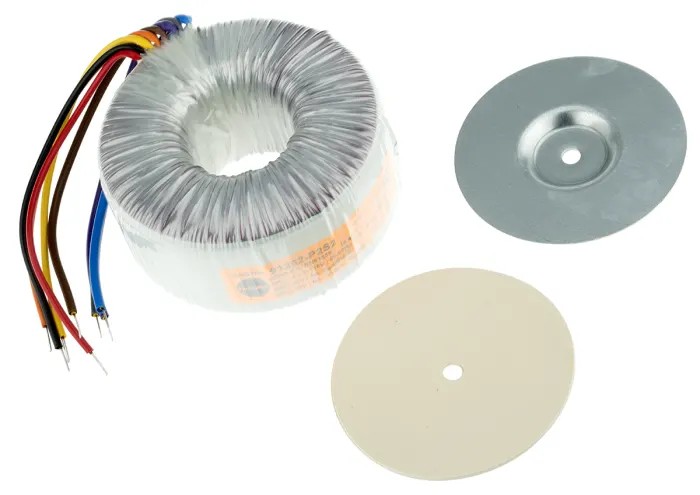

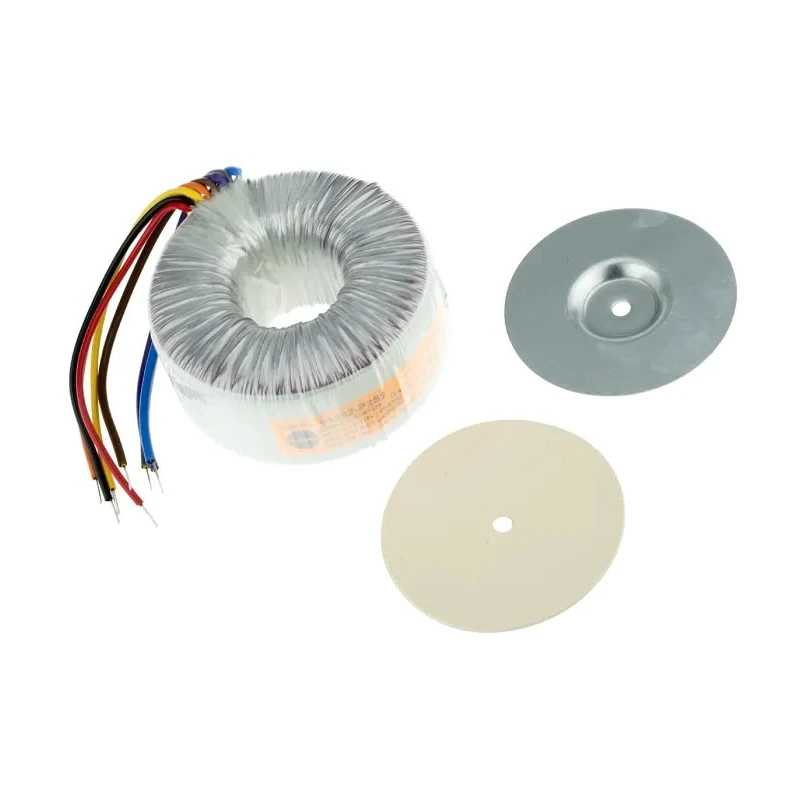

This transformer is constructed with an open toroid center design and utilizes a single primary winding to deliver efficient magnetic coupling and low core losses. The compact form factor, with a diameter of 115 mm and a height of 58 mm, allows it to fit comfortably into various electrical assemblies while maintaining a weight of approximately 2.3 kg.

Its electrical characteristics accommodate operating frequencies from 50 Hz to 60 Hz, suitable for standard power line applications, and a maximum operating temperature of 40 degrees Celsius ensures performance stability under typical load conditions. The termination is provided by leads for straightforward connections, complemented by a full mounting kit for secure installation.

Key functional advantages include a very low level of radiated magnetic field, which minimizes interference with surrounding components, and extremely low induced noise, enabling use in sensitive electronic environments. The double insulated primary leads enhance operational safety by preventing electrical faults.

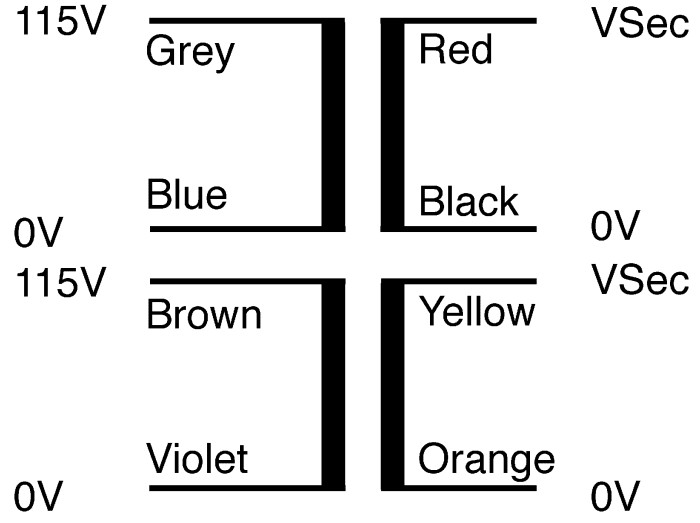

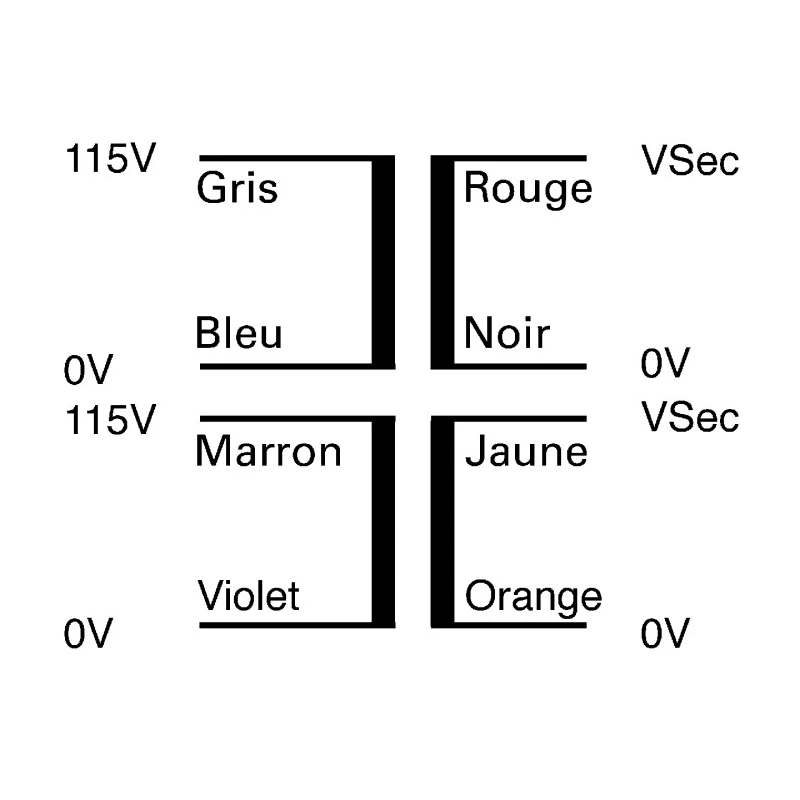

Open style Toroidal Transformer with 230/115 Vac primary winding configurations. Two secondary windings capable of series, parallel, or independent use. Supplied mounting kit facilitates stable and convenient fixture. 100% electrical and flash tested to meet stringent quality requirements.

Complies with RoHS environmental and safety standards along with EN61558, EN60950, and EN60065 certifications. Ideal for industrial, laboratory, commercial, and HVAC power supply applications.

This transformer is a dependable choice for systems demanding high efficiency, low noise, and compact design. Explore more transformers and electronic components in the Electronics & Electricals category at EnvMart.
