Nuvotem Talema Toroidal Transformer 230 V ac Primary, 2 x 18 V ac Secondary, 2 Outputs, 15 VA 0015P1-2-018

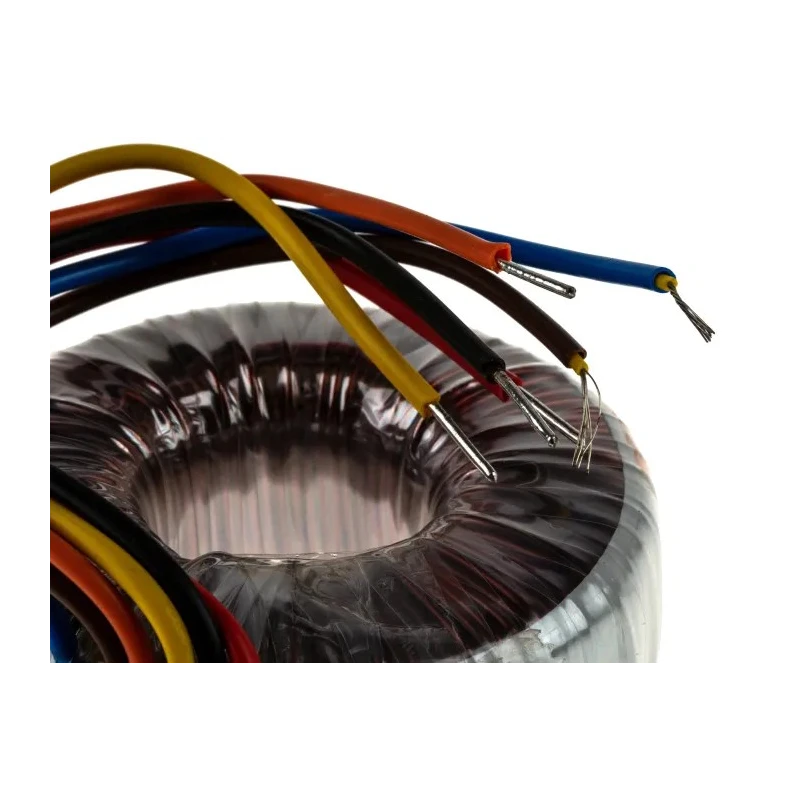

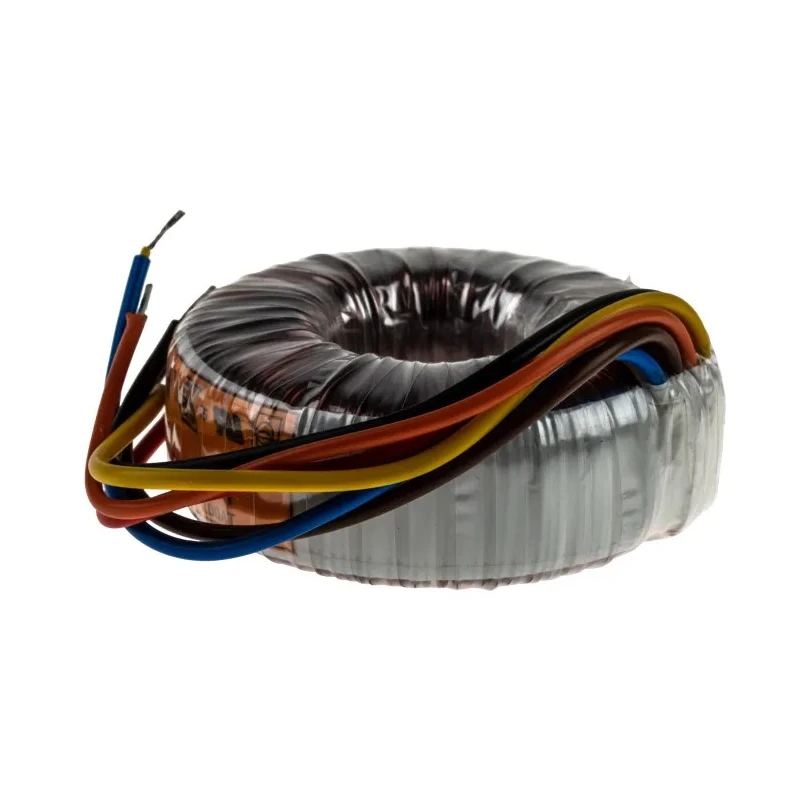

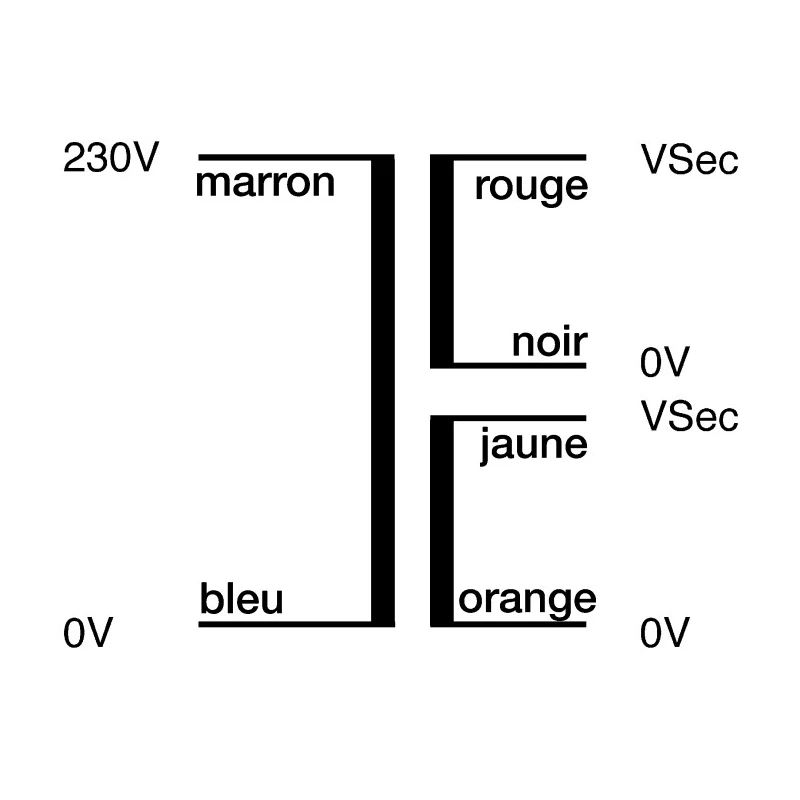

The Nuvotem Talema 0015P1-2-018 toroidal transformer is a high-quality electrical component designed for industrial and commercial power applications. It features a 230 V ac primary winding suitable for both 50 and 60 Hz supplies and provides dual secondary windings rated at 18 V ac each, capable of being used independently, in series, or in parallel to meet varying circuit requirements.

This unit delivers a power rating of 15 VA and is characterized by a compact open style construction that reduces size and weight to only 300 grams. The transformer is engineered for robust performance over a broad frequency range from 50 Hz to 450 Hz, and its operational temperature tolerance spans from 0°C to 180°C, ensuring reliable functioning in diverse environments.

Termination is accomplished via copper conductor wire leads, providing durable and secure electrical connections. The transformer conforms to recognized international standards, including UL5, UL506, VDE0550, EN60065, BS415, and EN61558, guaranteeing safety and regulatory compliance.

Additional features include extremely low magnetic field leakage and minimal induced electrical noise, making it suitable for sensitive audio and medical applications. Safety is enhanced by double insulated primary leads and thorough electrical flash testing. The product is supplied with a complete mounting kit for straightforward installation.

Its small size, low weight, and superior electrical performance make this Toroidal Transformer ideal for use in industrial control systems, audio equipment, power supplies, and electronic instrumentation. It is robustly manufactured to provide high efficiency and durability in demanding settings.

Features two independent secondary windings each rated at 18 V ac. Compact open style design with low weight of 300 grams. Operates efficiently from 50 Hz up to 450 Hz frequency range. High operating temperature range from 0°C to 180°C ensures durability.

Copper conductor wire termination provides reliable electrical connections. Complies with multiple standards including UL5, UL506, VDE0550, EN60065, BS415, and EN61558. Includes full mounting kit for easy installation. Extremely low magnetic field radiation and low induced noise (hum).

Double insulated primary leads for enhanced safety. Tested for 100% electrical and flash safety assurance. Explore more high-quality transformers and electrical components in the EnvMart Transformers category to meet your industrial and laboratory needs.
