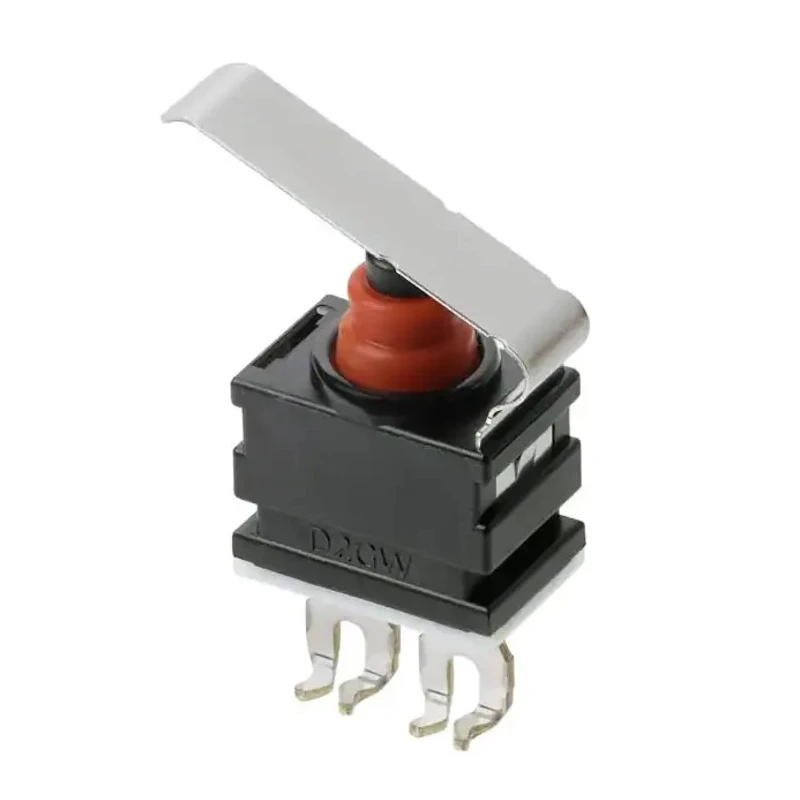

Omron Hinge Lever Subminiature Micro Switch, PCB Terminal, 1mA, 13.5 V dc, SPST, IP67 D2GW-A13H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Model | D2GW-A13H |
| IP Rating | IP67 |
| Series | D2GW |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 13.5V dc |
| Switch Contact Current | 1mA |
Key Features
- This switch features a sealed ultra subminiature design for high reliability and compactness.
- Equipped with a straight hinge lever actuator for precise and versatile operation.
- Supports low contact current of 1mA suitable for micro-load applications.
- Offers protection against dust and water ingress with IP67 rating.
- Operates reliably across a wide temperature range from -40°C to 85°C.
- RoHS compliant, ensuring environmental safety and sustainability.
- Designed with a symmetrical shape for easier integration and actuator variations.
- Press-fit terminals enable solder-less connection, simplifying PCB assembly.
Product Description
The Omron D2GW-A13H is a high-performance hinge lever subminiature micro switch designed for precision and durability in demanding electrical and automation environments. Featuring a PCB terminal connection and a low switch contact current rating of 1mA, it is ideal for sensitive micro-load switching tasks.
The switch boasts an IP67 rating, providing robust protection against the ingress of dust and water, which makes it suitable for harsh industrial and outdoor conditions. It is engineered to operate reliably within an extensive temperature range from -40°C to 85°C.
Its symmetrical shape simplifies design integration and enables versatile actuator variations to accommodate different operating mechanisms. The press-fit terminals facilitate solder-less contact, reducing assembly time and increasing reliability on printed circuit boards.
This series offers quiet operation through a sliding structure, contributing to noise-sensitive environments. The D2GW series, especially the D2GW-A13H model, adheres to RoHS compliance, underlining commitment to environmental standards.
Applications include industrial machinery, electronic devices, instrumentation, and control systems requiring dependable micro switch performance. The product is manufactured in China and classified as new condition.
This switch features a sealed ultra subminiature design for high reliability and compactness. Equipped with a straight hinge lever actuator for precise and versatile operation. Supports low contact current of 1mA suitable for micro-load applications.
Offers protection against dust and water ingress with IP67 rating. Operates reliably across a wide temperature range from -40°C to 85°C. RoHS compliant, ensuring environmental safety and sustainability. Designed with a symmetrical shape for easier integration and actuator variations.
Press-fit terminals enable solder-less connection, simplifying PCB assembly. Suitable for various industrial, automation, and electronic control applications. Explore the Electronics & Electricals category for comprehensive micro switch options and related components at EnvMart.
Explore more products in our Micro Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact configuration of this micro switch is SPST (Single Pole Single Throw).
The maximum operating temperature for the D2GW-A13H is 85°C.
This switch has an IP67 rating, providing protection against dust and water ingress.
The minimum operating temperature for the D2GW-A13H is -40°C.
The switch contact current rating for this model is 1mA, making it suitable for micro-load applications.
This model uses a hinge lever actuator for precise and versatile operation.
The D2GW-A13H is equipped with a PCB terminal for easy integration into printed circuit boards.
Yes, this micro switch is RoHS compliant, ensuring it meets environmental safety standards.
This micro switch is suitable for various applications including industrial machinery, electronic devices, instrumentation, and control systems.
The country of origin for this micro switch is China.
The press-fit terminal allows for solder-less connections, simplifying PCB assembly and increasing reliability.
The D2GW-A13H belongs to the D2GW series of micro switches.
