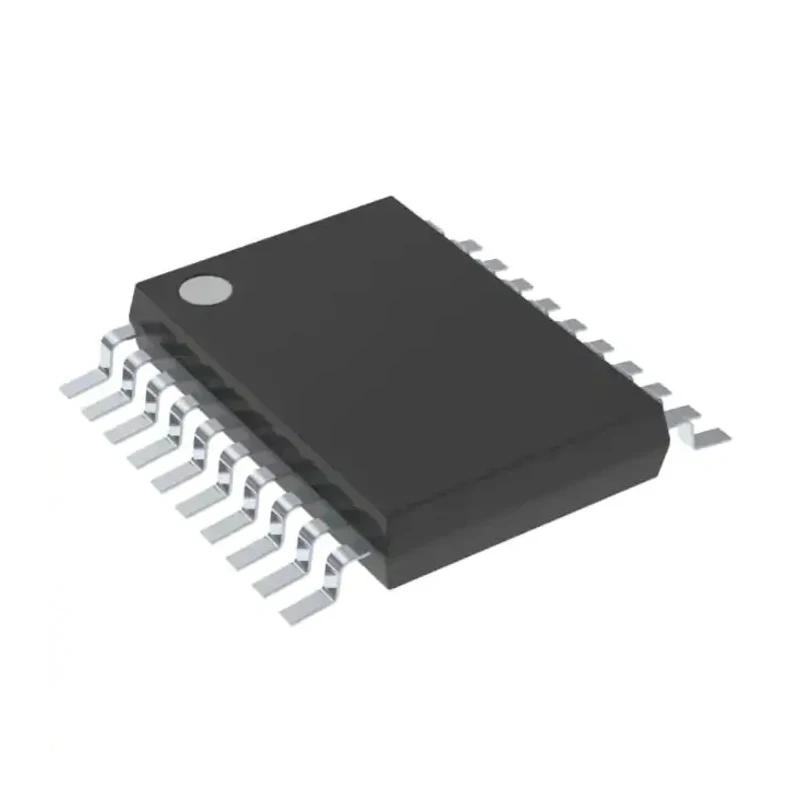

Microchip Digital to Analogue Converter DAC 8 bit 4-Channel SPI interface 20-Pin TSSOP MCP48FVB04-20E/ST

Free Delivery in India | Lowest Global Shipping Charges

Microchip Digital to Analogue Converter DAC 8 bit 4-Channel SPI interface 20-Pin TSSOP MCP48FVB04-20E/ST

Name: Microchip Digital to Analogue Converter DAC 8 bit 4-Channel SPI interface 20-Pin TSSOP MCP48FVB04-20E/ST
Brand: Microchip
SKU: 308811
Price: 243.41 INR
Availability: InStock



Category Digital to Analogue Converter Brand Microchip Condition New

Specifications

Country of Origin	India
Resolution	8 bit
Brand	Microchip
Height	1.2mm
Length	4.5mm
Model	MCP48FVB04-20E/ST
Width	3.1mm
Settling Time	7.8μs
Output type	Analogue Voltage
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Number Of Channels	4
Interface Type	SPI
Architecture	Resistor Ladder
Pin Count	20
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	2.7V

Key Features

Utilizes resistor ladder architecture for voltage output conversion.
Operates with supply voltage range from 2.7V to 5.5V.
Supports SPI interface for digital communications.
Compact package with dimensions 4.5mm length, 3.1mm width, and 1.2mm height.
Operating temperature range from -40°C to 125°C ensures robustness.
Fast settling time of 7.8 microseconds for efficient signal processing.
Buffered voltage output suitable for precise analogue voltage applications.
No automotive certification or standards approvals included.

Product Description

Microchip MCP48FVB04-20E/ST is an 8-bit digital to analogue converter (DAC) featuring a resistor ladder architecture with four independent channels. Packaged in a 20-pin TSSOP form factor, this converter supports SPI interface communication, making it suitable for a wide range of electronic and semiconductor applications.

It operates reliably within a voltage range of 2.7V to 5.5V and is designed for use within an ambient temperature range of -40°C to 125°C, catering to demanding industrial environments. The device offers a fast settling time of 7.8 microseconds, ensuring high-speed analog signal conversion.

The compact physical dimensions of 4.5mm length, 3.1mm width, and 1.2mm height allow for space-efficient PCB layouts. This DAC provides buffered voltage output and is useful in instrumentation, industrial control, data acquisition, and other electronic interface applications where precise voltage conversion is necessary.

Utilizes resistor ladder architecture for digital-to-analog voltage conversion. 8-bit resolution with four output channels for versatile applications. Compatible with SPI interface protocols for easy data communication. Wide supply voltage range supports diverse power source conditions.

High operating temperature range ensures reliability in harsh environments. Fast settling time optimizes performance in time-sensitive signals. Compact 20-pin TSSOP package suitable for dense PCB assemblies. Buffered voltage output for stable analog signal generation.

This digital to analogue converter is ideal for industrial, semiconductor, electronic component manufacturing, and laboratory instrumentation uses. The MCP48FVB04-20E/ST combines precision, speed, and compactness, supporting efficient system designs.

Explore more Digital to Analogue Converters and related microchip components on EnvMart for your advanced electronics projects.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features an 8-bit resolution, allowing for 256 discrete voltage levels in its output.

It operates with a supply voltage range from 2.7V to 5.5V, accommodating various power source conditions.

This unit supports four independent output channels, providing versatility for multiple applications.

It has a fast settling time of 7.8 microseconds, which is beneficial for time-sensitive signal processing.

This model supports SPI interface communication, making it compatible with various digital systems.

The dimensions are 4.5mm in length, 3.1mm in width, and 1.2mm in height, suitable for compact PCB layouts.

It can operate in an ambient temperature range from -40°C to 125°C, ensuring reliability in harsh environments.

The output type is buffered analogue voltage, which is suitable for precise voltage applications.

It utilizes a resistor ladder architecture for voltage output conversion, which is common in DAC designs.

The MCP48FVB04-20E/ST comes in a 20-pin TSSOP package, allowing for efficient integration into circuits.

The country of origin for this digital to analogue converter is India.

It is suitable for applications in instrumentation, industrial control, data acquisition, and other electronic interfaces where precise voltage conversion is necessary.
