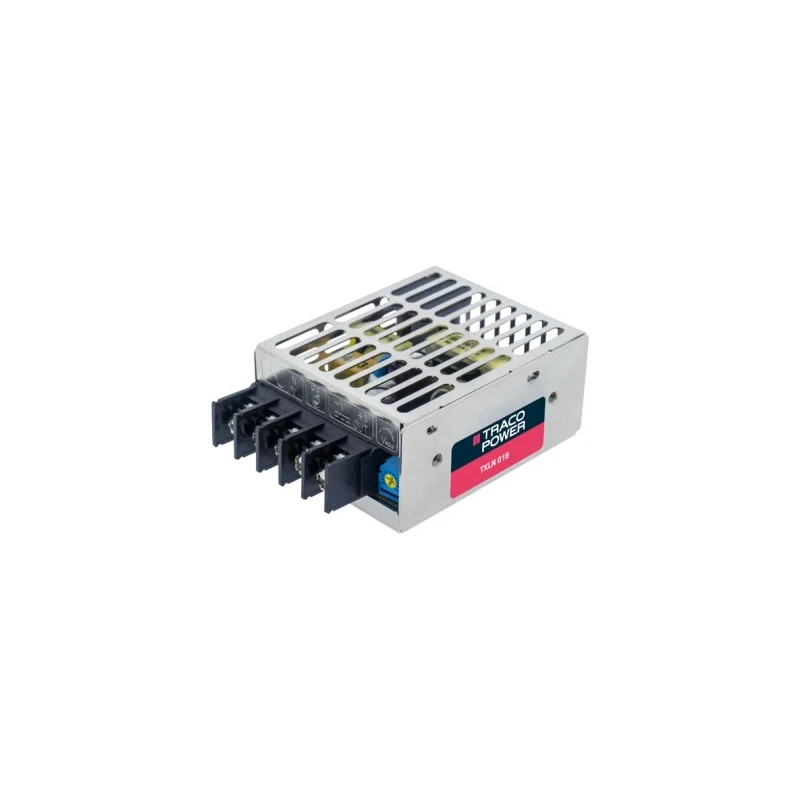

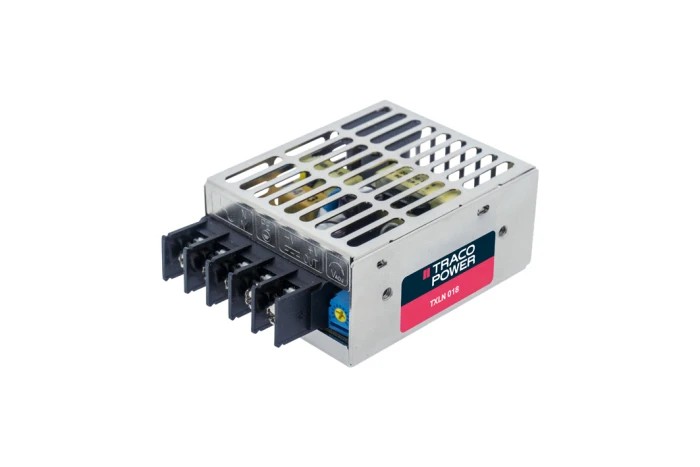

TRACOPOWER TXLN 018-115 Switching Power Supply 15V 18W Universal Input 85-264V ac 1.2A Output TXLN 018-115

TRACOPOWER TXLN 018-115 Switching Power Supply 15V 18W is an encased metal power supply designed to deliver reliable DC power with universal AC input ranging 85V to 264V. Its compact size and screw terminal block connection facilitate easy mounting and wiring, making it suitable for various industrial, commercial, and electronic equipment.

The power supply outputs a regulated 15V voltage at a maximum current of 1.2A, providing 18 watts of power. The unit is convection cooled, eliminating the need for fans and enhancing operational reliability in environments with dust or debris. It includes integrated protections against short circuits, overcurrent, and overvoltage, ensuring safe and stable performance.

Designed for cost-critical applications, the TXLN 018-115 meets stringent European EMC standards including EN 62368-1 and related immunity and emission regulations, as well as the Low Voltage Directive. Its efficiency rating of up to 84% helps minimize power loss and heat, aiding in energy savings and longer component life.

The power supply operates over a wide temperature range from -20°C to 70°C, expanding its usability across diverse climates and industrial settings. With a low-profile metal enclosure measuring 50.8mm wide by 28mm deep, it is ideal for space-constrained installations. Its weight is 130 grams, supporting easy handling and mounting.

This product finds use in industrial automation, electronic control panels, telecom systems, and other applications needing stable, efficient DC power supplies. Operates with a wide input voltage range from 85V ac to 264V.

Provides a stable 15V DC output voltage at 1.2A current. Features a low-profile metal case with screw terminal block for easy installation. Incorporates short circuit, overload, and overvoltage protection for reliable operation.

Convection cooled design eliminates the need for a fan, reducing noise and maintenance. High efficiency of up to 84% reduces power loss and heat generation. Wide operating temperature range from -20°C to 70°C supports varied environments.

Complies with UL 62368-1, REACH, and multiple EN EMC standards ensuring regulatory compliance. Compact dimensions of 50.8mm width and 28mm depth suitable for constrained spaces. Ideal for industrial, electronic, and automation applications requiring reliable DC power.
