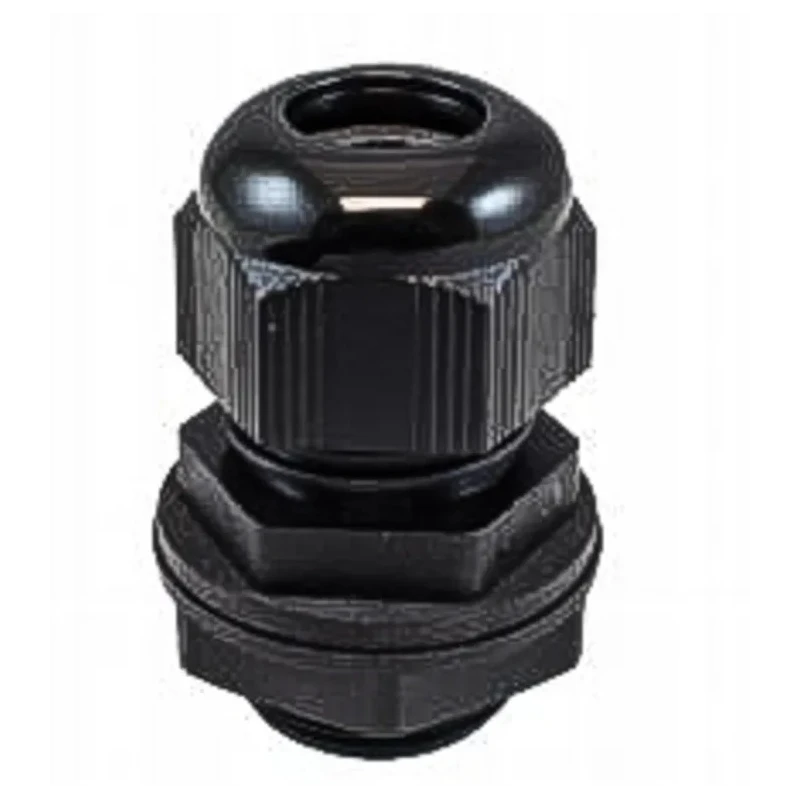

Alpha Wire FIT Wire Management Series Black Polyamide 6 Cable Gland, 3/8 in NPT Thread, 5 mm Min., 10 mm Max., IP68

Alpha Wire PNC3/8 BK080 Cable Gland is part of the FIT Wire Management Series and is constructed from high-grade polyamide 6 material in black color. It features a 3/8 inch NPT threaded design suitable for cables with diameters between 5 mm and 10 mm. This cable gland is engineered for industrial and commercial electrical applications where robust and reliable cable strain relief is critical.

The gland offers IP68 and IP66 ingress protection ratings, making it dust-tight and capable of withstanding submersion in water at pressures up to 5 bar for 30 minutes. It is equipped with a chloroprene rubber O-ring and includes a locknut for secure mounting, ensuring a watertight and durable connection.

Designed with a thread length of 15 mm and an outer thread diameter of 17.14 mm, the gland maintains compatibility with standard NPT 3/8 inch fittings. It operates effectively within a broad temperature range of -30°C to 150°C, suitable for both permanent and intermittent conditions encountered in industrial environments.

Alpha Wire cable glands conform to CSA and UL standards, confirmed by their V2 flammability rating as per UL94, indicating safe behavior under fire exposure. These glands are ideal for use in telecommunications, control and instrumentation wiring, data and electrical power cables, and other demanding applications requiring robust cable entry solutions.

The product's reliable sealing and strain relief properties protect wiring infrastructure from mechanical stress, dust, dirt, and moisture ingress, enhancing system durability and performance. The cable gland's versatility includes usage in industrial automation, manufacturing plants, electrical enclosures, and outdoor installations exposed to harsh conditions.

Constructed from durable polyamide 6 with black color for enhanced protection. Fits cables with diameters ranging from 5 mm minimum to 10 mm maximum. Features a 3/8 inch NPT threaded body with a 15 mm thread length. Rated for IP68 and IP66 ingress protection ensuring water and dust resistance.

Operates under a temperature range of -30°C to 150°C for varied industrial environments. Includes a locknut and chloroprene rubber O-ring seal for secure installation. Meets CSA and UL standards with V2 flammability rating according to UL94.

Suitable for telecommunications, control, instrumentation, and power cable applications. Provides high-quality strain relief and protection against wear and tear. Explore this and other Cable Glands in the Alpha Wire series for reliable and high-performance wire management solutions available at EnvMart.
