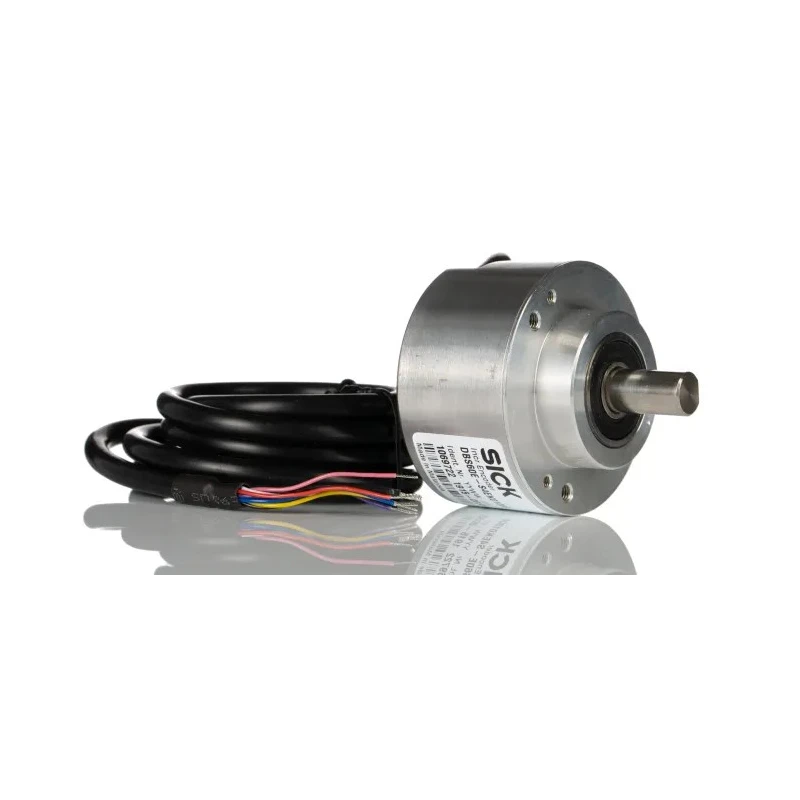

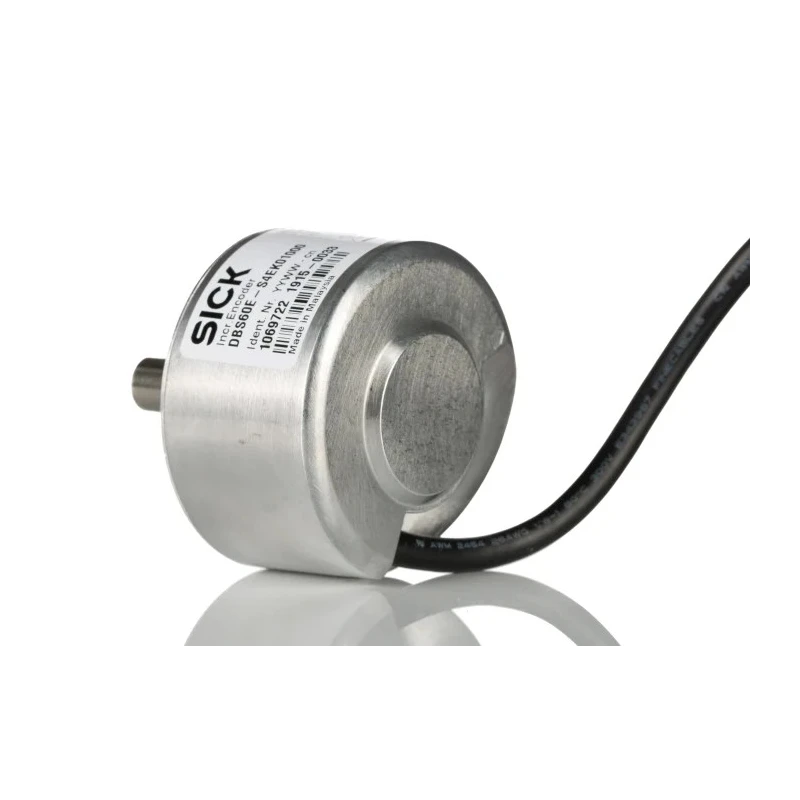

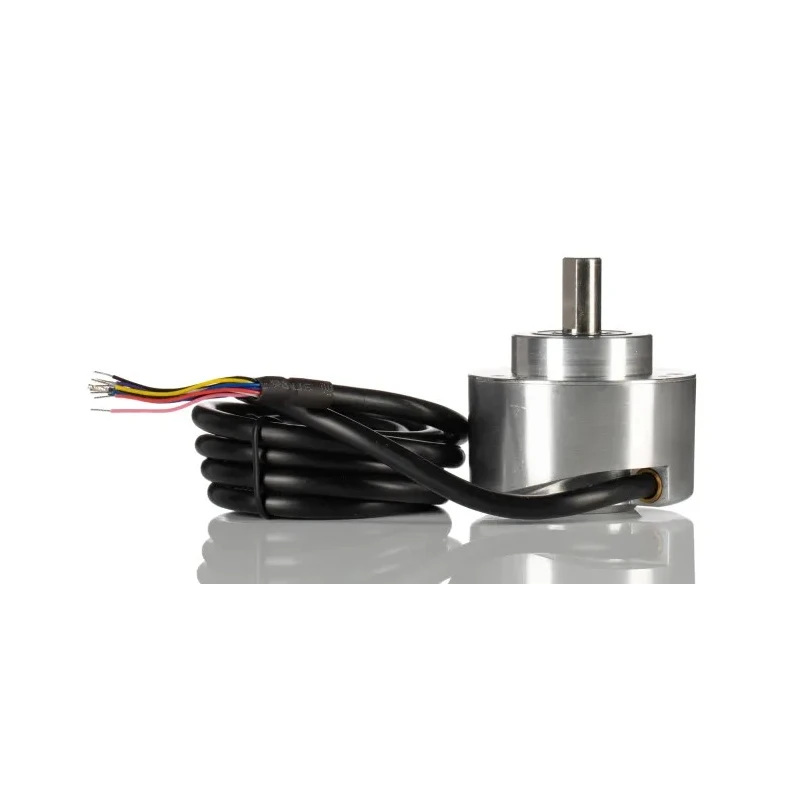

SICK Incremental Encoder DBS60 Core Series 27V 1000 ppr HTL Signal Solid Shaft 10 mm DBS60

The SICK DBS60 Core Series incremental encoder model DBS60 offers a 27V maximum supply voltage with a high resolution of 1000 pulses per revolution (ppr). It features an HTL output signal type with a solid shaft design of 10 mm diameter, making it ideal for precise position and motion control measurements in industrial automation.

This compact encoder has a 58 mm diameter housing and an installation depth of 44.35 mm, saving valuable space in equipment design. It supports rotational speeds up to 9000 rpm and operates reliably across a temperature range from -20°C to 85°C, suitable for various demanding environments. The device's IP65 rating ensures robust protection against dust and water, making it appropriate for harsh industrial conditions.

The encoder's cable terminal type enables flexible and secure connectivity. It is compliant with EMC standards EN 61000-6-2 and EN 61000-6-3, ensuring reliability in electrically noisy environments. The switching frequency of 300 kHz supports high precision in signal detection and processing.

Ideal for applications such as asynchronous motor position detection, elevator control, packaging machine automation, warehousing logistics, conveyor speed measurement, and PCB device height monitoring. The encoder's rugged construction and versatile mounting options, including full shaft mounting, enhance its suitability for factory and logistics automation.

Manufactured in Malaysia, the DBS60 encoder delivers durability with a design that balances compactness and performance. This product contributes to accurate measurement of position, speed, and distance for industrial, automation, and control gear applications.

Compact 58 mm diameter for space optimization. Solid shaft with 10 mm diameter for mechanical strength. High speed capability up to 9000 rpm. IP65 rated housing for protection in harsh environments. Wide operating temperature range from -20°C to 85°C.

Cable terminal connectivity for flexible wiring. Compliance with EN 61000-6-2 and EN 61000-6-3 EMC standards. Switching frequency of 300 kHz for precise signal output. Versatile mounting options for various industrial setups.

Reliable performance in automation and motion control tasks. Explore more motion control sensors and Incremental Encoders at EnvMart for industrial and automation solutions.
