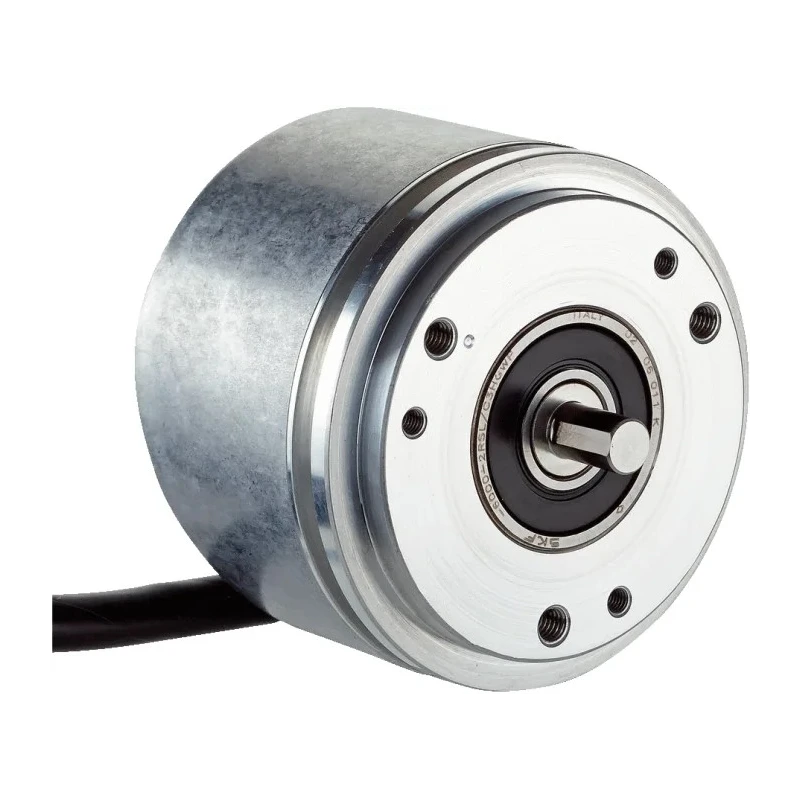

SICK Incremental Encoder DBS60 Core Series 30V 1024 PPR TTL HTL Solid Shaft 6mm DBS60

The SICK DBS60 Core Series Incremental Encoder DBS60 model provides a robust and compact rotary encoder solution designed for precise position, speed, and distance measurement in industrial motion control environments.

This model supports a maximum supply voltage of 30V and delivers an output signal with 1024 pulses per revolution (ppr), utilizing TTL and HTL signal types. Its solid shaft design features a 6 mm shaft diameter that enables reliable mechanical coupling.

The encoder housing diameter is 58 mm with an overall depth of 44.35 mm, making it suitable for installations where space constraints are a consideration. Its IP65 rating ensures resistance to dust and water ingress, allowing operation in harsh industrial settings.

Operating temperature ranges from -30°C to 100°C, and the encoder supports a maximum rotation speed of 9000 rpm. The switching frequency of 300 kHz supports high-speed signal processing in automation systems.

Mounting flexibility is provided through face mount and servo flange options with various hole patterns. The cable-terminated terminal type facilitates reliable and straightforward electrical connection, supporting TTL/HTL interfaces.

Designed and manufactured in Malaysia, the DBS60 Core Series Incremental Encoder complies with electromagnetic compatibility standards EN 61000-6-2 and EN 61000-6-3, ensuring stable operation in industrial automation applications.

The encoder’s rugged design and large bearing distance ensure high shaft load capacity and longer service life. It offers diverse installation options including hollow and solid shaft variants, although this model features a solid shaft.

The product serves applications such as asynchronous motors, elevators, packaging machines, warehousing and transport logistics, and conveyor speed measurement.

With a resolution of up to 10,000 pulses, the DBS60 Core Series is engineered for factory and logistics automation, delivering precision and reliability in position and speed sensing tasks. This product supports jerk-free acceleration and deceleration control, ensuring smooth machine operation.

Explore the extensive range of industrial sensors and automation components like the SICK DBS60 on EnvMart for your advanced motion control needs.
