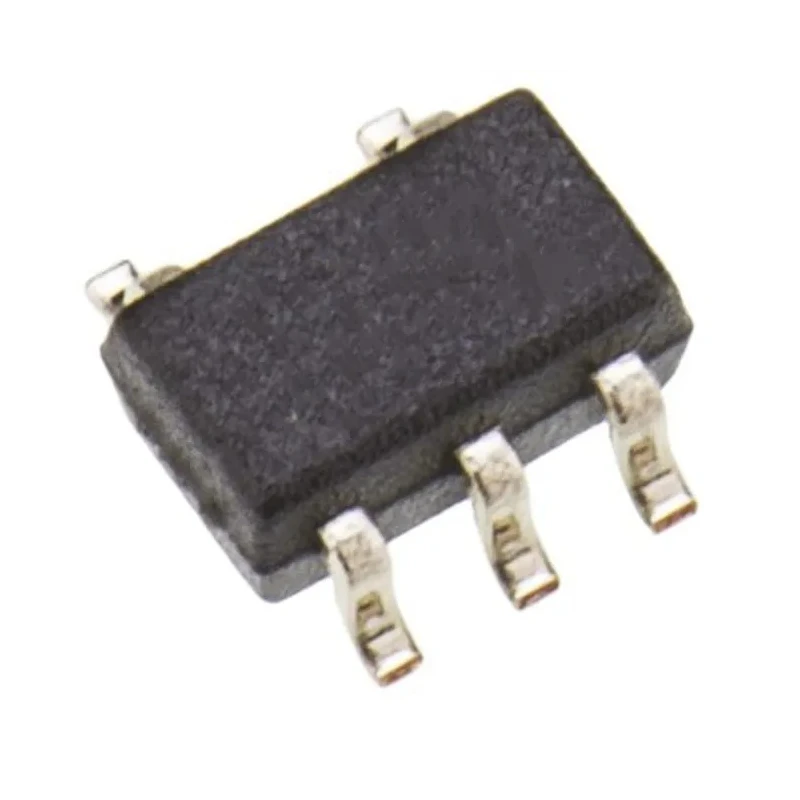

Maxim Integrated Comparator Open Drain Output General Purpose Surface Mount SC-70 Package MAX9648AXK+T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Maxim Integrated |
| Height | 1mm |
| Length | 2.2mm |
| Model | MAX9648AXK+T |
| Width | 1.35mm |
| Mount Type | Surface |
| Output type | Open Drain |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -40°C |
| Comparator Type | General Purpose |
| Pin Count | 5 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Supply Current | 170μA |
| Typical Response Time | 100ns |
Key Features
- Operates with supply voltage range from 1.8V to 5.5V for flexible power options.
- Typical response time of 100 nanoseconds ensures fast switching.
- Low supply current of 170 microamperes reduces power consumption.
- Wide operating temperature range from -40°C to 125°C for automotive and industrial applications.
- Compact 5-pin SC-70 package with dimensions 2.2mm x 1.35mm x 1.0mm saves board space.
- Open drain output type allows easy interface with different voltage levels.
- Designed with internal 2mV hysteresis and low output saturation voltage.
- Input common-mode voltage range includes ground with no phase reversal on overdriven inputs.
Product Description
Maxim Integrated MAX9648AXK+T Comparator Open Drain Output device is a general purpose comparator offered in a compact SC-70 surface mount package measuring 2.2mm length, 1.35mm width, and 1.0mm height. It supports a supply voltage range from 1.8V to 5.5V, making it compatible with low-voltage applications.
This comparator boasts a typical response time of 100 nanoseconds and a low supply current of 170 microamperes, optimizing power efficiency. The device operates reliably across an extended temperature range from -40°C to 125°C, suitable for automotive temperature ranges and harsh industrial environments.
The comparator features an open drain output, which provides flexibility for interfacing with various voltage levels. It includes internal 2mV hysteresis and a low output saturation voltage of approximately 120mV. Its input common-mode voltage range includes ground and ensures no phase reversal on overdriven inputs for enhanced signal integrity.
Encased in a 5-pin SC-70 package, the compact form factor saves valuable PCB space, ideal for portable electronics and mobile communication devices. Typical applications include battery-powered electronics, notebooks, PDAs, general-purpose low-voltage systems, and mobile communication devices.
Operates at minimum 1.8V and maximum 5.5V supply voltage to handle varied power needs. 100ns typical response time offers rapid signal comparison. Low supply current at 170μA supports battery-powered device efficiency. Wide temperature range from -40°C up to 125°C suits automotive grade requirements.
Overall package dimensions of 2.2mm x 1.35mm x 1.0mm reduce PCB footprint.
This device is ideal for industrial, automotive, mobile communications, and portable electronics applications. Robust temperature tolerance and power efficiency make it well suited for harsh environments and battery-operated systems.
Browse the Maxim Integrated range and related semiconductor Comparators at EnvMart for advanced electronics design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a supply voltage range from 1.8V to 5.5V, making it suitable for various low-voltage applications.
The typical response time is 100 nanoseconds, ensuring fast signal comparison.
It has a low supply current of 170 microamperes, which helps reduce power consumption.
The device operates reliably across a wide temperature range from -40°C to 125°C, suitable for automotive and industrial applications.
It features an open drain output type, allowing for easy interfacing with different voltage levels.
The package dimensions are 2.2mm in length, 1.35mm in width, and 1.0mm in height, which helps save board space.
The MAX9648AXK+T has a pin count of 5, making it suitable for compact designs.
The input common-mode voltage range includes ground, ensuring no phase reversal on overdriven inputs.
It is ideal for applications in battery-powered electronics, notebooks, PDAs, and general-purpose low-voltage systems.
Yes, it is designed with internal 2mV hysteresis, which helps improve signal integrity.
The maximum output saturation voltage is approximately 120mV, which is beneficial for low-voltage applications.
The country of origin for this comparator is India.
