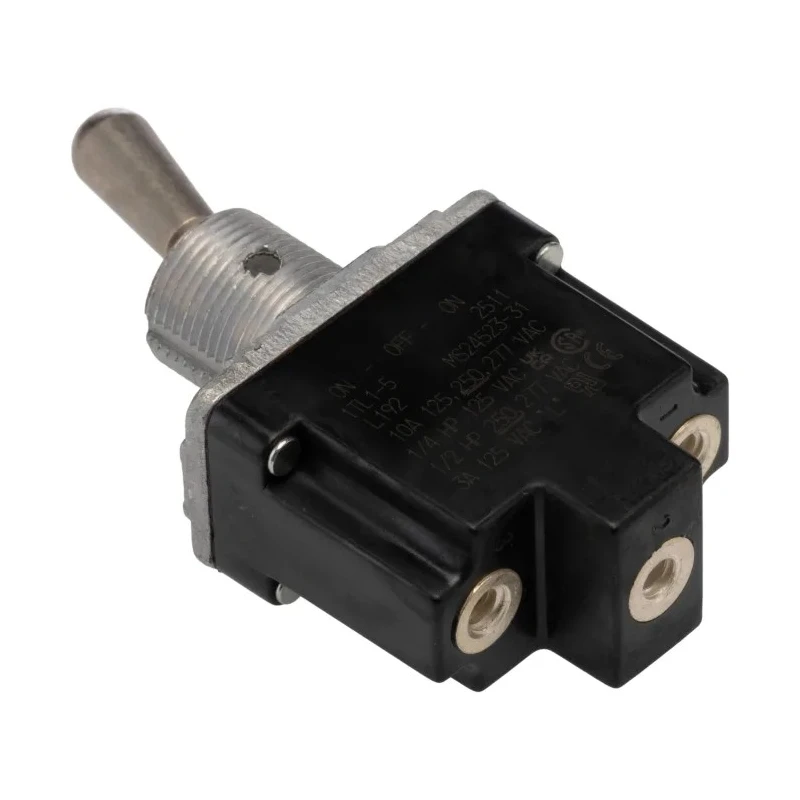

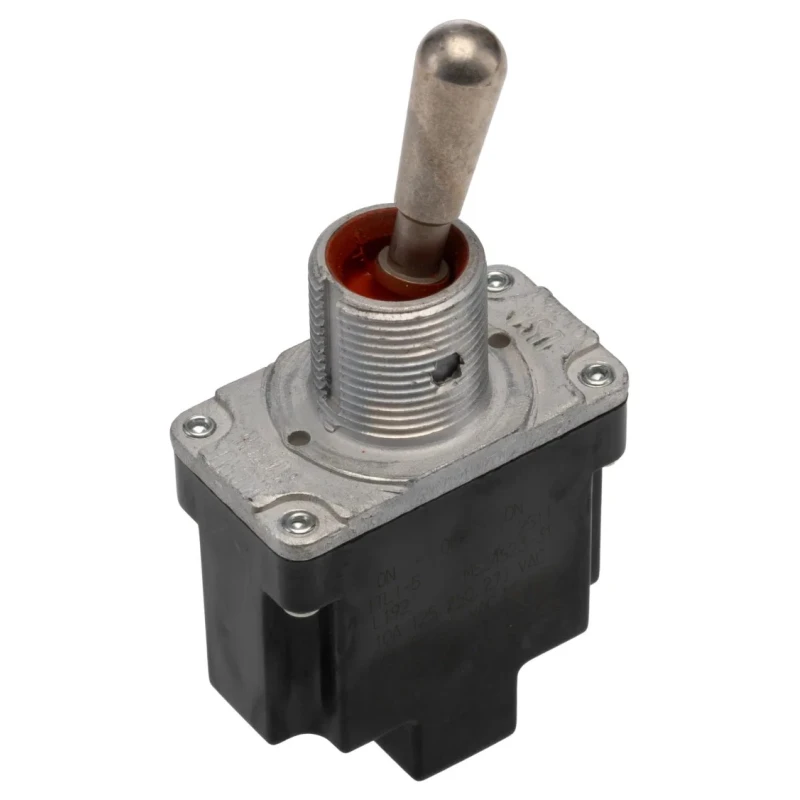

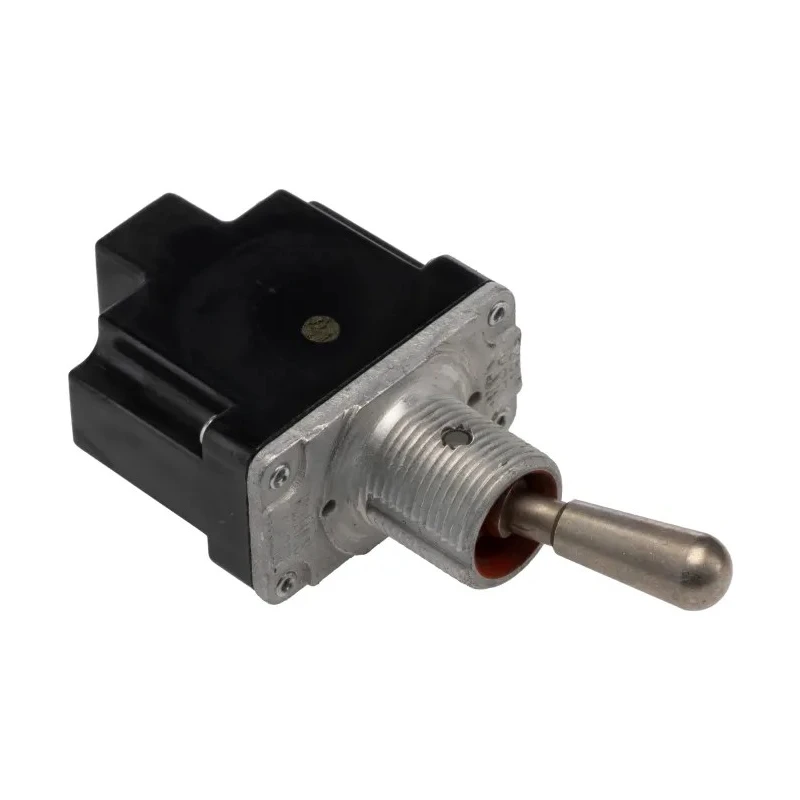

Honeywell Technologies Toggle Switch, Bushing Mount, On-Off-On, SPDT, Screw Terminal, 10A, 277V AC 1TL1-5
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Honeywell |
| Height | 26.7mm |
| Length | 15mm |
| Model | 1TL1-5 |
| Width | 33.5mm |
| Mount Type | Bushing |
| Series | TL |
| Maximum Operating Temperature | 71°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -65°C |
| Panel Cutout Size | 12.4 mm |
| Terminal type | Screw |
| Standards/Approvals | UL, CSA, CE |
| Switch Operation | On-Off-On |
| Actuator Length | 17mm |
| Switch Contact Current | 10A |
| Contact AC Voltage | 277V ac |
Key Features
- SPDT contact configuration provides flexible circuit selection.
- Supports a switch contact current of 10A at 277V AC for moderately high load applications.
- Operates with On-Off-On switch operation offering a center-off position for multi-state control.
- Bushing mounting type allows for straightforward, secure panel installation.
- Screw terminals ensure reliable and serviceable wiring connections.
- Non-illuminated actuator simplifies wiring without lamp requirements.
- Compact panel cutout size of 12.4 mm suitable for tight space installations.
- Durable operation in temperature ranges from -65°C to 71°C, suitable for harsh environments.
Product Description
Honeywell 1TL1-5 Toggle Switch is a bushing mount, non-illuminated, On-Off-On SPDT switch designed to provide mechanical circuit switching in industrial control panels and equipment. Rated for 10A switching current and 277V AC contact voltage, this toggle switch offers reliable manual mode selection with a center-off position for multi-state electrical pathways.
Featuring screw terminal connections and a compact 12.4 mm panel cutout size, the 1TL1-5 facilitates secure and straightforward panel installation in automation, manufacturing, HVAC, and electrical control applications.
Its operating temperature range from -65°C to 71°C ensures dependable performance in cold storage areas as well as elevated ambient environments. Certifications including UL, CSA, and CE confirm compliance with major electrical safety standards.
Applications include use in control panels requiring manual override, auxiliary circuit switching, motor starter controls, and test rigs needing isolated center-off states. SPDT contact arrangement for versatile circuit switching.
Supports 10A current at 277V AC for moderate loads. On-Off-On switch operation provides a center-off function. Bushing mount suitable for panel installation. Screw terminals provide secure wiring connections. Non-illuminated actuator for simplified wiring.
Compact panel cutout size of 12.4 mm for easy retrofit. Temperature tolerance from -65°C to 71°C for demanding environments. UL, CSA, CE approvals ensure recognized safety standards.
Honeywell toggle switches like the 1TL1-5 are integral components for electrical and automation industries requiring reliable manual switching solutions. Explore more Toggle Switches and related products in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a Single Pole Double Throw (SPDT) contact configuration, allowing for flexible circuit selection.
It supports a switch contact current of 10A at a voltage of 277V AC, suitable for moderately high load applications.
This model utilizes a bushing mount type, which facilitates straightforward and secure installation in panels.
The compact panel cutout size required for this toggle switch is 12.4 mm, making it suitable for tight space installations.
This model features screw terminals, ensuring reliable and serviceable wiring connections.
It is certified with UL, CSA, and CE approvals, confirming compliance with major electrical safety standards.
The actuator length of this model is 17 mm, providing a suitable interface for manual operation.
It is suitable for use in control panels requiring manual override, auxiliary circuit switching, motor starter controls, and test rigs needing isolated center-off states.
The dimensions of this model are 26.7 mm in height, 15 mm in length, and 33.5 mm in width.
This toggle switch belongs to the TL series, indicating its specific design and features within the product line.
The On-Off-On operation provides a center-off position, allowing for multi-state control in electrical applications.
