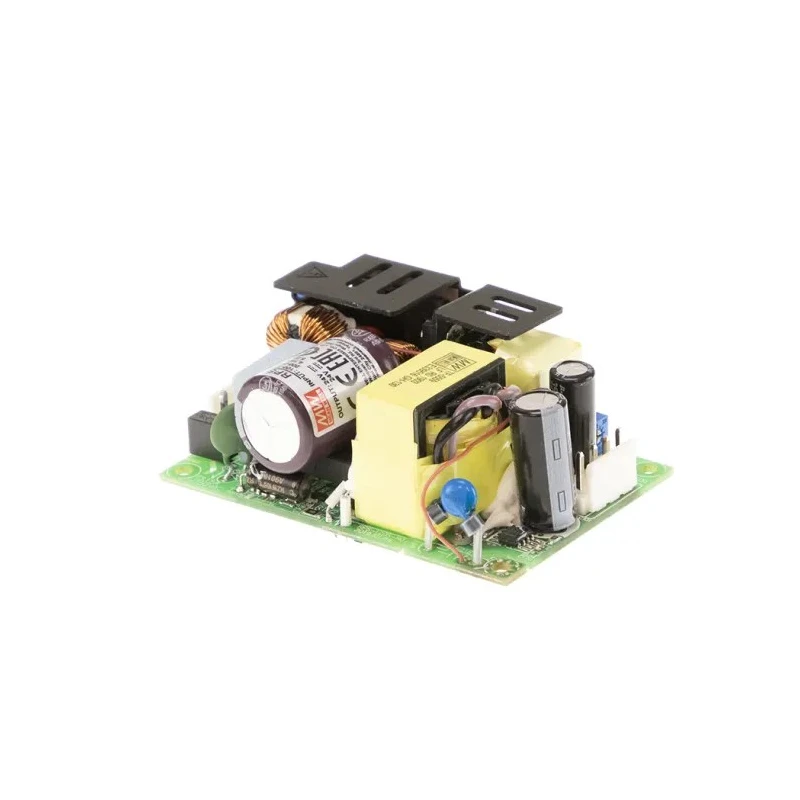

MEAN WELL Switching Power Supply 24V DC 150W PCB Mount 80~264VAC Input RPS-120S-24

MEAN WELL RPS-120S-24 is a high reliability switching power supply designed for industrial and medical applications requiring a stable 24V DC output with 150W power capacity. This PCB mountable unit accepts a broad input voltage range from 80 to 264VAC and up to 370V DC, making it versatile for global use.

The device features compact dimensions of 76.2mm length, 28mm width, and 28mm depth, with a light gross weight of only 130 grams. The power supply operates efficiently at 93%, reducing energy consumption while maintaining robust performance under a wide temperature range of -30°C to 85°C.

Incorporated protection mechanisms include safeguards against short circuit, overload, over voltage, and over temperature conditions, ensuring long-term operational safety and device integrity. Low no-load consumption below 0.3W and minimal leakage current under 150 microamperes provide energy savings and enhanced user safety.

This power supply complies with a comprehensive set of international standards such as IS 13252(Part1), IEC 60950-1, TUV EN/EN 62368-1, UL 62368-1, EAC TP TC 00, CSA C22.2 No. 62368-1, CCC GB4943.1, BSMI CNS143361, and AS/NZS 62368.1, enabling use in medical, laboratory, industrial, and HVAC applications.

Its versatility extends to supporting both Class I systems with functional grounding and Class II systems without grounding, making the RPS-120S-24 suitable for a wide range of equipment requiring reliable, compact, and efficient power solutions.

The device is manufactured in China and designed to meet the rugged demands of modern electronic designs requiring compact footprints with a 3" by 2" form factor and green, sustainable operation.

High efficiency up to 93% ensuring energy saving operation. Wide operating temperature range from -30°C to 85°C for reliable use in demanding environments. Single output delivering 6.25A current suitable for various electronic applications.

Compact dimensions of 76.2mm x 28mm x 28mm ensure space-saving installation. Protection features include short circuit, overload, over voltage, and over temperature safeguards. Extremely low no-load power consumption below 0.3W reduces standby power waste.

Designed to meet multiple international safety standards including IEC 60950-1, UL 62368-1, and TUV EN 62368-1. Suitable for Class I (with FG) and Class II (no FG) system designs. Low leakage current of less than 150μA enhances safety further.
