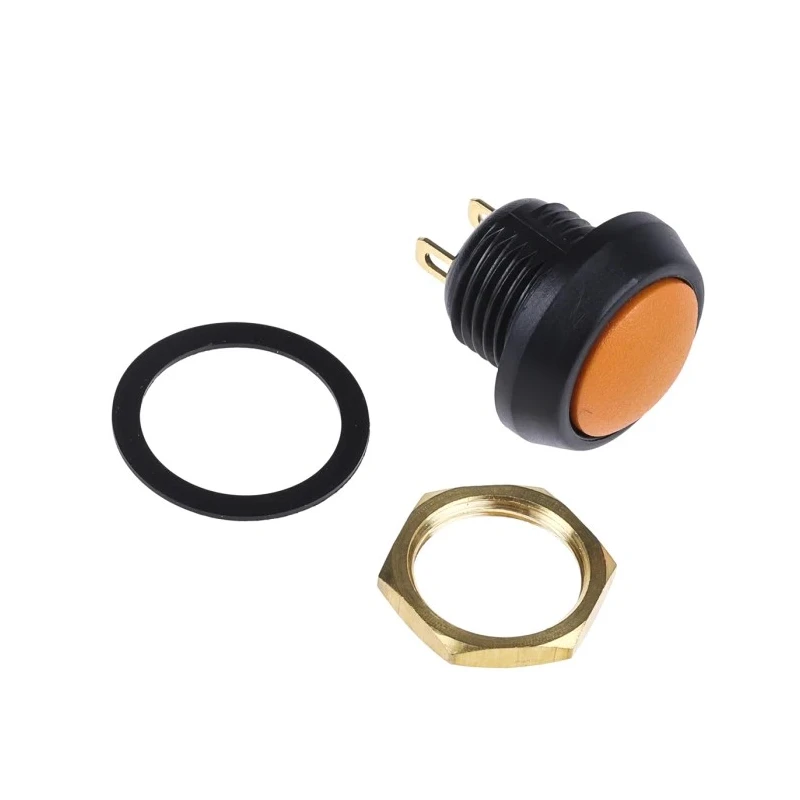

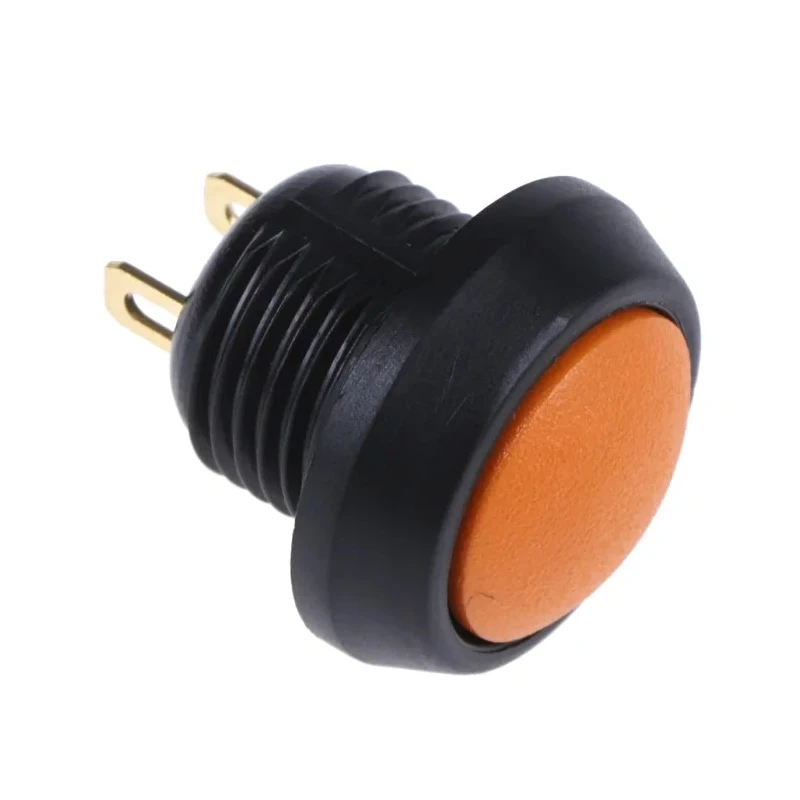

ITW Switches 59 Series Miniature Momentary Push Button Switch, Panel Mount, 13.6 mm Cutout, SPST, Clear LED, IP67 59-517

Name: ITW Switches 59 Series Miniature Momentary Push Button Switch, Panel Mount, 13.6 mm Cutout, SPST, Clear LED, IP67 59-517
Brand: ITW Switches
SKU: 303868
Price: 7.44 USD
Availability: InStock



Category Push Button Switch Brand ITW Switches Condition New

Specifications

Country of Origin	United Kingdom
Brand	ITW Switches
Model	59-517
IP Rating	IP67
Mount Type	Panel
Series	59
Maximum Operating Temperature	105°C
Contact Configuration	SPST
Switch Configuration	On-Off
Minimum Operating Temperature	-40°C
Panel Cutout Size	13.6 mm
Terminal type	Solder
Standards/Approvals	UL, CSA
Switch Operation	Momentary
Actuator Colour	Orange
Contact DC Voltage	125V
Actuator Style	Button
Switch Contact Current	400mA
Contact AC Voltage	125V ac

Key Features

Features a rugged sealed design for harsh industrial environments.
Operates momentarily with SPST contact configuration for reliable on-off control.
Panel mount type with a 13.6 mm cutout size for easy installation.
Clear LED illumination enhances visibility without illumination color interference.
Rated IP67 for dust tight and temporary immersion protection.
Suitable for voltage up to 125 V AC/DC with maximum contact current of 400 mA.
Operates reliably from -40°C up to 105°C for wide temperature ranges.
Constructed with gold contacts and non-spark zinc alloy or PBT body choices for durability.

Product Description

ITW Switches 59-517 is a miniature sealed momentary push button switch designed for panel mounting applications requiring robust and durable controls. It features a 13.6 mm panel cutout size and single-pole, single-throw (SPST) contact configuration suitable for simple on-off switching.

This switch is part of the 59 series known for its rugged construction with panel sealing rated at IP67, protecting against dust ingress and temporary immersion in water, making it ideal for use in harsh and demanding industrial environments.

The 59-517 model includes a clear LED that provides illumination status indication, enhancing operational feedback without illumination color distractions. Its gold contact design ensures reliable low-level signal switching with resistance to corrosion.

The actuator is styled as a button with an orange color for tactile and visible actuation. This switch supports both AC and DC voltages up to 125 V, with a contact current rating of up to 400 mA. The operating temperature range extends from -40°C to 105°C, allowing use in industrial, military, instrumentation, data entry, communications, mass transport controls, and other environmentally demanding applications.

The switch body is available in either a non-spark zinc alloy or a hard-wearing moulded polybutylene terephthalate (PBT) plastic, ensuring long service life in various installation scenarios. It carries electrical approvals including UL and CSA, further ensuring compliance with industry regulations.

Rugged, panel sealed miniature push button switch offering momentary operation. IP67 rated for dust and water resistance, suitable for harsh environments. SPST contact configuration with gold contacts for reliable switching.

Clear LED illumination provides operational feedback. Operates at 125 V with contact current rating of 400 mA. Wide operating temperature range from -40°C to 105°C. Multiple body material options: zinc alloy or molded PBT.

UL and CSA approved ensuring industry compliance.

This switch is ideal for electrical, automation, and industrial equipment panels requiring reliable push button control with environmental protection. Explore more from ITW Switches and find compatible Push Button Switches and components in the Electronics & Electricals category on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The 59-517 switch features a single-pole, single-throw (SPST) contact configuration, suitable for simple on-off switching applications.

This model can operate at a maximum temperature of 105°C, making it suitable for a wide range of industrial applications.

The switch has an IP67 rating, indicating it is dust-tight and protected against temporary immersion in water.

The required panel cutout size for this switch is 13.6 mm, facilitating easy installation in compatible panels.

The 59-517 model includes a clear LED that enhances visibility and provides operational feedback without color interference.

It is rated for both AC and DC voltages up to 125V, with a maximum contact current of 400 mA.

The switch body is available in either a non-spark zinc alloy or a hard-wearing molded polybutylene terephthalate (PBT) plastic.

This switch operates reliably within a temperature range of -40°C to 105°C, suitable for harsh environments.

It carries UL and CSA approvals, ensuring compliance with industry standards and regulations.

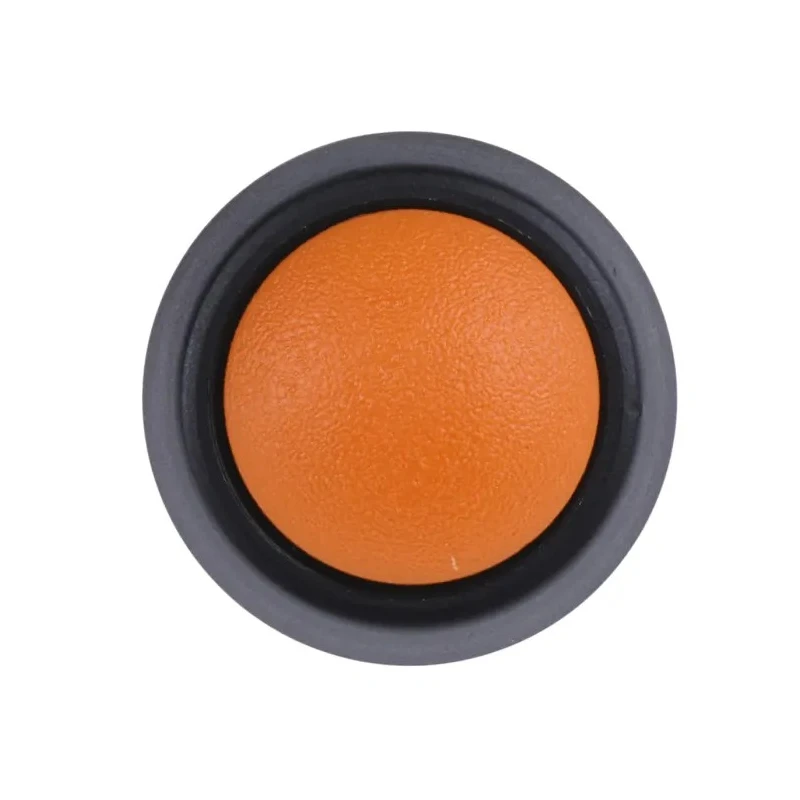

The actuator of this model is styled as a button and is colored orange for tactile and visible actuation.

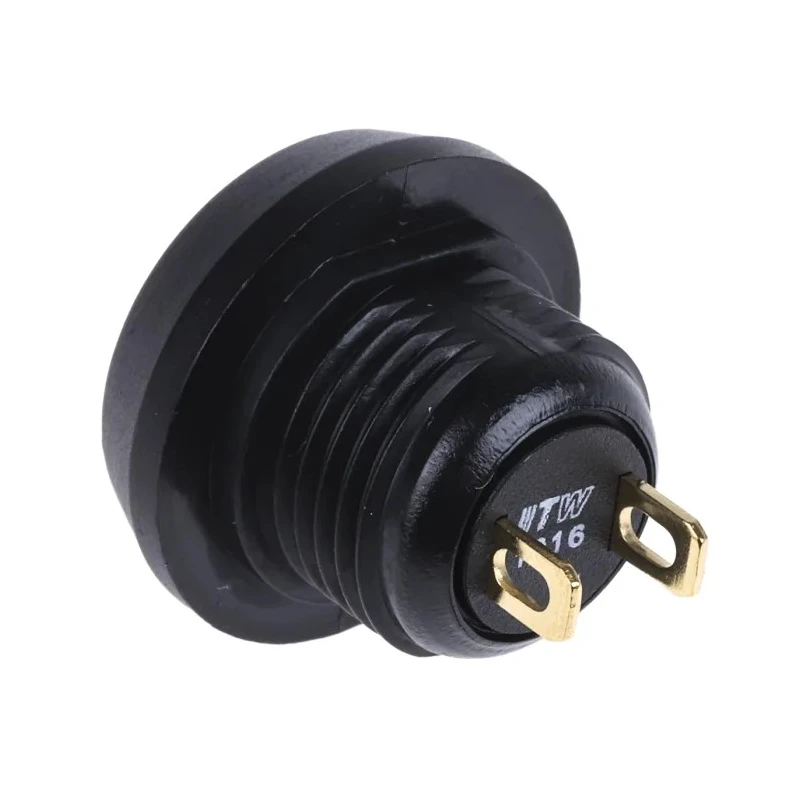

The switch uses solder terminals for secure electrical connections during installation.

The 59-517 switch is suitable for various applications including industrial, military, instrumentation, and mass transport controls, particularly in demanding environments.
