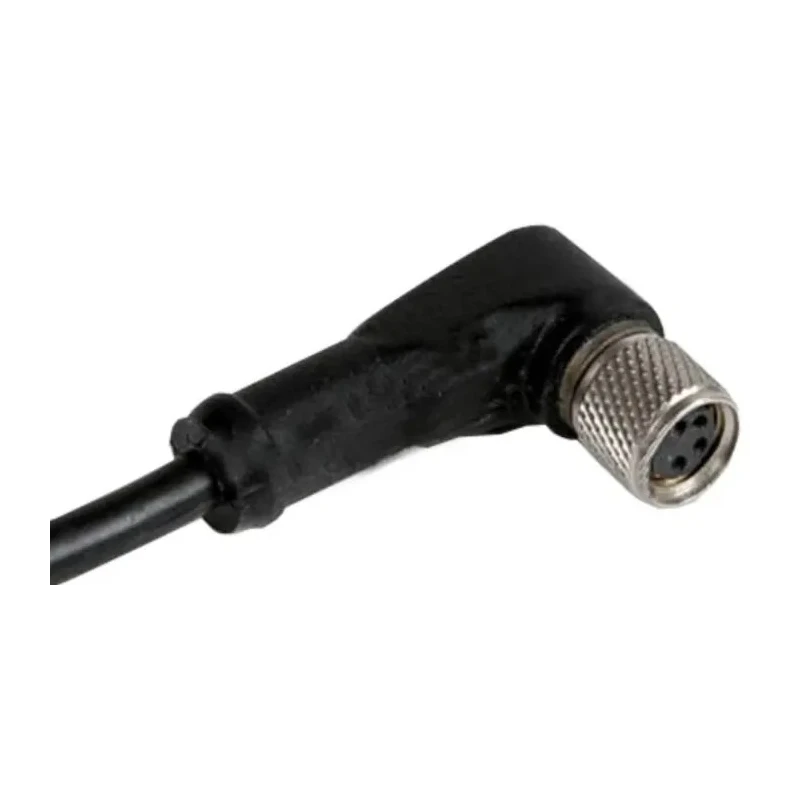

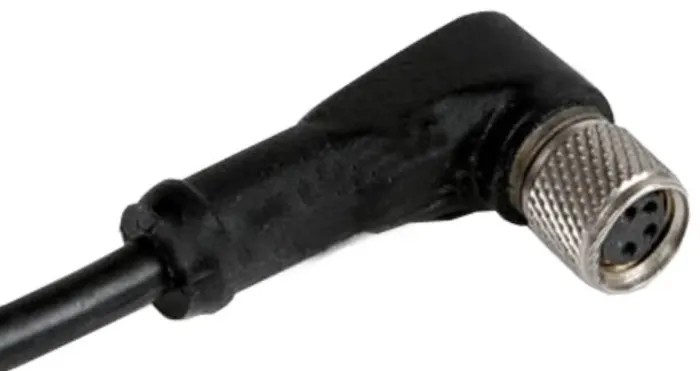

RS PRO Sensor Actuator Cable Female 4 Way Right Angle to Unterminated Free End 5 m 186-3127

RS PRO 186-3127 Sensor Actuator Cable is a high-quality female 4 way right angle to unterminated free end cable designed for sensor and actuator connections in industrial environments. This 5 meter long cable features a durable polyurethane jacket in black, offering excellent protection and flexibility.

With its 4 core PUR multi-strand construction, the cable provides reliable signal transmission with a voltage rating of 30V and a current rating of 4A. The zinc copper alloy gold-plated contacts ensure corrosion resistance and optimal conductivity.

The cable diameter of approximately 4.9 mm allows for compact installation, while the insulation resistance of at least 100MΩ provides safety against electrical leakage.

Rated IP67, this cable is suitable for use in harsh and wet industrial settings. The operating temperature range from -25°C to 75°C enables usage in diverse environmental conditions.

Additional features include a brass nickel-plated coupling nut and neoprene O-ring to ensure a sealed and secure connection. The cable is ideal for automation equipment, sensors, and industrial applications requiring robustness and reliability.

The cable length is 5 meters, allowing flexible installation. Constructed with a 4 core PUR multi-strand design for reliable signal transmission. The jacket material is polyurethane with a black color providing abrasion and chemical resistance.

Equipped with a female 4 way right angle connector and an unterminated free end for customization. Voltage rating of 30V and a current rating of 4A for safe operation. Zinc copper alloy gold-plated contacts ensure excellent conductivity and corrosion resistance.

Cable diameter is 4.9 ± 0.1 mm, providing compact form factor. Insulation resistance is greater than or equal to 100MΩ for secure insulation. The cable has an IP67 rating, making it suitable for harsh industrial environments.

Operating temperature range between -25°C and 75°C supports diverse applications. Includes a brass nickel-plated coupling nut and neoprene O-ring for a secure, sealed connection.

This sensor actuator cable is manufactured in India and is ideal for industrial, automation, and sensor interfacing use cases. For more high-quality cables, explore the Sensor Actuator Cable category on EnvMart.
