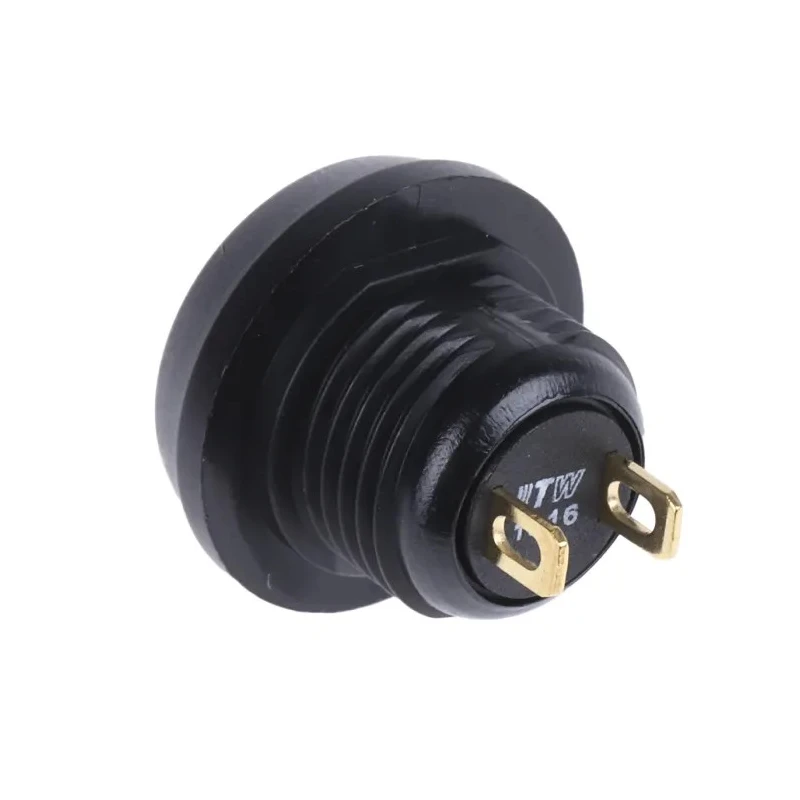

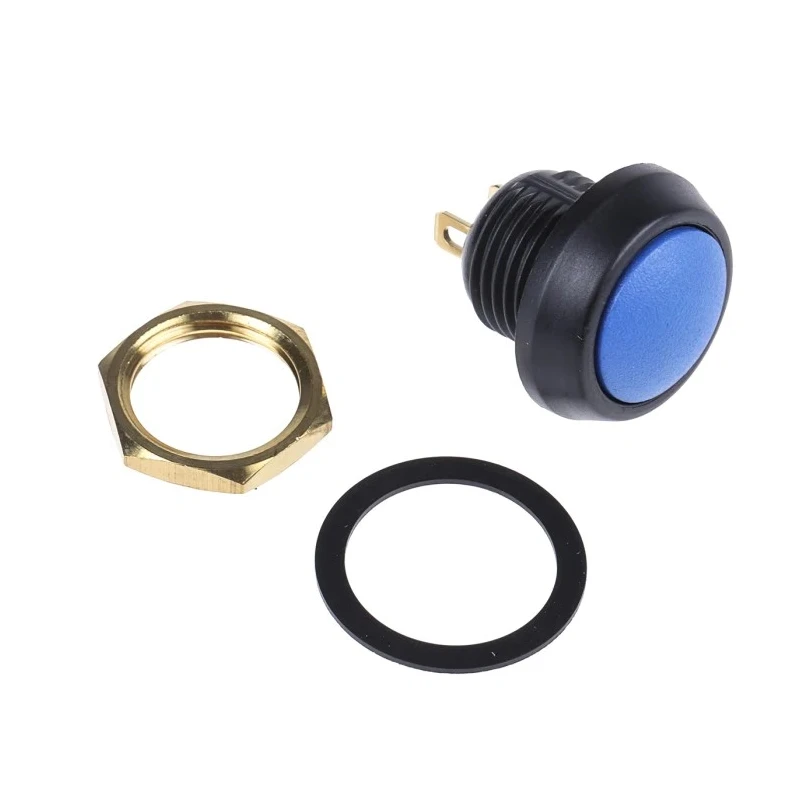

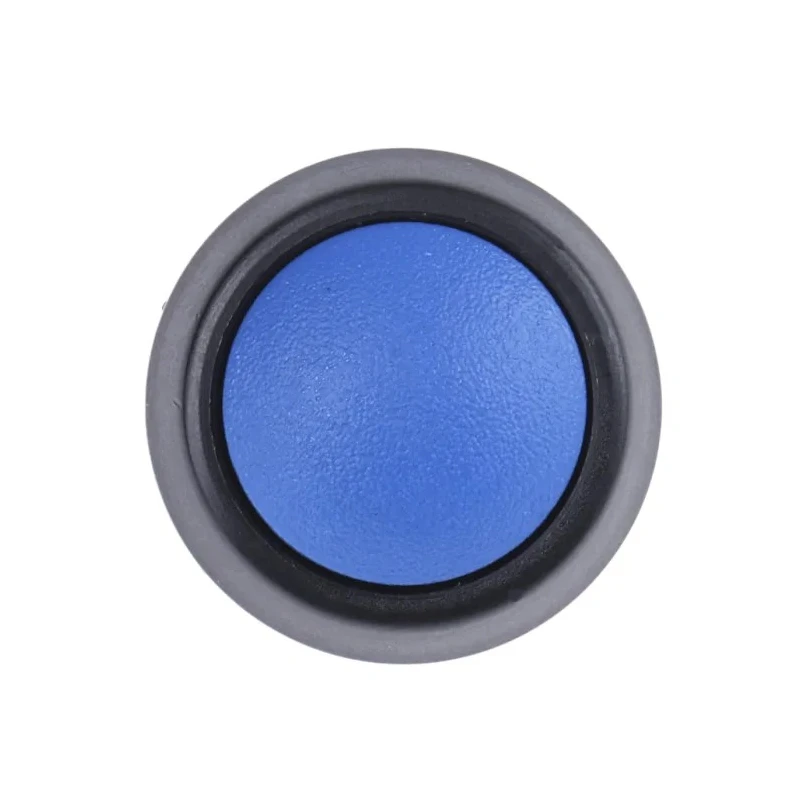

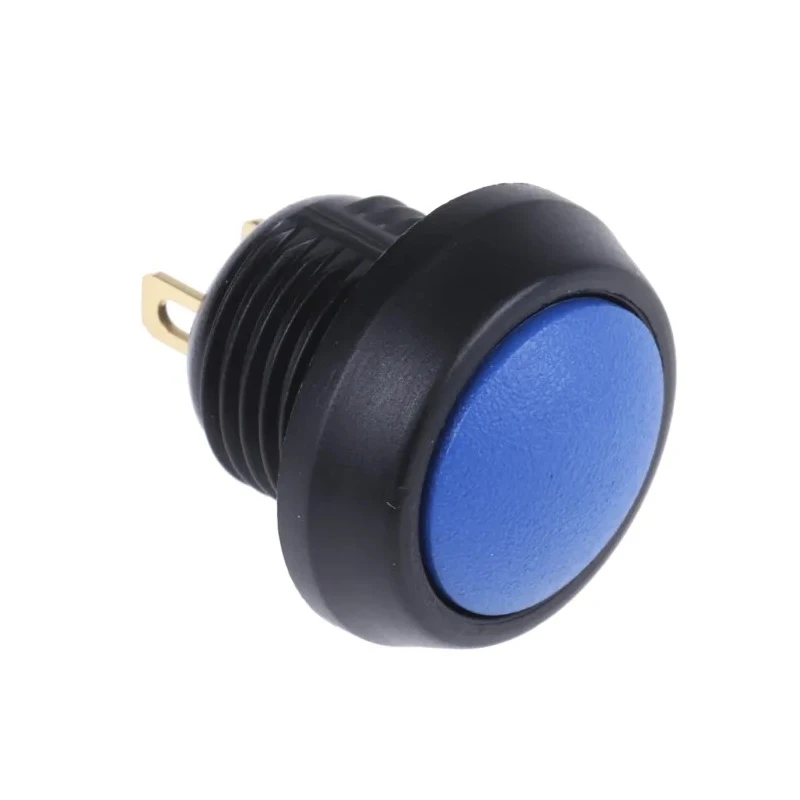

ITW Switches Miniature Momentary Push Button Switch Panel Mount SPST, Blue Actuator, Clear LED, IP67, 125V AC 59-516

The ITW Switches 59-516 is a miniature sealed pushbutton switch designed for momentary operation and rugged panel mounting applications. With a compact 13.6 mm panel cutout size, this push button switch provides reliable single-pole single-throw (SPST) switching functionality suitable for many industrial and commercial applications requiring temporary circuit activation.

This switch features a blue actuator button that is tactile and visually distinct. The device is panel sealed to IP67 standard, ensuring full protection against dust ingress and the ability to withstand temporary immersion in water, making it ideal for harsh and demanding environments such as military, communications, instrumentation, and mass transport systems.

Operating across a wide temperature range from -40°C to 105°C, this switch is constructed from non-sparking zinc alloy or hard-wearing polybutylene terephthalate (PBT) materials, coupled with gold-plated contacts to ensure durability and excellent conductivity. Electrical ratings are specified for 125 V AC/DC operation and a contact current of up to 400 mA, ensuring suitability for a variety of low-power switching tasks.

The terminal connections are designed for solder type mounting, providing secure and permanent electrical connections in panel assemblies. Certified to UL and CSA standards, the 59-516 push button switch meets high safety and quality benchmarks.

This miniature push button switch series from ITW Switches is expressly engineered for industries requiring compact, reliable, and environmentally robust switches. Typical use cases include industrial equipment controls, data entry devices, instrumentation panels, and environmentally demanding keypad applications.

The actuator is blue in color providing distinct visual identification. Switch operation is momentary with On-Off configuration, ideal for temporary circuit activation. SPST contact configuration supports single-pole single-throw switching.

Designed to operate within a temperature range of -40°C to +105°C for versatility. Features solder-type terminals for secure electrical connections. High environmental protection with IP67 rating offers dust tightness and water immersion resistance.

Electrical ratings include 125 V AC and DC voltages with a contact current rating of 400 mA. Constructed with non-spark materials with gold contacts ensuring reliability and durability. Compact miniature size with a panel cutout dimension of 13.6 mm for easy integration.

Complies with UL and CSA standards for safety and quality assurance.

This product is engineered and manufactured in the United Kingdom, guaranteeing premium quality and performance reliability. Explore more options in the ITW Switches range to find suitable pushbutton switches for all industrial and automation needs.
