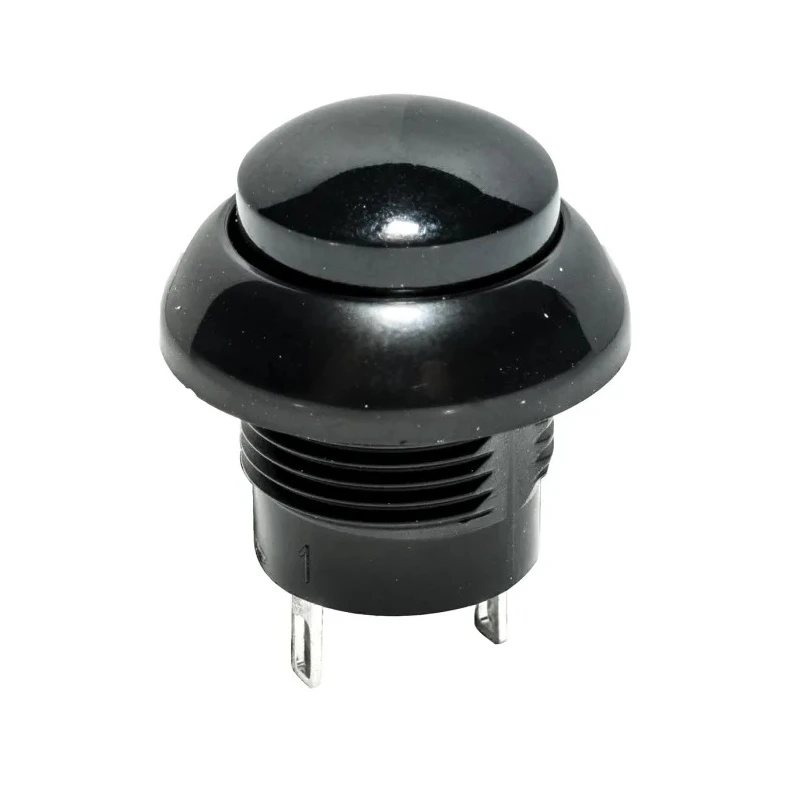

C & K PNP Series Push Button Switch Momentary Panel 12.3 mm Cutout SPST IP68 32 V dc PNP8S2D2W03QE

Name: C & K PNP Series Push Button Switch Momentary Panel 12.3 mm Cutout SPST IP68 32 V dc PNP8S2D2W03QE
Brand: C & K
SKU: 302115
Price: 23.02 USD
Availability: InStock



Category Push Button Switch Brand C & K Condition New

Specifications

Country of Origin	China
Brand	C & K
Length	304.8mm
Model	PNP8S2D2W03QE
IP Rating	IP68
Mount Type	Panel
Series	PNP
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Panel Cutout Size	12.3 mm
Terminal type	Solder
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Black
Contact DC Voltage	32V dc
Actuator Style	Round
Switch Contact Current	5A

Key Features

Black round actuator for reliable momentary operation.
Panel mount type with a robust 12.3 mm cutout dimension.
IP68 rated for protection against dust and water ingress.
Suitable for DC voltage operation up to 32 V with 5 A contact current rating.
Extended operating temperature range from -40°C to 85°C.
Long solder leads for easy wire installation and enhanced durability.
RoHS compliant and manufactured to high-quality standards.
Overall switch length of 304.8 mm, designed for panel mounting.

Product Description

C & K PNP8S2D2W03QE Push Button Switch is a momentary type switch designed for panel mounting applications requiring a compact 12.3 mm cutout size. It features a black round actuator style with SPST contact configuration that is suitable for controlling DC voltages up to 32 V and currents up to 5 A. The switch is rated IP68, ensuring robust protection against dust and water ingress, making it ideal for demanding industrial environments.

This switch operates reliably over a wide temperature range from -40°C to 85°C, suitable for harsh environments including off-road panels, heavy equipment, industrial instruments, and lift controls. Its long solder leads facilitate ease of wiring installation, improving assembly efficiency and durability.

Designed for longevity, the switch supports up to 1,000,000 operational life cycles, assuring extended service life in high-use scenarios. The product is RoHS compliant, adhering to environmental standards.

The PNP series encompasses a broad range of miniaturized push button switches with diverse actuator styles, mounting options, and electrical configurations, making it suitable for customized control solutions across various electrical and automation applications.

Black round actuator for reliable momentary switching operation. Panel mounting with a precise 12.3 mm cutout size for easy installation. IP68 sealing protects against moisture and dust penetration. Supports DC voltages up to 32 V and contact current rated to 5 A.

Operational temperature range from -40°C to 85°C for versatile use. Compliant with RoHS directive to ensure eco-friendly manufacturing. Long solder leads simplify wire connections and increase product longevity. Compact 304.8 mm overall length ideal for various panel applications.

This switch is commonly used in control grips, off-road panel systems, heavy machinery controls, industrial instrumentation, and lift applications, offering high reliability and durability in challenging conditions.
