ITW Switches 59 Series Miniature Momentary Push Button Switch Panel Mount, 13.6 mm Cutout, SPST, Clear LED, IP67, 125 59-512

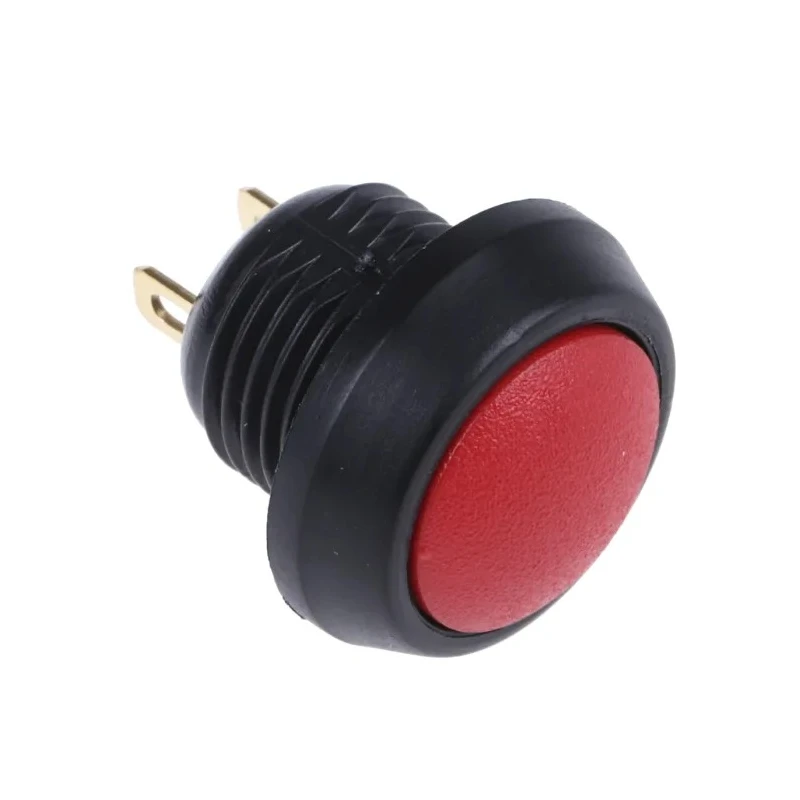

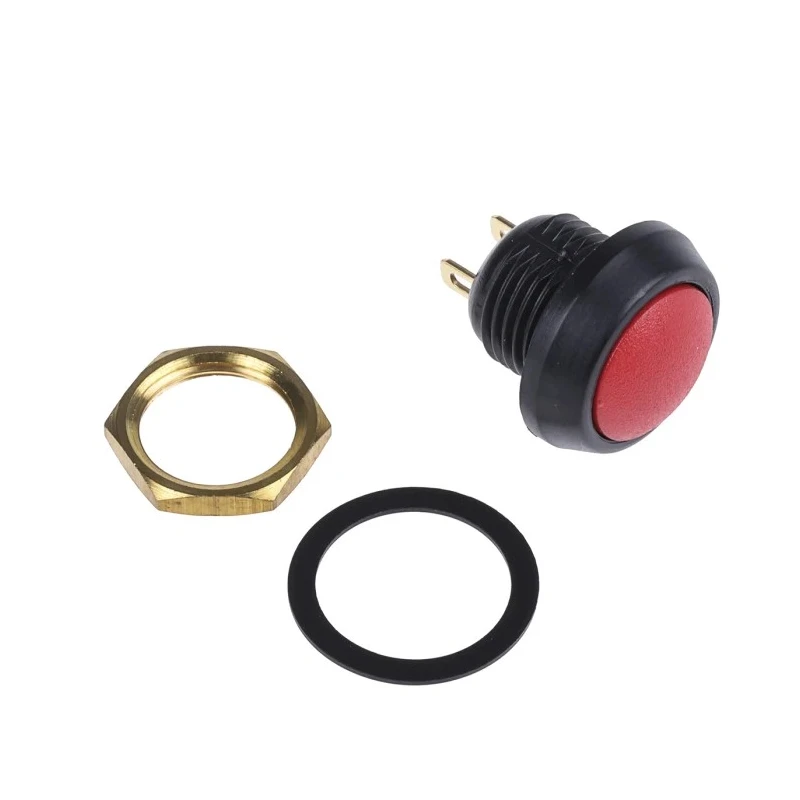

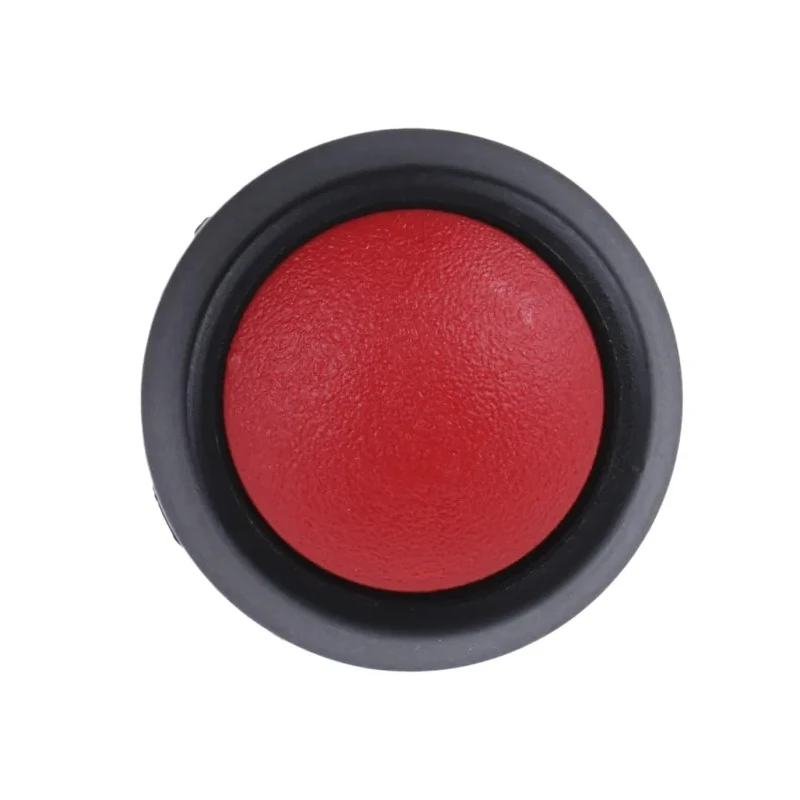

ITW Switches 59-512 is a miniature, momentary action push button switch designed for panel mount applications. It features a red PBT round bezel button with a 13.6 mm panel cutout size, making it ideal for compact installation spaces.

The switch operates with a momentary on-off configuration and SPST contact arrangement, ensuring the switch makes contact only while pressed and returns to off position upon release. It is non-illuminated but compatible with clear LED indicators.

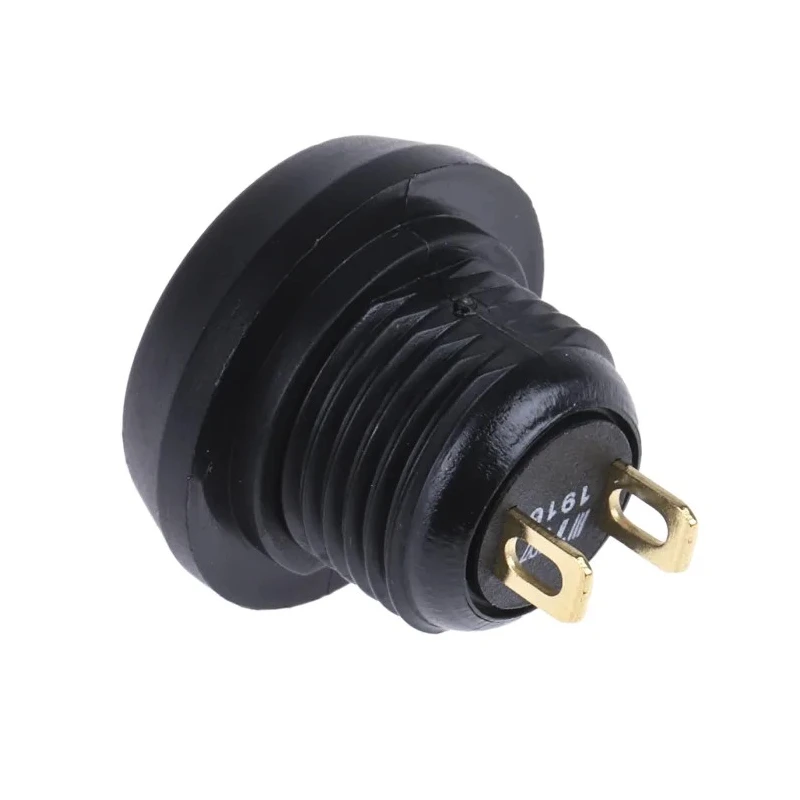

Designed for harsh environments, this switch is panel sealed to an IP67 rating, providing total dust protection and resistance to temporary immersion in water. The solder terminals allow for secure and reliable electrical connections. It supports contact voltage ratings of 125 V AC and DC with a contact current of 400 mA, suitable for various control and instrumentation applications.

With an operating temperature range from -40°C to 105°C, this switch is suitable for extreme temperature environments such as military, communications, instrumentation, mass transport controls, and environmentally demanding keypads.

The switch undergoes rigorous testing and meets UL and CSA safety standards, ensuring high durability and performance. Its rugged construction includes non-spark materials and gold plated contacts, enhancing its reliability in harsh industrial conditions.

Red PBT actuator button providing durability. Momentary push action for precise control. IP67 sealed for protection against dust and water immersion. Solder terminal type for secure wiring. Operating voltage up to 125 V AC/DC and 400 mA current capacity.

Wide temperature operating range from -40°C to 105°C. Compliant with UL and CSA standards for safety. Gold contacts and non-spark body materials ensure reliability. Compact 13.6 mm panel cutout size.

This switch is ideally suited for industrial control systems, telecommunications equipment, instrumentation panels, and any application requiring a robust and reliable momentary push button switch. Its IP67 rating makes it excellent for outdoor and harsh environment installations where dust and moisture resistance is critical.
