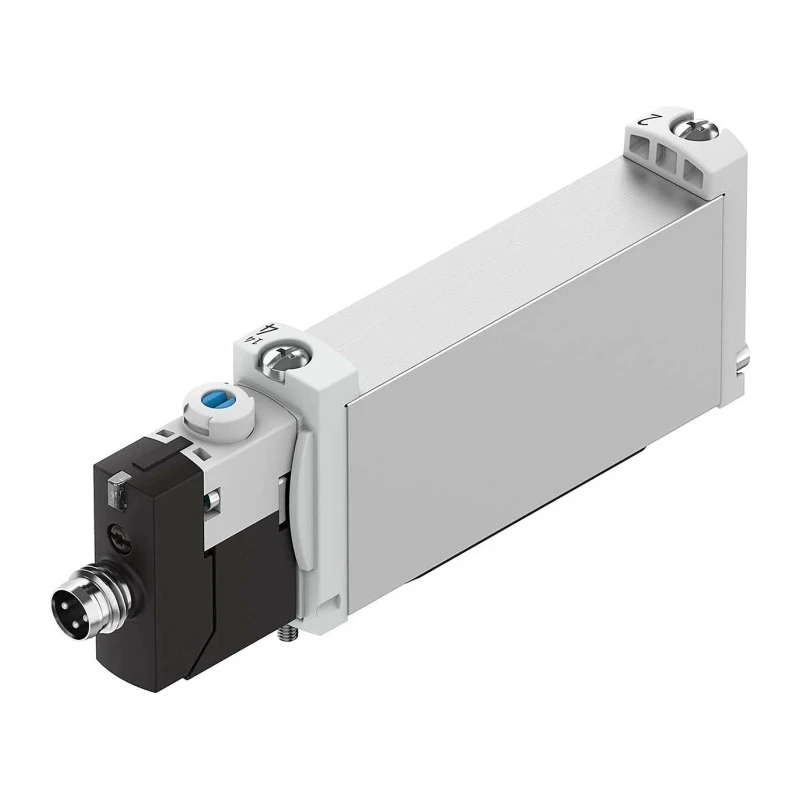

Festo 5/2 Solenoid Valve VUVG-B14-M52-AZT-F-1R8L 24V DC Aluminium Alloy Body 10 bar Pressure Germany

Festo VUVG-B14-M52-AZT-F-1R8L is a 5/2 way monostable solenoid valve designed for high-efficiency pneumatic control with a 24V DC actuation voltage. Manufactured in Germany, this valve features a robust aluminium alloy body combined with nitrile rubber seals to ensure durability and reliable sealing under demanding conditions.

The valve’s compact design suits manifold mounting applications, providing pneumatic linking through sub-base valve assemblies. It operates at a maximum pressure of 10 bar with a temperature range from -5°C to 60°C and includes a piston spool with sealing cartridge for precise control.

Featuring five ports and two positions, this solenoid valve supports external pilot air supply and offers quick push connectors for flexible installation options. It boasts a maximum flow rate of 630 L/min, enabling fast cycle times and enhanced performance for industrial automation, manufacturing, HVAC, and fluid power systems.

The valve electrical connection is a manifold block type, facilitating easy maintenance and replacement. It complies with RoHS and cULus standards and is IP 40/IP 65 rated for protection against environmental factors. The low solenoid power consumption of 1 watt aids in energy efficiency during operation.

This valve series excels in installation space saving, weight reduction, and service life, making it suitable for various industrial pneumatic valve applications. Its sturdy build ensures long operational life with rapid troubleshooting aided by LED status indicators.

The valve provides a 5-port, 2-position monostable function with external pilot air supply. Aluminium alloy body ensures robustness and reduced weight. Nitrile rubber (NBR) seal material provides excellent sealing and chemical resistance.

Rated for maximum operating pressure of 10 bar and maximum pilot pressure of 8 bar. Manifold mount type with male ports improves system integration and pneumatic linking. Electrical manifold block connection allows easy maintenance and replacement.

Protection class IP 40/IP 65 for industrial environmental resilience. Complies with RoHS and cULus certification standards. Compact dimensions with 14 mm width suitable for space-constrained installations. Explore the Festo brand range and Pneumatic Solenoid Valves category to find compatible industrial valves and accessories at EnvMart.
