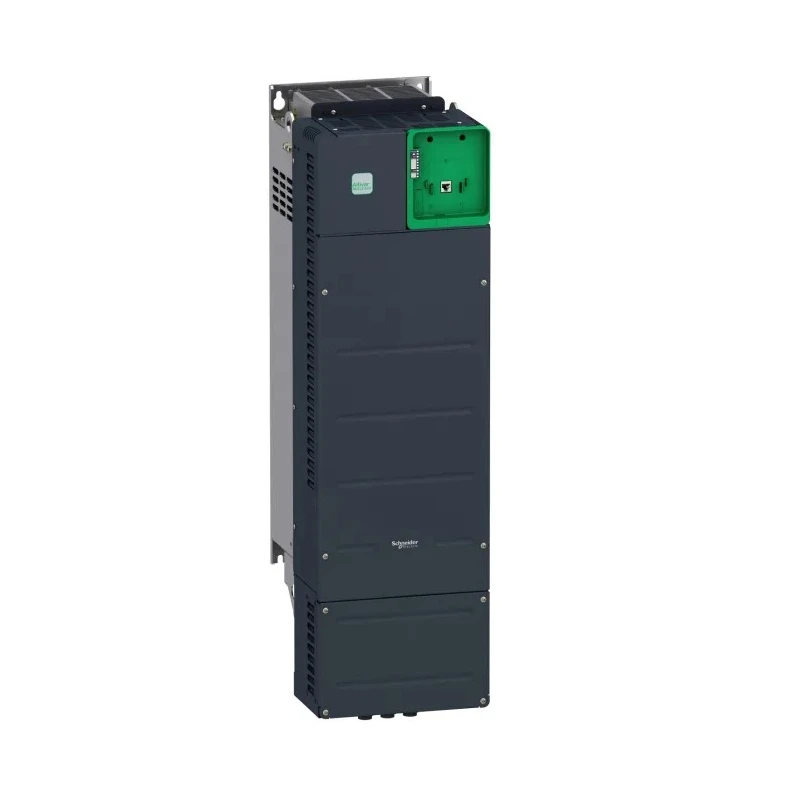

Schneider Electric Inverter Drive, 75 kW, 3 Phase, 480V, 156.2 A, Variable Speed, Altivar Series ATV340D75N4E

Schneider Electric ATV340D75N4E is a high-performance inverter drive with a 75 kW power rating and 3-phase supply, designed to operate at supply voltages between 380V and 480V AC. This Altivar series variable speed drive supports both synchronous and asynchronous motors in open or closed-loop control modes, making it suitable for demanding industrial and automation applications.

Specifically engineered to handle harsh operational environments, the ATV340D75N4E offers resistance to vibration, shocks, non-conductive dust, and high ambient temperatures up to 60°C. It features a wall mounting design with IP20 protection, ensuring durability and safety within electrical panels.

Communication capabilities include embedded Modbus serial and multi-protocol Ethernet interfaces such as Ethernet IP and Modbus TCP, allowing seamless integration within automated systems. The drive also supports expansion slots for encoder interfaces, I/O modules, communication modules, braking resistors, line chokes, and EMC filters, adaptable to various operational requirements.

This drive measures 271.26 mm in length, 309.31 mm in width, and 908 mm in depth, and weighs 58.4 kg, designed for vertical panel mounting. It conforms to major international standards including IEC/EN 61800-5-1, IEC/EN 61800-3, IEC 60721-3, IEC 61508, IEC 13849-1, and carries certifications such as CE, UL, CSA, and TÜV.

Compatible with permanent magnet and reluctance motors for versatile applications. Wall mount design with IP20 protection for safe industrial environments. Supports output frequency range from 0.1 to 500 Hz for precise motor speed control.

Operates reliably between -15°C and 50°C ambient temperatures. Integrates multi-protocol Ethernet and Modbus TCP communication interfaces. Dimensions: 271.26 mm length, 309.31 mm width, 908 mm depth, ensuring panel compatibility.

Complies with international IEC and safety standards including CE, UL, CSA, and TÜV certifications. Includes embedded web server and optional keypads for flexible configuration and monitoring. Designed for harsh environments with vibration, shock resistance, and high temperature tolerance up to 60°C.

Ideal for industrial sectors requiring high-efficiency motor control such as packaging, material handling, hoisting, and machine automation. The ATV340D75N4E is fully integrated with Schneider Electric’s EcoStruxure Machine architecture, enabling configuration, control, and diagnostics via SoMachine and SoMove software.
