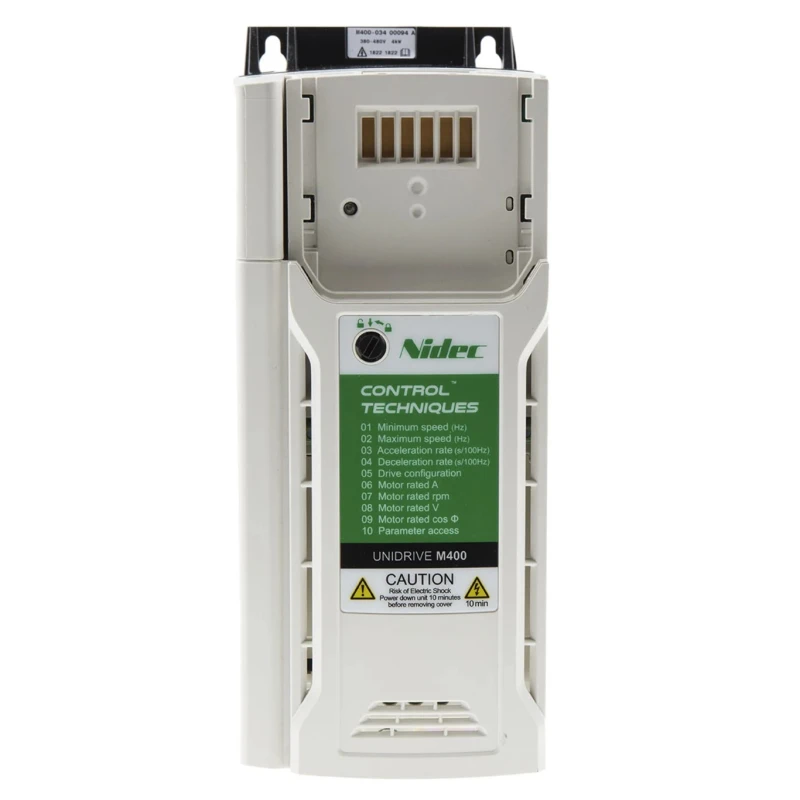

Control Techniques Inverter Drive 750 W 1, 3 Phase Vector Control Panel Mount M400-02200042A10100AB100

Free Delivery in India | Lowest Global Shipping Charges

Control Techniques Inverter Drive 750 W 1, 3 Phase Vector Control Panel Mount M400-02200042A10100AB100

Name: Control Techniques Inverter Drive 750 W 1, 3 Phase Vector Control Panel Mount M400-02200042A10100AB100
Brand: Control Techniques
SKU: 302799
Price: 849.13 USD
Availability: InStock



Category Inverter Drive Brand Control Techniques Condition New

Specifications

Country of Origin	China
Brand	Control Techniques
Model	M400-02200042A10100AB100
IP Rating	IP20
Drive Type	Vector Control
Mount Type	Panel
Overall Length	205mm
Series	M400
Overall Width	75mm
Power Rating	750W
Maximum Operating Temperature	40°C
Output Frequency	550Hz
Minimum Operating Temperature	-20°C
Interfaces	language, 3 line display aids set up and provides diagnostic information
Number of Phases	1, 3
Maximum Output Current	4.2A
Standards/Approvals	CE, TUV, SIL 3, RoHS, N1652, ISO, cULus
Maximum Supply Voltage	240V ac
Overall Depth	150mm
Minimum Supply Voltage	200V
Better World Claim	Saves Energy
Compatible Motor Type	Induction Motor

Key Features

Panel mount type suitable for compact installations.
Supports compatible induction motors with advanced vector control drive.
Operating voltage range from 200 V minimum to 240 V maximum AC.
Maximum output current of 4.2 amperes for reliable motor performance.
IP20 rated enclosure for protection against solid objects.
Operating temperature range from -20°C to 40°C for versatile environments.
Equipped with a multi-language 3-line LCD display for easy programming and diagnostics.
Complies with CE, TUV, SIL 3, RoHS, N1652, ISO, and cULus safety and quality standards.

Product Description

Control Techniques M400-02200042A10100AB100 inverter drive provides 750 watts power output, designed for 1 or 3 phase AC induction motors. Featuring vector control technology, this panel mount drive ensures efficient motor speed and torque regulation. It operates within a supply voltage range of 200 V to 240 V AC and can supply a maximum output current of 4.2 A, suitable for diverse industrial and commercial applications.

The compact dimensions of 205 mm length, 75 mm width, and 150 mm depth fit well into standard control panels. The IP20 rating protects internal components from solid particles without exposure to liquids, making it suitable for controlled indoor environments. Operating temperatures from -20°C up to 40°C allow for flexible installation conditions.

The M400 series is equipped with a user-friendly multi-language three-line LCD display and four navigation buttons that facilitate rapid setup and diagnostic review. Its onboard programmable logic controller (PLC) enables executing complex sequencing and logic programs, enhancing automation flexibility. Vector control and rotor flux control (RFC-A) algorithms provide precise motor control and improved stability across power ranges.

Certified to rigorous international safety and quality standards including CE, TUV, SIL 3, RoHS, N1652, ISO, and cULus, this inverter drive supports safe integration into systems requiring functional safety. It complies with Better World criteria by delivering energy savings and reducing environmental impact.

This drive's robust feature set and flexible interfacing options make it ideal for industrial automation, manufacturing machinery, HVAC systems, and process controls. The product is made in China, reflecting global manufacturing standards.

Panel mount for compact installations. Multi-language LCD display for setup and diagnostics. Onboard PLC for executing control programs. Vector and rotor flux control for motor stability. Comprehensive safety certifications for industrial compliance.
