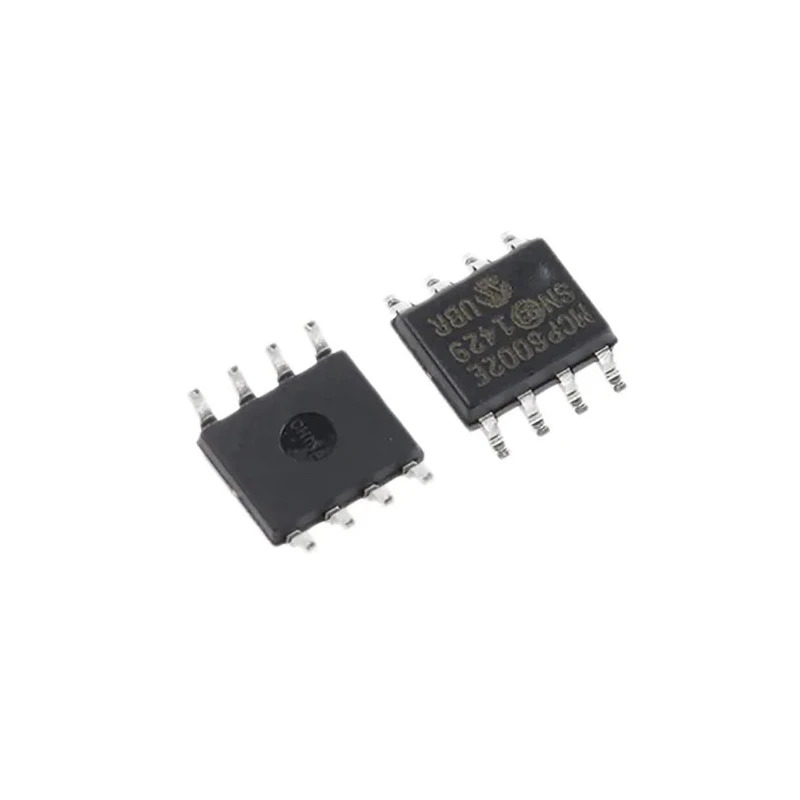

Microchip Operational Amplifier 1 MHz, Dual Channel, 8-Pin SOIC, 3V to 6V MCP6002-E/SN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.25mm |
| Length | 4.9mm |
| Model | MCP6002-E/SN |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | MCP6002 |
| Output Current | 23mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 19 pA |
| Vos - Input Offset Voltage | 4.5 mV |
| Slew Rate | 0.6V/μs |
| Input Offset Current | 1 pA |
| Microchip MCP6002-E/SN, Op Amp, RRIO, 1MHz, 3 V, 5 V, 8-Pin SOICBrand | Microchip |
Key Features
- Operates with a supply voltage range of 3V to 6V for flexible applications.
- Provides a gain bandwidth product of 1 MHz for accurate signal amplification.
- Features dual channels with 8 pins in a surface mount SOIC package.
- Includes low input offset voltage of 4.5 mV ensuring precision.
- Has a slew rate of 0.6 V/μs suitable for moderate-speed applications.
- Input bias current is low at 19 pA for minimizing circuit errors.
- Operating temperature range extends from -40°C to 125°C for industrial robustness.
- Output current capability of 23 mA supports driving loads effectively.
Product Description
Microchip MCP6002-E/SN is a dual-channel operational amplifier, designed to provide reliable and precise amplification in electronic circuits. Operating with a supply voltage between 3V and 6V, it features a gain bandwidth product of 1 MHz, making it suitable for a wide range of applications including signal conditioning, filtering and sensor interfacing.
The device is housed in an 8-pin SOIC surface mount package, providing compactness and ease of PCB integration. Its low input offset voltage of 4.5 mV and low input bias current of 19 pA ensure minimal signal distortion, crucial for precision analog designs.
With a slew rate of 0.6 V/μs and output current of up to 23 mA, this amplifier supports moderate speed and load driving capabilities. The broad operating temperature range from -40°C to 125°C makes it suitable for demanding environments, including industrial and automotive electronics (though it is not specifically automotive rated).
The MCP6002-E/SN complies with RoHS standards, assuring compliance with environmental regulations. This operational amplifier is ideal for use in industrial control systems, instrumentation, consumer electronics, and other applications requiring stable and accurate signal amplification.
Operates from 3V to 6V supply voltage. Gain bandwidth product of 1 MHz. Dual channel configuration in an 8-pin SOIC package. Input offset voltage of 4.5 mV and low bias current. Slew rate of 0.6 V/μs with 23 mA output current.
Wide operating temperature range from -40°C to 125°C. RoHS compliant for environmental safety. Explore Microchip brand components and Operational Amplifiers in EnvMart for quality electronic parts suited to various industrial, commercial, and research applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This operational amplifier operates with a supply voltage range of 3V to 6V, allowing for flexible application in various electronic circuits.
The MCP6002-E/SN features a gain bandwidth product of 1 MHz, which is suitable for accurate signal amplification in a variety of applications.
This operational amplifier is configured as a dual channel device, providing two amplification paths in a single package.
The input offset voltage of the MCP6002-E/SN is 4.5 mV, which helps ensure precision in signal amplification.
It has an output current capability of 23 mA, allowing it to effectively drive loads in various applications.
This operational amplifier operates within a temperature range of -40°C to 125°C, making it suitable for industrial environments.
The slew rate for this model is 0.6 V/μs, which is appropriate for moderate-speed applications.
It is housed in an 8-pin SOIC surface mount package, which allows for compact PCB integration.
The input bias current is low at 19 pA, which helps minimize circuit errors during operation.
Yes, this operational amplifier complies with RoHS standards, ensuring it meets environmental regulations.
The dimensions of this model are 4.9 mm in length, 3.9 mm in width, and 1.25 mm in height.
It is suitable for applications such as signal conditioning, filtering, and sensor interfacing in various electronic circuits.
