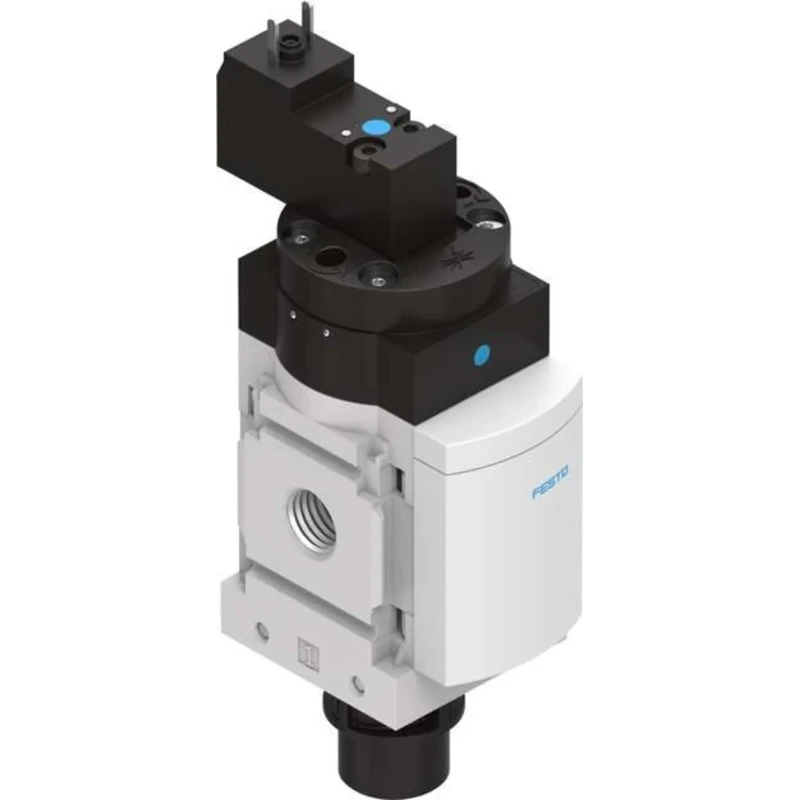

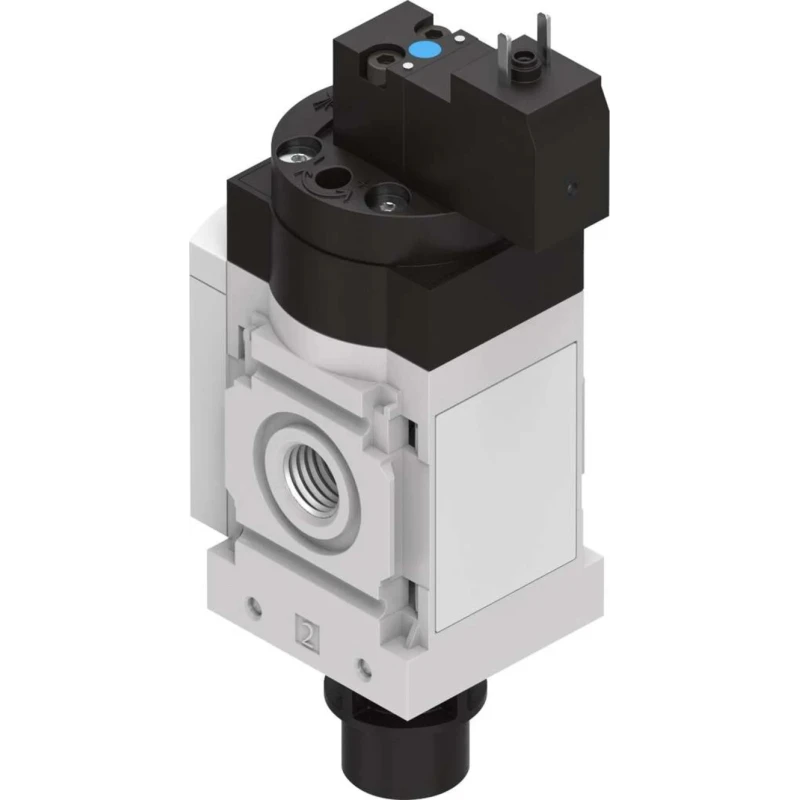

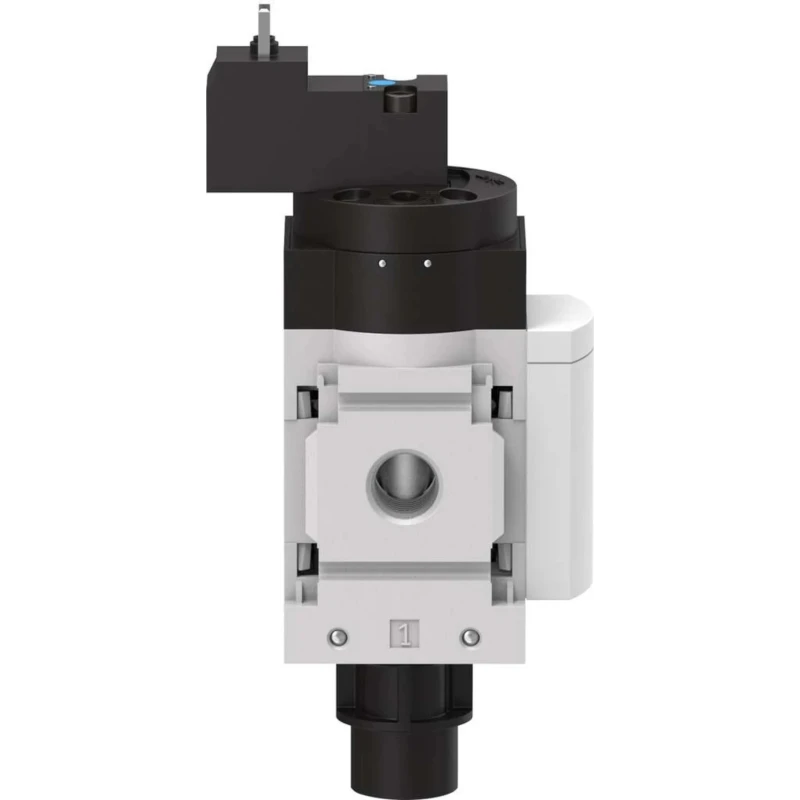

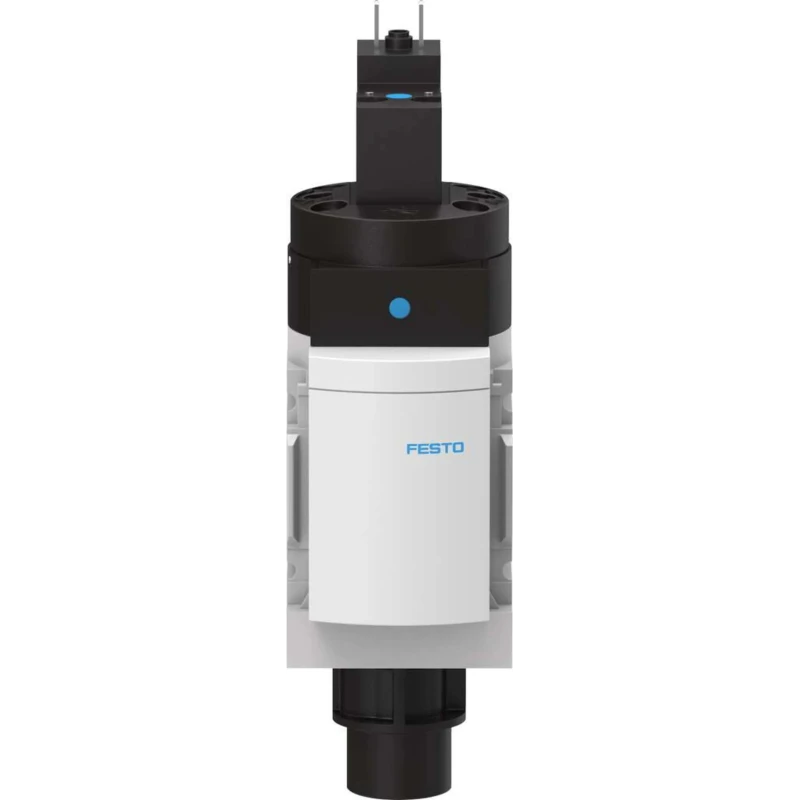

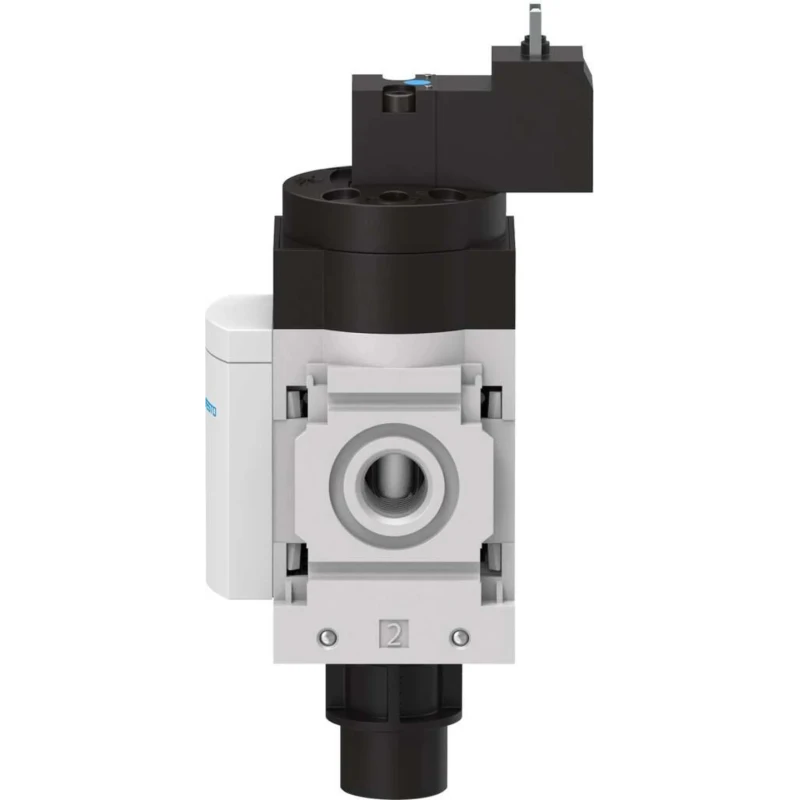

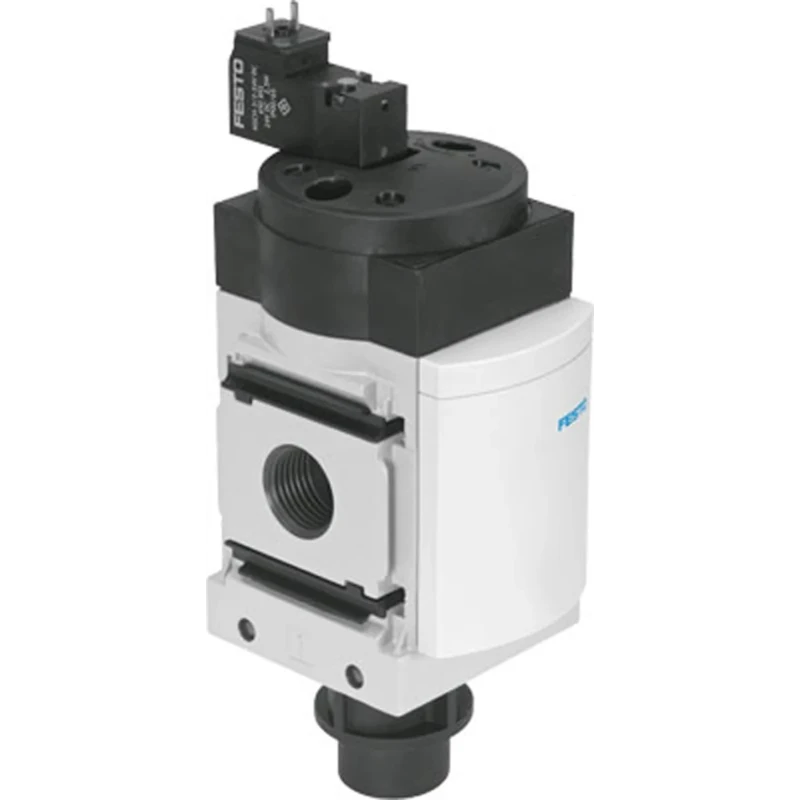

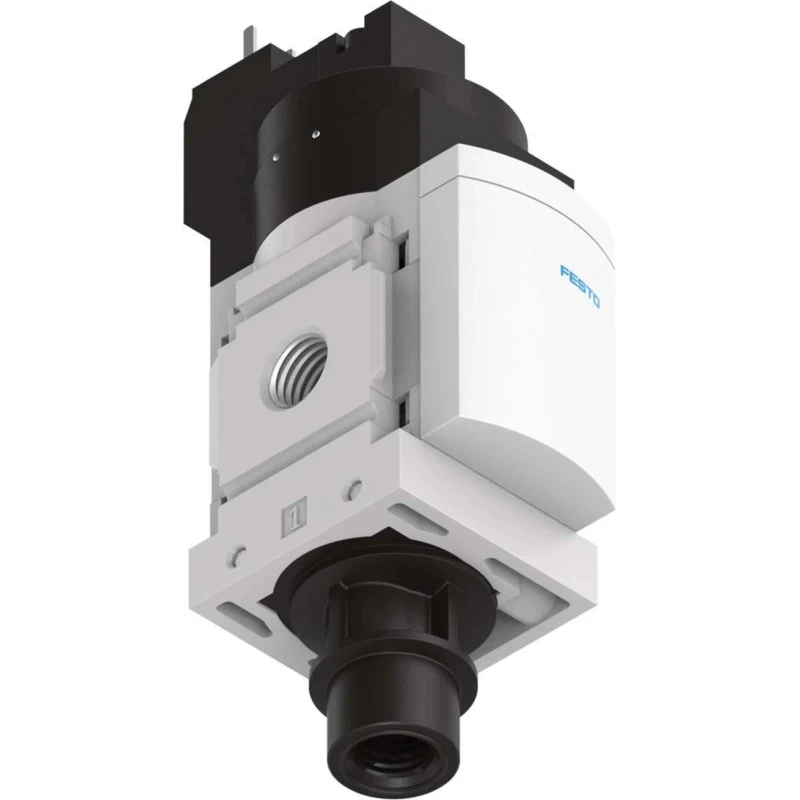

Festo Pneumatic Solenoid Valve 3/2 Electric G MS4 Series 24V DC 2.5W Aluminium Body MS4-EE-1/4-10V24

Festo MS4-EE-1/4-10V24 Pneumatic Solenoid Valve 3/2 Electric G MS4 Series 24V DC is a monostable piston gate valve designed for reliable pneumatic flow control in demanding industrial environments. This valve is engineered with a robust die-cast aluminium body that is corrosion resistant, making it suitable for applications exposed to damp and steamy conditions.

The valve operates using an electric solenoid powered at 24V DC with a low power consumption of 2.5W, ensuring energy-efficient operation. It controls the airflow direction effectively through its 3 ports and 2 position 3/2 valve function, delivering high performance with a maximum flow rate of 2000L/min and maximum operating pressure up to 10 bar.

Designed for versatile mounting, this valve can be installed in any orientation using its bracket mount type, equipped with G1/4 threaded female ports compatible with standard pneumatic fittings. It maintains performance across a broad temperature range from -10°C to +50°C, and features Nitrile Rubber (NBR) seals that resist abrasion and prevent leakage in vibrating or accident-prone environments.

The valve meets IP65 rating standards, protecting it against dust ingress and low-pressure water jets from all directions, enhancing its suitability for industrial automation, manufacturing equipment, and air tool systems.

Additional features include a pilot pressure requirement of 4 to 10 bar and compliance with RoHS and cULus standards, assuring safety and environmental adherence. The valve features a corrosion-resistant aluminium body with nitrile rubber (NBR) seals for durability.

Operates with a 24V DC electric actuation and consumes 2.5W power. 3-port, 2-position 3/2-way valve design suitable for precise airflow control. Max operating pressure is 10 bar with flow rate up to 2000L/min, supporting medium-duty pneumatic systems.

Mountable in any position with bracket mount type and G1/4 threaded female ports for compatibility. Suitable for harsh environments with operating temperature range from -10°C to +50°C and IP65 dust and water protection rating.

Pilot pressure ranges from 4 to 10 bar for effective valve response. Certified to RoHS and cULus standards ensuring safety and compliance.

This valve is widely used in industrial automation, manufacturing equipment, and air tools where reliable pneumatic control is critical for operational efficiency. Browse EnvMart to explore additional Pneumatic Solenoid Valves and related fluid control products from Festo and other trusted manufacturers.
