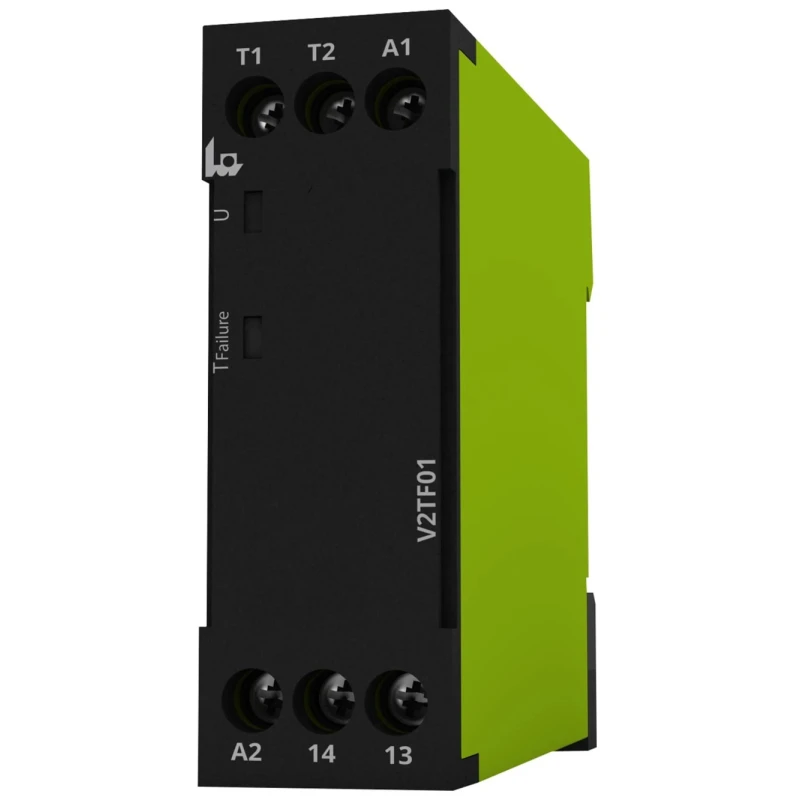

Tele Temperature Monitoring Relay 1 Phase 240 V dc 240 V ac V2TF01

Tele V2TF01 is a temperature monitoring relay specialized for one-phase motor winding temperature protection, operating with supply voltages of 240 V dc and 240 V ac. It is part of the VEO series known for reliable fault detection and mechanical latch features for temperature sensors used in industrial electrical applications.

This relay offers short circuit monitoring of the thermistor sensor circuit, enhancing safety by detecting wiring faults. It integrates a test function with a manual reset key, making it user-friendly for maintenance and testing purposes.

The device features a single change over (SPDT) contact, suitable for signaling or control tasks in automated systems. Built with a self-extinguishing plastic housing, it has an IP40 ingress protection rating, protecting against solid objects greater than 1 mm but not water.

Mounting is convenient via a standard DIN rail, supported by screw terminals for secure electrical connections. LED indicators provide visual status monitoring during operation.

The relay parameters include optional evaluation of one thermal contact, and the rated isolation voltage on the sensor circuit is up to 690 V, ensuring electrical safety and compatibility with a wide range of industrial sensors.

This product complies with IEC 61000-6-2, IEC 61000-6-4, and IEC 60947-5-1 standards, making it suitable for rigorous industrial environments. The operating temperature range is -60°C to 60°C to fit diverse ambient conditions.

Equipped with short circuit monitoring for thermistor line to ensure sensor integrity. Features integrated test and reset key for user convenience. Single change over contact provides reliable switching performance. Self-extinguishing plastic housing rated at IP40 protection.

DIN rail mounting with LED indicators and screw terminals. Optional evaluation of one thermal contact for flexible monitoring. Rated isolated voltage on sensor circuit up to 690 V for safety. Operates within temperature range of -60°C to 60°C reliably.

This Tele temperature Monitoring Relay is ideal for electrical automation in industrial motor protection, HVAC systems, manufacturing plants, and other commercial applications requiring precise thermal monitoring and fault detection.
