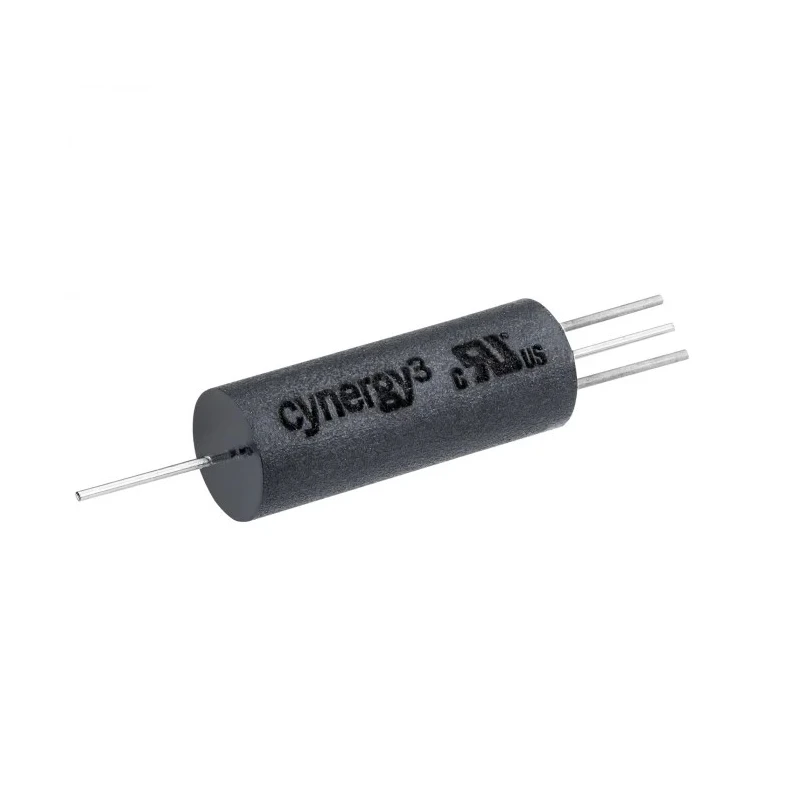

Cynergy3 PCB Reed Relay, 5V DC Coil, SPST Contact Configuration, 350V DC Max, 1A Max, 160 Ω Coil Resistance

The Cynergy3 S2-05EU/RS PCB Reed Relay is a highly reliable single-pole single-throw (SPST) reed relay designed for applications requiring a compact, PCB mountable relay option.

This relay operates on a 5V DC coil and provides a maximum switching voltage of 350V DC with a current capacity of 1A. The coil resistance of 160 Ω ensures stable coil power consumption and responsiveness.

Featuring axial terminal type and flexible lead-out wires, the S2-05EU/RS allows versatile mounting positions, ideal where PCB mounting is possible but orientation flexibility is required.

With an operating temperature range from -40°C to 85°C, this relay suits a variety of industrial and electronic control applications. The relay’s operating time is extremely fast at 1 ms, making it suitable for precise switching needs.

Coil voltage: 5V DC with 160 Ω coil resistance. Contact configuration: SPST, rated for 1A maximum current and 350V DC maximum voltage. Low contact resistance of 100 mΩ ensuring excellent conductivity. Isolation between coil and contacts withstands 1 kV DC, providing safety and noise immunity.

Dimensions: length 22.86 mm, height 4 mm, compact design for space-saving installations. Non-latching operation for reliable switching in various circuits.

Originating from the United Kingdom, this Cynergy3 relay is manufactured under UL standards and certified for quality and safety compliance. Its robust design makes it suitable for use in electronics automation, control systems, instrumentation, telecommunications, and industrial equipment.

Choose Cynergy3 S2-05EU/RS PCB Reed Relay for dependable performance in your electrical relay applications requiring precision, compactness, and safety. Explore more relays and signal conditioning products from EnvMart's extensive catalogue for your commercial and industrial needs.
