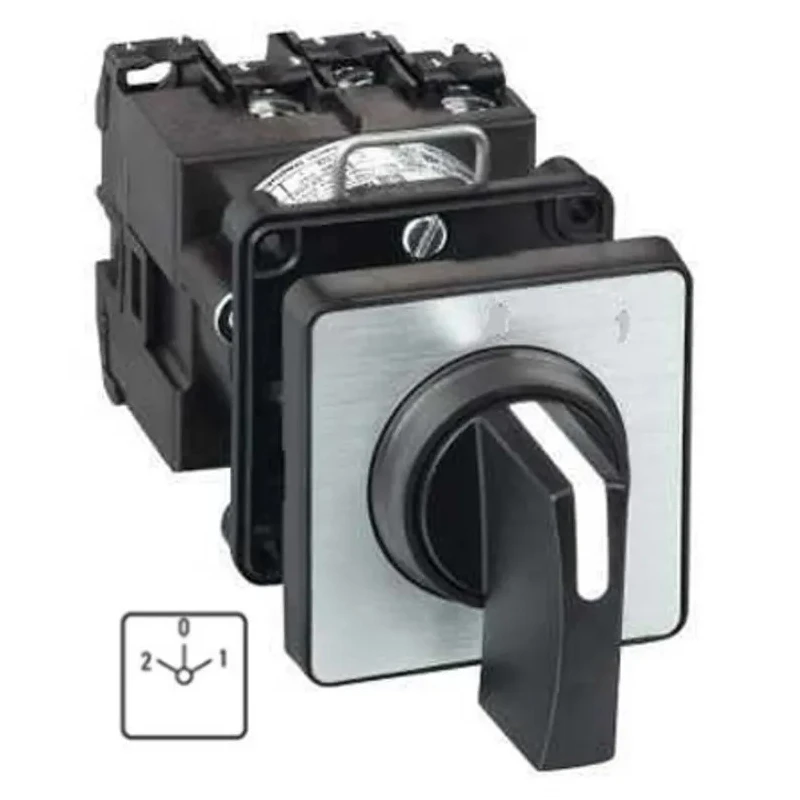

Schneider Electric Harmony K Series 3 Phase 2 Position Cam Switch with Black Handle 12A, 45° Angle of Throw K1D002UCH

Free Delivery in India | Lowest Global Shipping Charges

Schneider Electric Harmony K Series 3 Phase 2 Position Cam Switch with Black Handle 12A, 45° Angle of Throw K1D002UCH

Name: Schneider Electric Harmony K Series 3 Phase 2 Position Cam Switch with Black Handle 12A, 45° Angle of Throw K1D002UCH
Brand: Schneider Electric
SKU: 300965
Price: 6382.81 INR
Availability: InStock



Category Cam Switch Brand Schneider Electric Condition New

Specifications

Country of Origin	India
Brand	Schneider Electric
Length	45mm
Model	K1D002UCH
Depth	50mm
IP Rating	IP65
Width	45mm
Mount Type	Front
Series	Harmony K
Maximum Operating Temperature	55°C
Actuator Type	Black Handle
Number of Positions	2
Minimum Operating Temperature	-25°C
Terminal type	Screw
Electrical Phase	3
Number of Poles	2
Mechanical Life	1000000Cycles
Contact Voltage	690V ac
Contact Current	12A
Angle of Throw	45 °

Key Features

Features a durable black handle actuator designed for precise control at a 45° angle of throw.
Rated for a contact current of 12A and contact voltage up to 690V ac.
Constructed for use in 3-phase electrical systems with 2 poles and 2 positions.
Includes front mounting with screw terminal type for secure installations.
IP65 rated for protection against dust and water ingress, suitable for harsh environments.
Operates reliably in temperatures ranging from -25°C to 55°C.
Mechanical life rated at 1,000,000 cycles ensuring long-term durability.
Complies with multiple standards including CENELEC EN 50013 and IEC 60947 series for safety and performance.

Product Description

Schneider Electric K1D002UCH Cam Switch from the Harmony K Series is engineered for industrial and electrical automation applications requiring reliable 3-phase switching with 2 positions and 2 poles. It features a black handle actuator designed for a 45° angle of throw, offering precise mechanical operation and ease of use.

This cam switch supports a contact current rating of 12 amps and contact voltage of 690 volts AC, making it suitable for moderate power control tasks. Designed to be front mounted with screw terminals, the device ensures safe and stable connections in electrical panels.

With an IP65 ingress protection rating, the switch is resistant to dust and water sprays, enabling it to function effectively in challenging industrial environments. The operating temperature range from -25°C to 55°C allows deployment in various climates without performance degradation.

The mechanical lifespan is rated at one million cycles, reflecting excellent durability and reliability for continuous industrial use. It complies with stringent standards including CENELEC EN 50013, EN 60947-3, EN 60947-5-1, IEC 60947-3, and IEC 60947-5-1, assuring users of its quality and safety credentials.

Durable black handle actuator for precise switching at 45° throw angle. Contact current rating of 12A and voltage rating of 690V AC. Two position, two pole configuration for 3-phase electrical applications. Front mounting with screw terminals for secure installation.

IP65 protection against dust and water ingress. Wide operating temperature range from -25°C to 55°C. Mechanical life of 1,000,000 cycles for long-lasting operation. Compliance with international safety and performance standards.

Compact: 45mm width, 45mm length, 50mm depth dimensions. This Cam Switch is ideal for industrial, manufacturing, electrical panels, and automation control applications requiring high reliability and safety standards. Browse other Schneider Electric switches and related automation components in EnvMart’s extensive catalog for comprehensive industrial electrical solutions.
