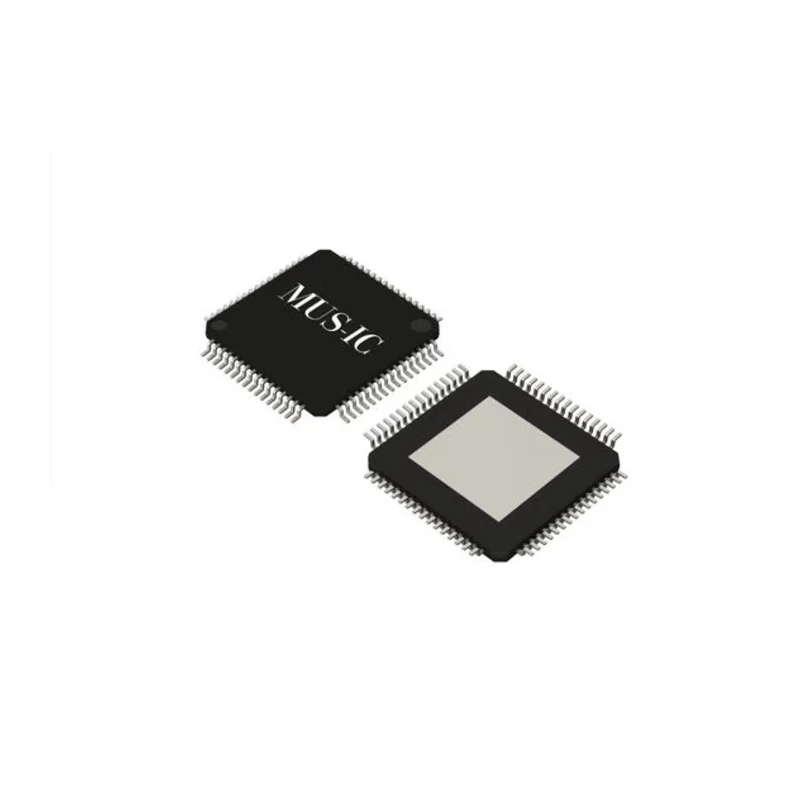

ROHM Audio Converter DAC 32 bit 2-Channel 2 Wire Interface 768 kHz Sampling Rate 64-Pin HTQFP64BV BD34301EKV-E2
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 32 bit |
| Brand | ROHM |
| Height | 1mm |
| Model | BD34301EKV-E2 |
| Width | 12mm |
| Sampling rate | 768kHz |
| Series | MUS-IC |
| Maximum Operating Temperature | 85°C |
| Package Type | HTQFP64BV |
| Minimum Operating Temperature | -25°C |
| Number Of Channels | 2 |
| Interface Type | 2 Wire |
| Standards/Approvals | RoHS |
| Pin Count | 64 |
| Maximum Supply Voltage | 5.5V |
Key Features
- Supports 32-bit resolution ensuring detailed audio output.
- Dual channel operation enables stereo audio support.
- Utilizes 2-wire interface for efficient integration.
- Features 64-pin HTQFP64BV package for compact PCB design.
- Operates within -25°C to 85°C temperature range for industrial usage.
- Maximum supply voltage up to 5.5 V for broad compatibility.
- Incorporates ROHM MUS-IC series technology for superior sound quality.
- Selectable digital FIR filters allowing choice between Sharp Roll-Off and Slow Roll-Off.
Product Description
ROHM BD34301EKV-E2 is a professional 32-bit high sound quality stereo audio Digital to Analogue Converter designed with ROHM's original sound quality technology. It operates with a 2-wire interface and supports a maximum sampling rate of 768 kHz, making it ideal for high-end audio applications in industrial, commercial, and laboratory audio equipment.
The device features a 64-pin HTQFP64BV package, measuring 12 mm in width and 1 mm in height, suitable for compact integration on PCBs. It supports selectable digital FIR filters, enabling users to switch between Sharp Roll-Off and Slow Roll-Off filters based on audio preference.
This audio DAC supports stereo (2-channel) and mono (1-channel) modes, and it operates safely within a temperature range from -25°C to 85°C and a maximum supply voltage of 5.5 V. The product complies with RoHS environmental standards, ensuring it is safe for use in environmentally sensitive applications.
Supports 32-bit audio resolution and 2 audio channels. Sampling frequency range from 32 kHz to 768 kHz. DSD playback available at 2.8 MHz, 5.6 MHz, 11.2 MHz, and 22.4 MHz. Selectable 4 device addresses (38h, 3Ah, 3Ch, 3Eh) for flexible I2C communication.
RoHS compliant ensuring environmental safety and industry standards adherence.
This DAC is suitable for use in electronic components manufacturing, high fidelity audio devices, industrial automation audio processing, and laboratory audio measurement systems. It is part of the ROHM MUS-IC series targeted at delivering superior sound quality with excellent signal to noise ratio (130 dB typical) and total harmonic distortion plus noise (THD+N) of -115 dB typical.
EnvMart offers this product for professionals looking for high-performance digital to analogue conversion technology integrated into compact form factor packages with advanced sound handling capabilities.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum sampling rate of this DAC is 768 kHz, making it suitable for high-end audio applications.
This model supports a resolution of 32 bits, ensuring detailed audio output.
It supports dual channel operation, enabling stereo audio output.
The operating temperature range is from -25°C to 85°C, suitable for industrial usage.
The maximum supply voltage for this DAC is 5.5 V, allowing broad compatibility with various systems.
It utilizes a 2-wire interface for efficient integration into systems.
The DAC comes in a 64-pin HTQFP64BV package, which is compact for PCB design.
Yes, it features selectable digital FIR filters, allowing users to choose between Sharp Roll-Off and Slow Roll-Off.
The dimensions are 12 mm in width and 1 mm in height.
Yes, this DAC complies with RoHS environmental standards, ensuring it is safe for use in environmentally sensitive applications.
It is suitable for use in electronic components manufacturing, high fidelity audio devices, industrial automation audio processing, and laboratory audio measurement systems.
The typical signal to noise ratio is 130 dB, which contributes to its high sound quality.
