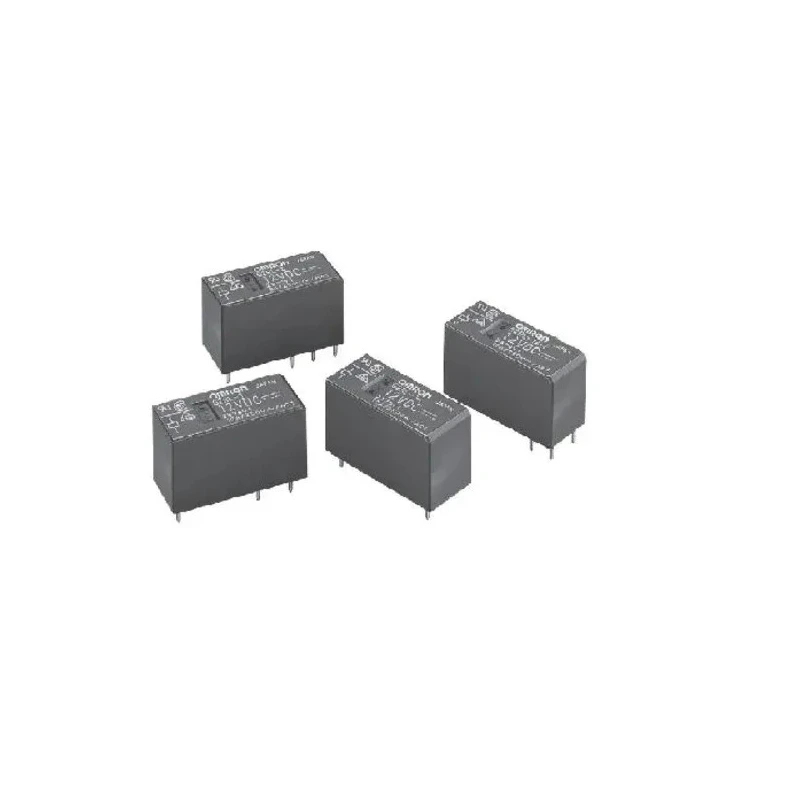

Omron Power Relay PCB Mount DPST 12V DC Coil, 1A Switching Current G2RL-2A DC12

Omron G2RL-2A DC12 power relay offers reliable performance for high current load switching and is suitable for use in demanding ambient temperature environments. This relay features a DPST contact configuration, providing dual switch functionality with a single coil control.

The coil voltage is 12 volts DC with a coil resistance of 360 ohms resulting in a coil current of approximately 33.3 mA. The relay coil power consumption is an energy-efficient 400 milliwatts, reducing power usage during operation.

Designed specifically for PCB mounting, the relay includes screw terminal connections to ensure secure and stable installation. It can switch currents up to 1 ampere with a maximum AC voltage rating of 240 volts and DC voltage rating of 60 volts, making it versatile for a range of electronic applications.

The relay is constructed with silver alloy contacts and exhibits contact resistance as low as 100 milliohms, contributing to long-term durability and reliable switching. Operating temperature range from -40°C to 70°C meets the requirements for industrial and commercial electrical systems.

This device complies with RoHS (Restriction of Hazardous Substances) standards, ensuring environmentally friendly manufacturing practices. Its compact size, measuring 50 mm long, 10 mm wide, and 15 mm high, enables easy integration into varied electrical assemblies.

Applications for this power relay include industrial control systems, electrical automation, signal conditioning, and other electronic hardware requiring reliable switching control at moderate voltages and currents.

The relay features a DPST (Double Pole Single Throw) contact configuration. Coil voltage is rated at 12 volts DC with 360 ohms coil resistance. This model switches up to 1 ampere of current with a maximum AC voltage of 240V and DC voltage of 60V.

It is designed for PCB mounting with screw terminal connections. The relay operates reliably in temperatures from -40°C to 70°C. Coil power consumption is 400 milliwatts for efficient operation. Constructed with silver alloy contact material for durability and low contact resistance.

Complies with RoHS environmental standards. Compact dimensions: 50mm length, 10mm width, and 15mm height. Manufactured in Malaysia to ensure consistent quality.
